Specifications
| Wireless | IEEE 802.11a/b/g/n/ac/ax; 2.4 GHz and 5 GHz |
|---|---|
| Maximum Wi-Fi link rates | 574 Mbps at 2.4 GHz; 2401 Mbps at 5 GHz (AX3000 class) |
| Ethernet | 1 × 10/100/1000BASE-T LAN/WAN RJ45 |
| Antennas | Built-in omnidirectional 2 × 2 MIMO; 5 dBi at 2.4 GHz and 7 dBi at 5 GHz |
| Wireless features | OFDMA, MU-MIMO, up to 8 SSIDs (4 per band) |
| Security | WPA2/WPA3 Personal (AES) |
| Modes | Gateway, repeater, access point |
| Power | IEEE 802.3at PoE+; power supply not included |
| Consumption | Under 16 W |
| Protection | IP67-rated weatherproof enclosure |
| Management | Web GUI |
| Mounting | Pole; hose clamp included |
| Dimensions | 230 × 107 × 38 mm |
| Product weight | 1.3 kg |
| Operating environment | −20–50 °C; 10–90% RH |
| Included | Access point, IP67 nylon cable gland, pole hose clamp, RJ45 cable, quick guide, declaration of conformity |
Key Features
- Extend Wi-Fi 6 outdoors with a weatherproof IP67 enclosure.
- Use the included hose clamp for pole mounting.
- Serve multiple clients with OFDMA and MU-MIMO.
- Segment traffic across up to eight SSIDs and use WPA3 Personal.
- Supply power through an IEEE 802.3at compatible PoE+ connection.
Product Information

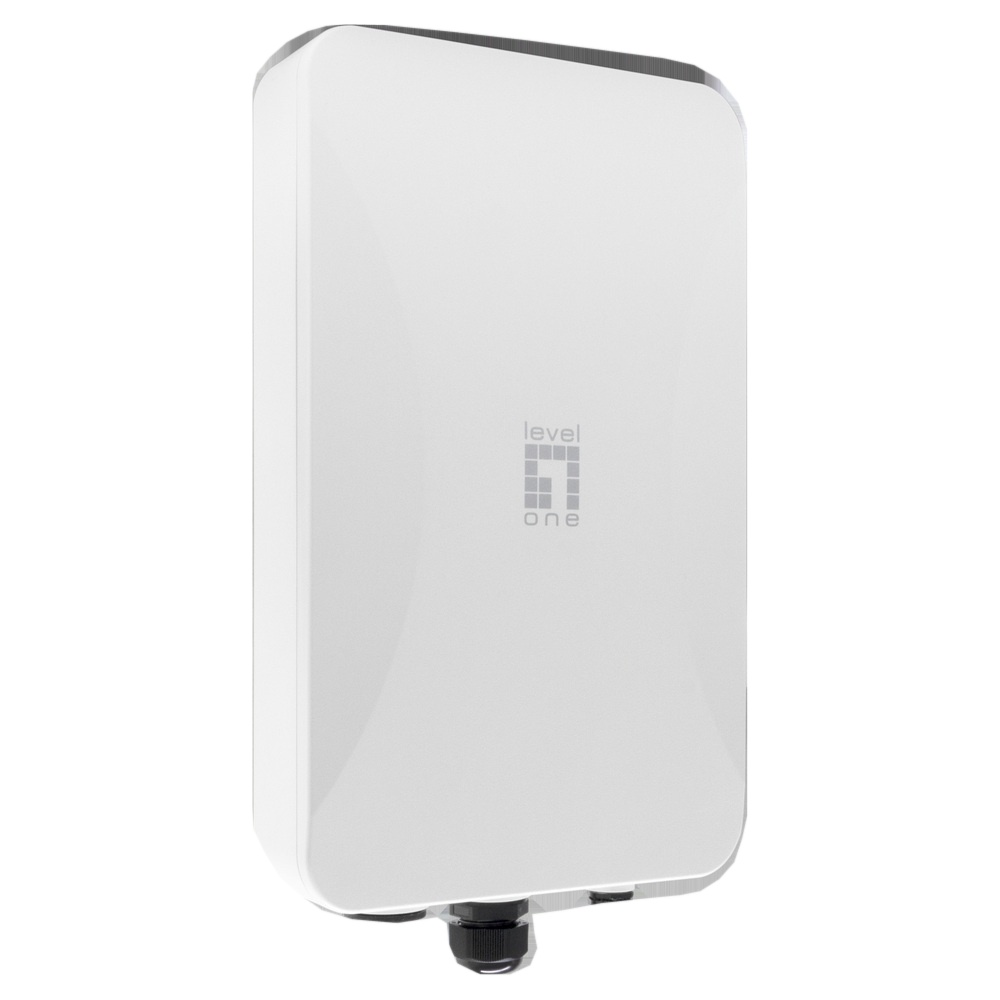

The WAB-8021 is an outdoor access point with an IP67 enclosure and omnidirectional built-in antennas. Its Gigabit LAN/WAN port accepts IEEE 802.3at PoE+ power; no separate power supply is included. The included cable gland and pole clamp support an appropriate weatherproof installation. AX3000 is a combined theoretical wireless link class, and outdoor coverage varies with mounting, terrain, interference and clients.
