Specifications
| Brand / origin | Level One / Germany |
|---|---|
| Model | FVT-2001 |
| Documented hardware revision | 1 |
| Copper interface | 1 × 10/100BASE-TX RJ45; auto MDI/MDI-X and auto-negotiation |
| Fiber interface | 1 × 100BASE-FX multimode duplex SC; 50/125µm or 62.5/125µm fiber |
| Optical wavelength | 1310 nm |
| Maximum fiber distance | 2 km |
| Transmission | Store and forward by default |
| Frame support | Up to 1.6 KB |
| Link functions | Link Fault Pass-through; IEEE 802.3x flow control |
| Configuration | DIP switches for LFP, transmission mode, copper negotiation, speed and duplex |
| Power input | 5V DC, 1A |
| Dimensions (W × D × H) | 71 × 94 × 26 mm |
| Operating environment | −10–55°C; 5–90% RH, non-condensing |
| Storage temperature | −40–75°C |
| Mounting | Desktop or compatible CVH-2000 chassis |
| Included | Converter, power adapter, quick installation guide |
| Optional | CVH-2000 media converter chassis |
| Net product weight | 0.42 kg |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Bridge Fast Ethernet copper equipment to a multimode SC fiber link.
- Extend a suitable optical link up to 2 km.
- Detect link loss with Link Fault Pass-through.
- Adjust copper link behavior using the built-in DIP switches.
- Use the included adapter for desktop deployment or a compatible optional chassis.
Product Information

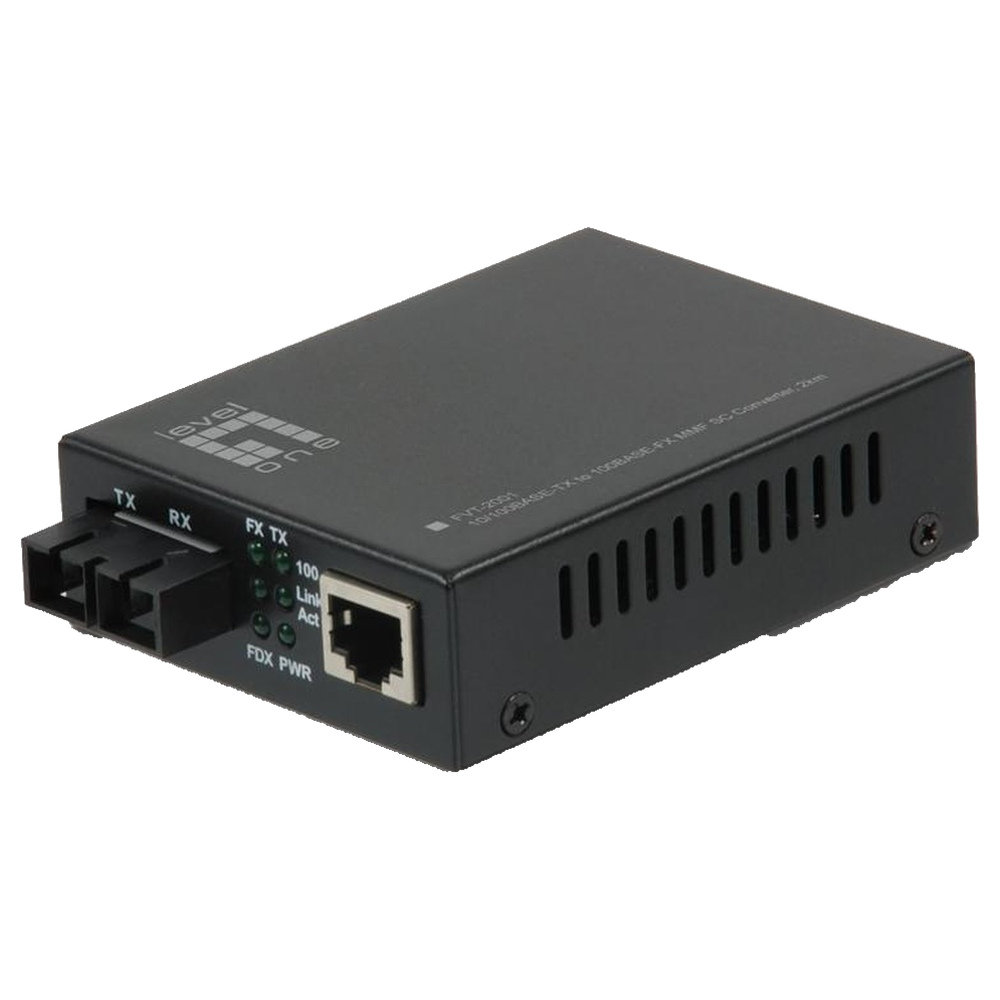

FVT-2001 extends a 10/100Mbps copper Ethernet connection over multimode fiber. It is suitable for linking network segments where copper cabling cannot cover the required distance. The SC optical interface uses 1310 nm optics; the FVT-2001EF variant uses a different wavelength and is not represented by these specifications. Match the fiber type and far-end optical equipment, and use the included adapter for standalone operation.
