Specifications
| Copper interface | 10/100BASE-TX RJ45 |
|---|---|
| Fiber interface | 100BASE-FX SC single-mode, 1310 nm, up to 40 km |
| Fiber wavelength | 1310 nm |
| Link features | Link Fault Pass-through and DIP switch configuration |
| Frame support | Up to 1.6 KB packets |
| Management | Unmanaged |
| PoE | Not supported |
| Power | 5 V DC, 1 A; adapter included |
| Dimensions | 94 × 71 × 26 mm |
| Product weight | 0.174 kg |
| Operating environment | −10–55 °C; 5–90% RH |
| Mounting | Desktop |
| Included | Converter, power adapter, quick installation guide |
Key Features
- Extend a Fast Ethernet connection over single-mode fiber up to 40 km.
- Connect copper RJ45 equipment to an SC optical link.
- Use Link Fault Pass-through for faster link diagnosis.
- Configure link behavior with the built-in DIP switches.
- Install on a desk using the supplied 5 V power adapter.
Product Information

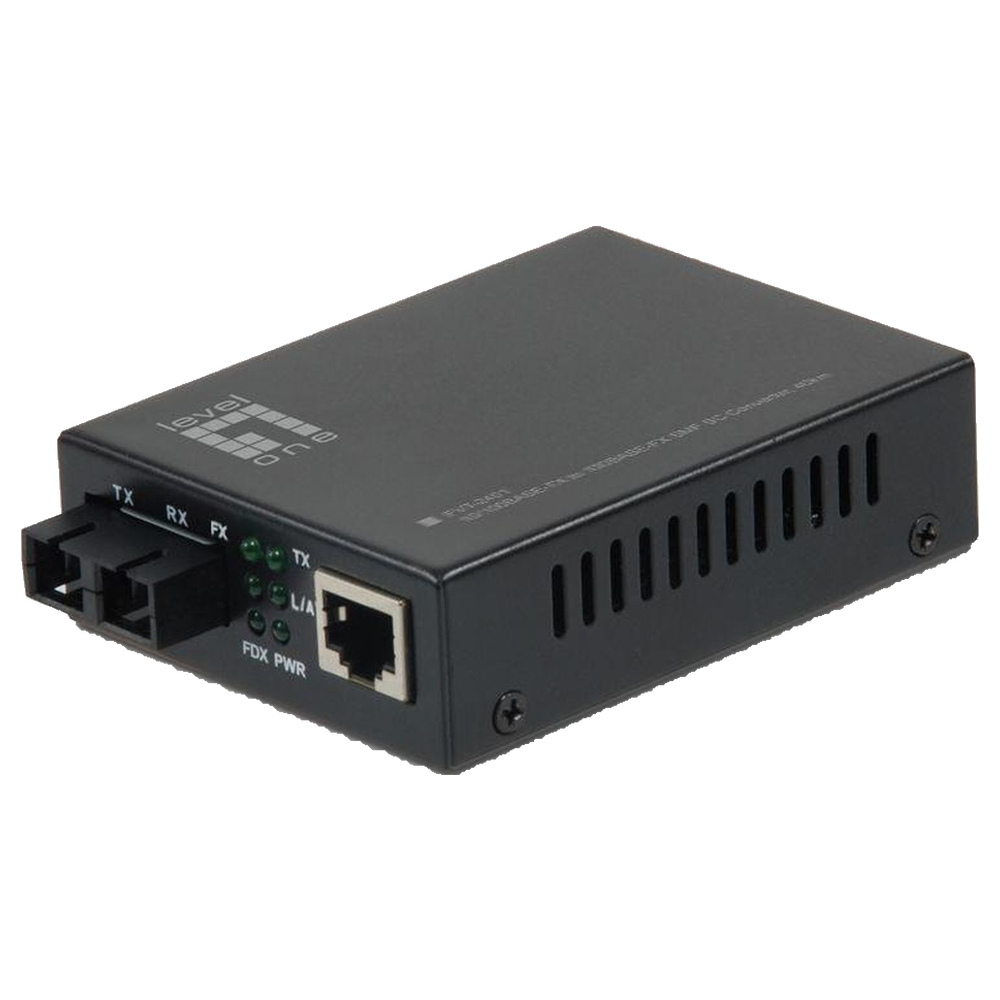

FVT-2401 bridges a 10/100 Mbps copper Ethernet link to a 100 Mbps single-mode SC fiber link for long-distance installations. The stated 40 km optical reach depends on suitable fiber and a compatible far-end device. It is an unmanaged converter with an included power adapter and no PoE support. Its compact form suits desktop placement.
