Specifications
| Model | POR-0120 |
|---|---|
| Network data rate | 10/100/1000 Mbps |
| Connections | One PoE input, one PoE output and one data-only RJ45 output |
| Additional reach | Up to 100 m per supported segment |
| Cascadable | Yes, subject to upstream PoE power and cable limits |
| Power consumption | Up to 2.5 W |
| Local supply | No external power supply required |
| Dimensions | 90 × 120 × 80 mm (manufacturer listing) |
| Product weight | 0.40 kg |
| Operating temperature | 0 °C to 50 °C |
| Operating humidity | 5% to 95% RH |
| Package contents | POR-0120 repeater |
Key Features
- Extend Gigabit Ethernet and compatible PoE power by another network segment.
- Connect a PoE device and a separate data-only device through hybrid outputs.
- Cascade compatible repeaters when the source power budget allows.
- Deploy without a local electrical outlet or configuration software.
- Retain 10/100/1000 Mbps data compatibility across the link.
Product Information

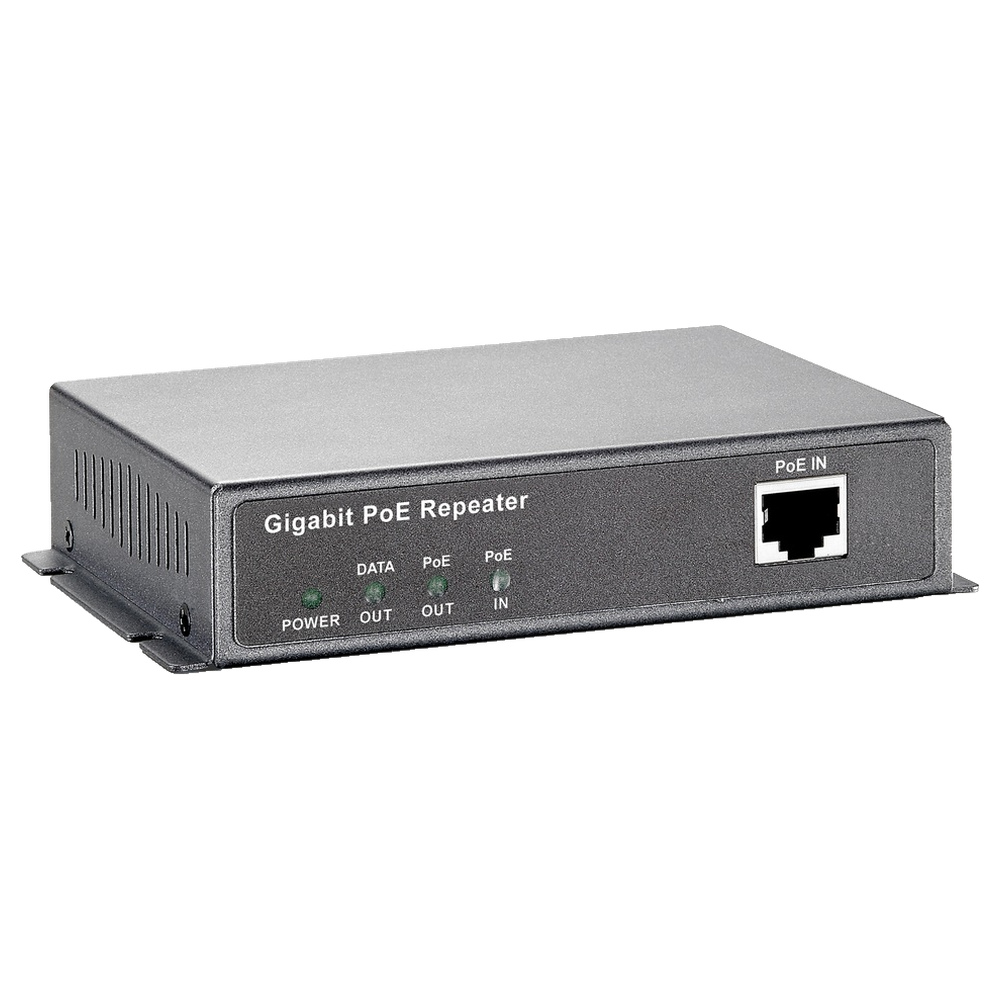

The Level One POR-0120 repeats a powered Gigabit Ethernet link to reach compatible devices beyond a standard cable segment. Its hybrid outputs serve one PoE device and one data-only device. It is powered from upstream PSE equipment and can be cascaded, although the achievable number of stages depends on input power, cable loss and downstream device load; do not assume unlimited reach. Check the powered device’s requirements before deployment. The manufacturer lists the repeater as the package content and does not list a separate power adapter.
