Specifications
| Brand headquarters / origin | Level One / Germany |
|---|---|
| Model | GVT-2001 |
| Documented hardware revision | 2 |
| Color | Black |
| Fiber Optical Mode | Multi-Mode |
| PoE Supported | No |
| Manageable | No |
| Grade | Commercial |
| Data Rate | 1Gbps |
| Indicators | PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act |
| Power supply included | Yes |
| Standard | IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.3z 1000Base-SX/LX, |
| Transmission Method | Store and forward (Default) |
| Wavelength (nm) | 850 |
| Operating humidity | 5% RH ~ 90% RH |
| Operating temperature | -10°C ~ 55°C |
| Package Contents | GVT-2001, Netzadapter, Quick Installation Guide |
| Copper interface | 1 × 10/100/1000Mbps RJ45 port |
| Link functions | Link Fault Pass-through and IEEE 802.3x flow control |
| Configuration | Built-in DIP switches; follow the exact device switch labels |
| Fiber reach | 550m |
| Fiber interface | Multimode SC, 1000BASE-SX |
| Maximum Ethernet frame | 9000 bytes, as specified for the Gigabit converter in the linked guide |
| Power input | 5V DC, 2A |
| Net product weight | 0.42 kg |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Bridge copper Ethernet equipment to multimode SC fiber.
- Extend the optical link up to 550m with matching far-end equipment.
- Propagate link faults to help identify a broken copper or fiber connection.
- Use the built-in indicators to check power and link activity.
- Deploy as a standalone converter with the listed power adapter.
Product Information

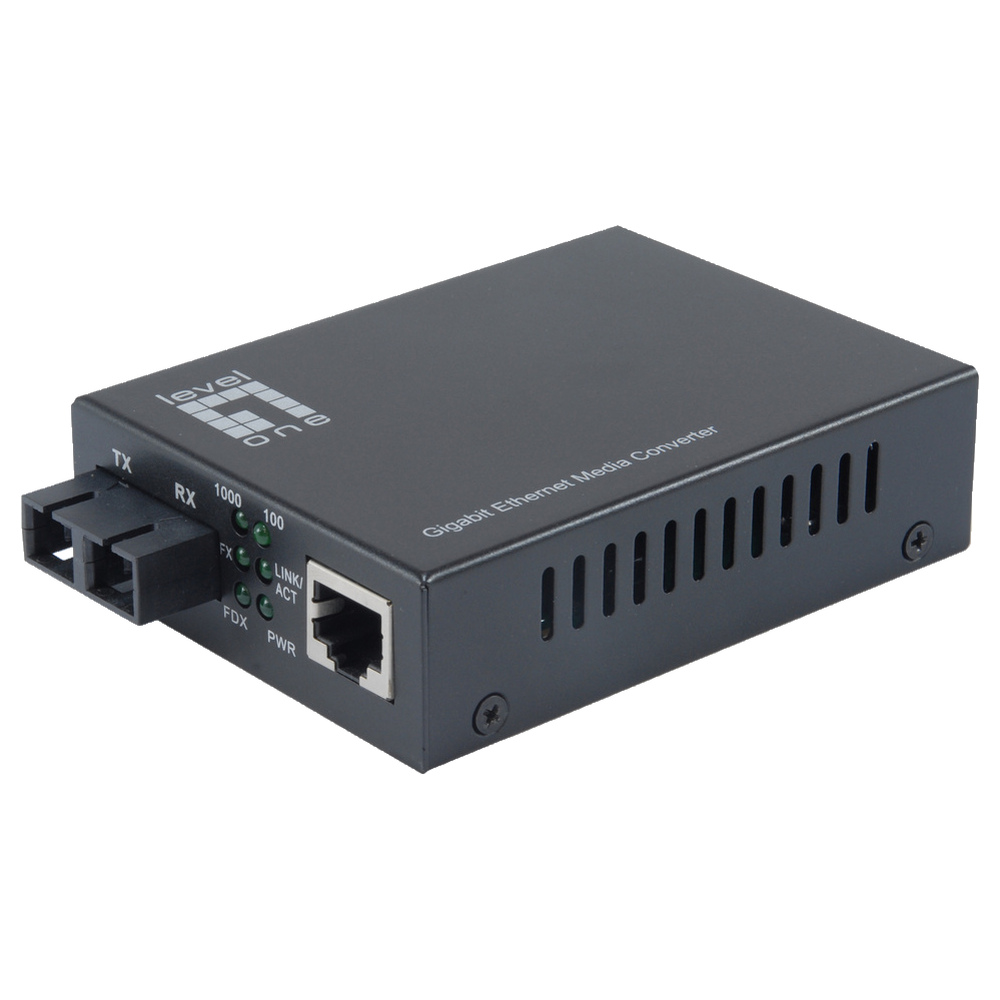

GVT-2001 connects a copper Ethernet device to multimode SC fiber. The fixed optical interface supports up to 550m under suitable fiber-link conditions. Auto-negotiation on the copper side and the documented link-fault functions support straightforward integration into a suitable network.
Match the fiber type, connector, wavelength and far-end interface before installation. The copper and optical sides must operate within the converter capabilities; a media converter does not add PoE power to the link. The official package lists a power adapter and quick installation guide. Fiber cabling and the far-end equipment are separate items.
