Specifications
| Brand headquarters / origin | Level One / Germany |
|---|---|
| Model | GVT-2013 |
| Documented hardware revision | 2 |
| Power consumption | 33 W (PoE full loading) |
| Color | Black |
| Dimensions (W x D x H) | 71 x 94 x 26 mm |
| Fiber Optical Mode | Multi-Mode |
| Media Interface | RJ45 to MMF SC |
| PoE Supported | Yes |
| Manageable | No |
| Grade | Commercial |
| Data Rate | 1Gbps |
| Indicators | ● PWR (Power supply) ● FX (Optical link action) ● 1000 (TP cable rate1000M) ● 100 (TP cable rate 100M) ● L/A (TP cable packet forwarding action) ● FDX (TP full duplex operation) |
| Jumbo frame (KB) | 9 |
| Mount | Desk mount |
| MTBF | 400,000 hours |
| Port Configuration | 1x 10/100/1000 Ethernet PoE+ port, 1x 1000BASE-SX SC Fiber port |
| Power input | 52VDC, 1.25A 65W |
| Power Output | ● PoE 48V(802.3at) with 30W power budget ● Pin assignment and polarity : 1/2(+), 3/6(-) |
| Power supply | 100-240 V, 50-60 Hz, 2A (Power adapter with power cord ) |
| Power supply included | Yes |
| Standard | ● IEEE802.3 10Base-T ● IEEE802.3u 100Base-TX ● IEEE802.3ab 1000Base-T ● IEEE802.3z 1000BASE-SX ● IEEE 802.3at POE+ ● IEEE 802.3af POE |
| Standards | IEEE 802.3 10-BASE-T, Ethernet, IEEE 802.3u 100-BASE-TX, Fast Ethernet, IEEE 802.3ab 1000BASE-T, Gigabit Ethernet, IEEE 802.3af Power over Ethernet (PoE), IEEE 802.3at Power over Ethernet Plus (PoE+), IEEE802.3z 1000Base-SX/LX |
| Transmission Method | Store and forward |
| Wavelength (nm) | 850 |
| Approval and Compliance | ● CE ● UKCA ● FCC Part 15, Subpart B Class B ● RoHS |
| Operating humidity | 5% RH ~ 90% RH |
| Operating temperature | 0°C ~ 40°C |
| Storage humidity | 5% RH ~ 90% RH |
| Storage temperature | -40°C ~ 70°C |
| Package Contents | ● GVT-2013 ● Power adapter with power cord ● Quick Installation Guide ● Declaration of Conformity |
| Optical reach | 500m maximum; 850nm multimode SC |
| PoE role | PSE output for a compatible powered device; PoE-powered input operation not established |
| Net product weight | 0.182 kg |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Extend a Gigabit network across a multimode fiber link.
- Power a compatible copper-side device through PoE+.
- Support up to 30W output within the documented power budget.
- Handle larger frames with the listed 9KB jumbo-frame capability.
- Use the included power adapter and cable for standalone deployment.
Product Information

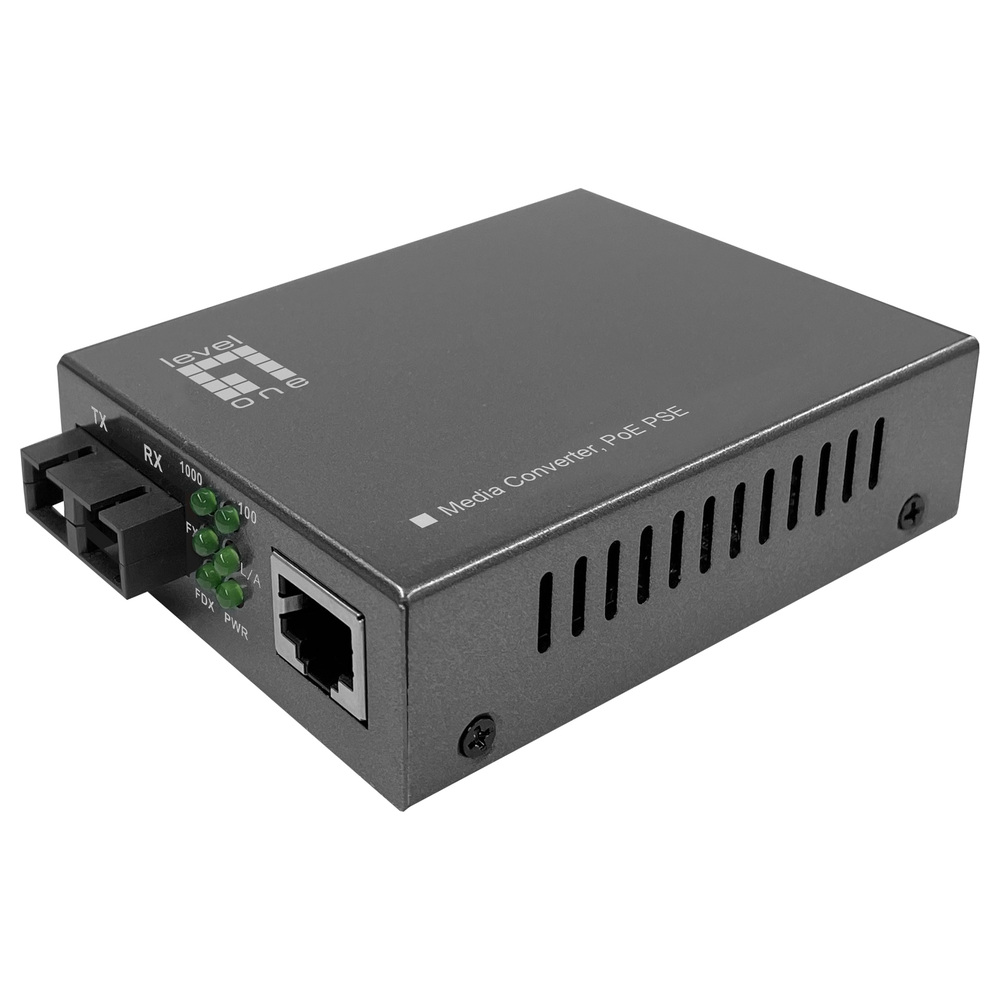

GVT-2013 bridges an 850nm multimode SC fiber link to a copper Gigabit PoE+ connection. It is intended for a powered device such as a compatible camera or access point at the copper end. The optical link supports up to 500m when the fiber and remote optics meet the required conditions.
The current version 2 listing specifies a 52V DC, 1.25A input adapter and a 30W PoE output budget. Provide local power to the converter using the listed supply; do not assume it can operate as a PoE-powered device because the page contains a conflicting generic PD statement. Match the far-end SC optic and verify the powered device is compatible with IEEE 802.3af/at.
