Specifications
| Brand headquarters / origin | Level One / Germany |
|---|---|
| Model | GVT-2000 |
| Documented hardware revision | 3 |
| Power consumption | 1.2W |
| Color | Black |
| Fiber Optical Mode | Both |
| PoE Supported | No |
| Manageable | No |
| Grade | Commercial |
| Data Rate | 1Gbps |
| Indicators | • PWR • FDX • Link/Act • FX • 100/1000 |
| MTBF | 50,000 hrs |
| Power supply included | Yes |
| Standard | IEEE 802.3 10-BASE-T, Ethernet IEEE 802.3u 100-BASE-TX, Fast Ethernet IEEE 802.3ab 1000BASE-T, Gigabit Ethernet IEEE 802.3x Flow Control (full-duplex flow control) IEEE802.3z 1000Base-SX/LX, |
| Transmission Method | Store and forward (Default) |
| Wavelength (nm) | Depend on SFP fiber optical transceiver |
| Operating humidity | 5% RH ~ 90% RH |
| Operating temperature | -10°C ~ 55°C |
| Package Contents | • GVT-2000 • Power Adapter • Quick Installation Guide |
| Copper interface | 1 × 10/100/1000Mbps RJ45 port |
| Link functions | Link Fault Pass-through and IEEE 802.3x flow control |
| Configuration | Built-in DIP switches; follow the exact device switch labels |
| Optional optics | Select a compatible Gigabit SFP; module is not included |
| Net product weight | 0.42 kg |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Bridge copper Ethernet equipment to an optional 1000BASE-X SFP module.
- Choose the optical type and distance with a supported SFP module.
- Propagate link faults to help identify a broken copper or fiber connection.
- Use the built-in indicators to check power and link activity.
- Deploy as a standalone converter with the listed power adapter.
Product Information

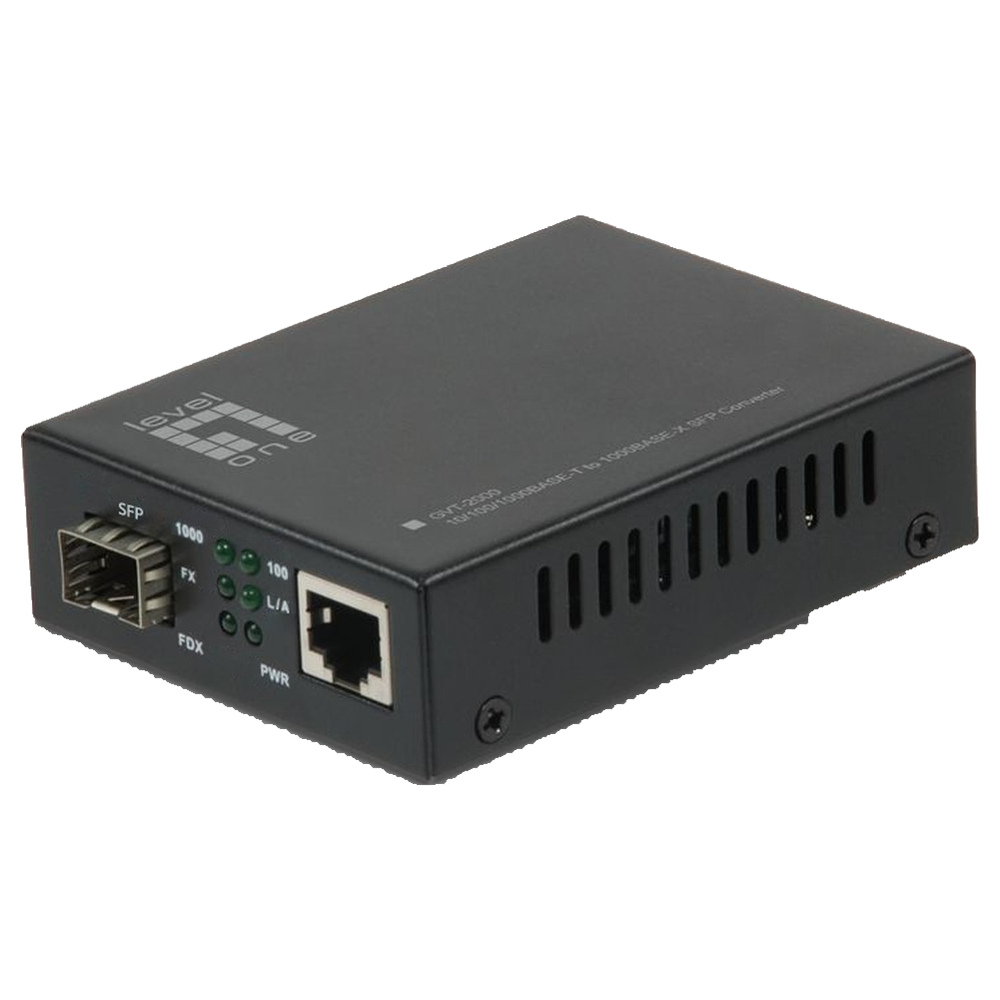

GVT-2000 connects a copper Ethernet device to an optional 1000BASE-X SFP module. The SFP slot allows the fiber type, wavelength and reach to be selected through a compatible transceiver. Auto-negotiation on the copper side and the documented link-fault functions support straightforward integration into a suitable network.
Match the fiber type, connector, wavelength and far-end interface before installation. The copper and optical sides must operate within the converter capabilities; a media converter does not add PoE power to the link. The official package lists a power adapter and quick installation guide. The SFP module and fiber cable are separate items.
