Specifications
| Brand headquarters / origin | Level One / Germany |
|---|---|
| Model | GVT-2003 |
| Documented hardware revision | 1 |
| Power consumption | 5 W |
| Color | Black |
| Dimensions (W x D x H) | 94 x 71 x 26 mm |
| Fiber Optical Mode | Single-Mode |
| PoE Supported | No |
| Manageable | No |
| Grade | Commercial |
| Data Rate | 1Gbps |
| Indicators | ● POWER (Power supply) ● FX LINK (Optical link action) ● TP LINK1000 (TP cable rate1000M) ● TP LINK100 (TP cable rate 100M) ● TP ACT (TP cable packet forwarding action) ● FDX (TP full duplex operation) |
| Mount | Desk mount |
| Power supply included | Yes |
| Standard | ● IEEE802.3 10Base-T Ethernet ● IEEE802.3u 100Base-TX Fast Ethernet ● IEEE802.3ab 1000Base-T ● IEEE802.3z 1000Base-SX/LX Gigabit Ethernet |
| Wavelength (nm) | 1310 |
| Approval and Compliance | ● CE ● UKCA ● RoHS |
| Operating humidity | 5% RH ~ 90% RH |
| Operating temperature | -10°C ~ 55°C |
| Storage humidity | 5% RH ~ 90% RH |
| Storage temperature | -40°C ~ 70°C |
| Package Contents | ● GVT-2003 ● Power Adapter ● Quick Installation Guide ● Declaration of Conformity |
| Copper interface | 1 × 10/100/1000Mbps RJ45 port |
| Link functions | Link Fault Pass-through and IEEE 802.3x flow control |
| Configuration | Built-in DIP switches; follow the exact device switch labels |
| Fiber reach | 20km |
| Net product weight | 0.2 kg |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Bridge copper Ethernet equipment to single-mode ST fiber.
- Extend the optical link up to 20km with matching far-end equipment.
- Propagate link faults to help identify a broken copper or fiber connection.
- Use the built-in indicators to check power and link activity.
- Deploy as a standalone converter with the listed power adapter.
Product Information

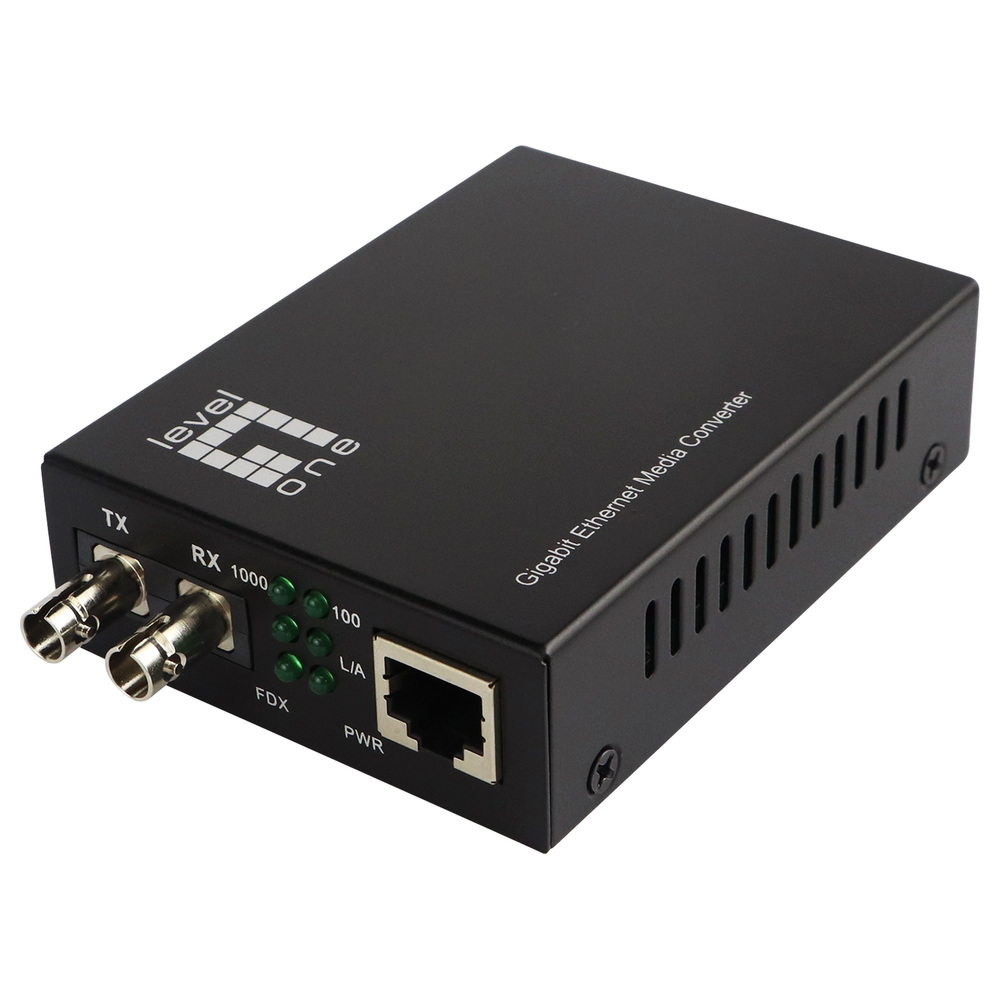

GVT-2003 connects a copper Ethernet device to single-mode ST fiber. The fixed optical interface supports up to 20km under suitable fiber-link conditions. Auto-negotiation on the copper side and the documented link-fault functions support straightforward integration into a suitable network.
Match the fiber type, connector, wavelength and far-end interface before installation. The copper and optical sides must operate within the converter capabilities; a media converter does not add PoE power to the link. The official package lists a power adapter and quick installation guide. Fiber cabling and the far-end equipment are separate items.
