Specifications
| Brand headquarters / origin | Level One / Germany |
|---|---|
| Model | WAC-2000 |
| Documented hardware revision | 1 |
| Ethernet interfaces | 5 × 10/100/1000Mbps RJ45: 1 WAN and 4 LAN |
| Management capacity | Up to 50 compatible APs |
| AP functions | Central configuration, disable/restart/reset, firmware management and Layer 2 roaming |
| Network functions | Tag-based VLAN, automatic AP IP detection/distribution, QoS and firewall in gateway mode |
| Guest and RF functions | Captive portal, client isolation, channel and transmit-power optimisation |
| Operating modes | Gateway / router |
| Documented compatible APs | WAB-5010, WAB-6010, WAB-8011, WAP-6017, WAP-6117, WAP-6121, WAP-6221, WAP-8021, WAP-8121, WAP-8122, WAP-8123 and WAP-8221 |
| Memory | 128MB RAM; 16MB flash |
| Power supply | External adapter; included |
| Dimensions (W × D × H) | 142 × 45 × 232 mm, as listed by manufacturer |
| Net product weight | 0.78 kg |
| Operating environment | −20–50°C; 5–90% RH |
| Storage environment | −30–70°C; 5–90% RH |
| Indicators | Power, system, WAN and LAN |
| Included | Controller, RJ45 Ethernet cable, power adapter and quick installation guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Manage up to fifty compatible Level One access points centrally.
- Distribute configuration and firmware changes across the managed network.
- Separate guest access using the captive portal and client isolation.
- Support RF planning with channel and power optimisation.
- Connect through five Gigabit Ethernet ports.
Product Information

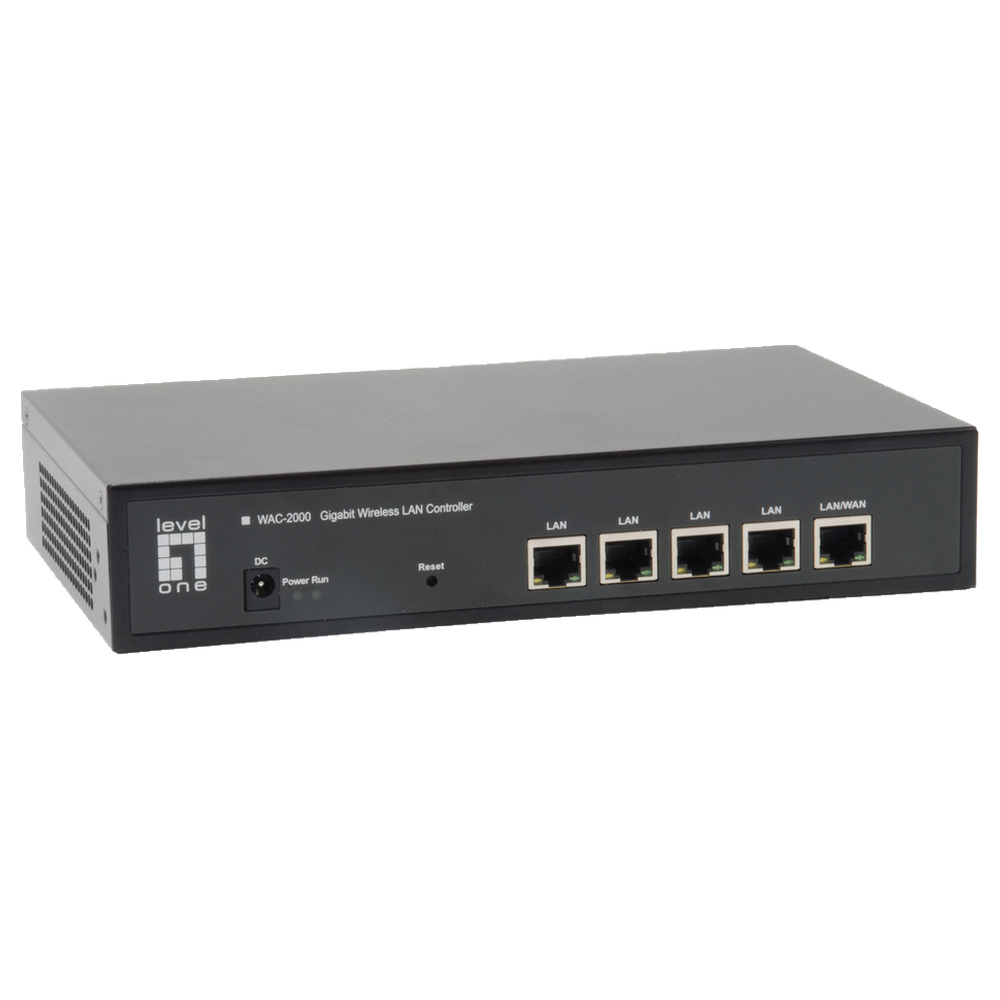

WAC-2000 centralises administration of compatible Level One wireless access points for a business, hotel or similar installation. It provides AP configuration, restart/reset controls and coordinated network settings, reducing the need to administer each supported unit separately. Five Gigabit Ethernet interfaces provide the WAN and LAN connections.
Compatibility must be checked against the documented AP list and firmware versions. A generic claim about Wi-Fi 6 in the current description does not establish support for every newer AP, so only the specifically listed models are represented here. The controller is a wired management device, not a wireless radio. The package includes its power adapter and an Ethernet cable; access points and PoE equipment are separate products.
