Specifications
| Network interfaces | RJ45 Ethernet to RJ11 VDSL2 |
|---|---|
| DSL standard | ITU-T G.993.2 |
| Line reach | Up to 3 km over suitable existing copper cabling |
| Line settings | 4-position DIP switch: master/remote, symmetric/asymmetric, G.INP/interleave, SNR high/low |
| Management | Unmanaged |
| Power input | 12–24 V DC; external supply not included |
| Consumption | Under 4.5 W |
| Dimensions | 94.5 × 23 × 72.5 mm |
| Product weight | 0.22 kg |
| Operating environment | −20–65 °C; 10–90% RH |
| Mounting | Desktop |
| Included | Terminal block listed in manufacturer package contents |
| Optional | Suitable 12–24 V DC power supply |
Key Features
- Extend an Ethernet link over existing copper cabling up to 3 km.
- Deploy in industrial spaces with a −20–65 °C operating range.
- Set master or remote roles and traffic symmetry via DIP switches.
- Tune line operation with G.INP/interleave and SNR selections.
- Keep operating consumption under 4.5 W.
Product Information

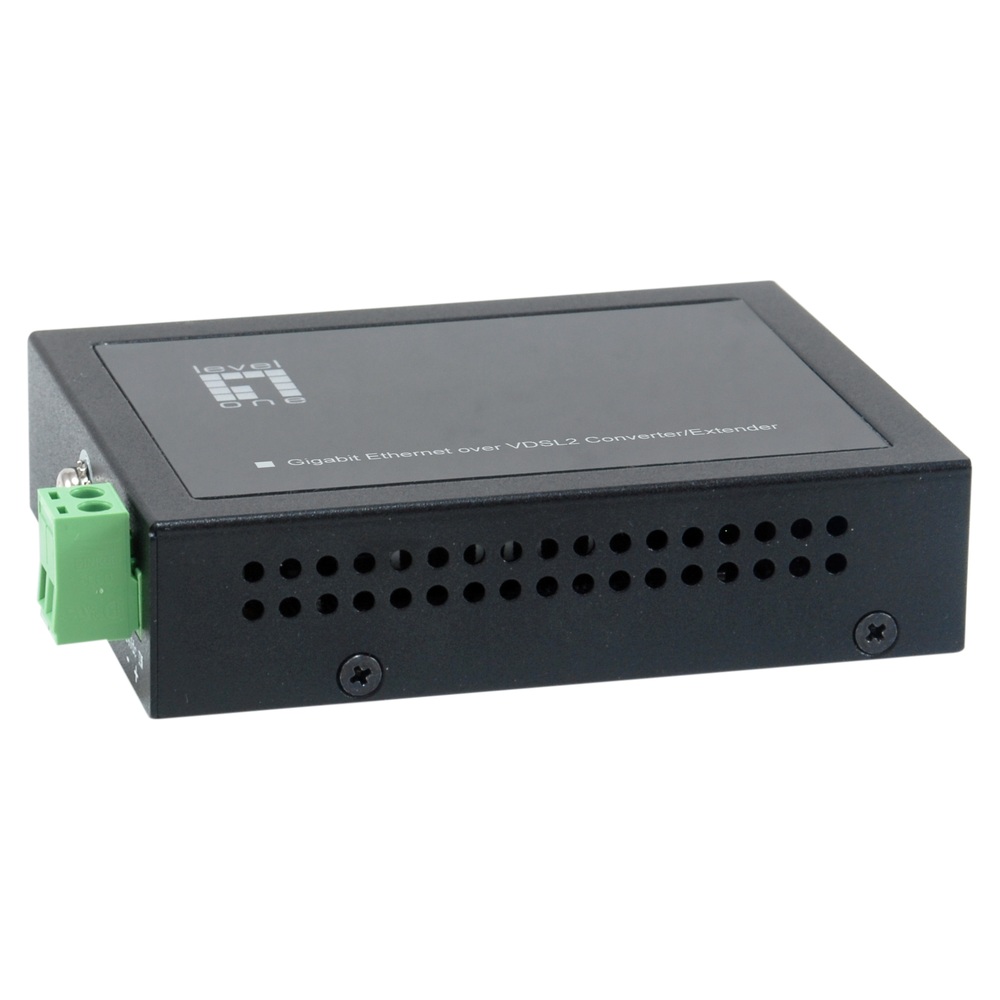

VDS-2201 is a compact industrial converter for Ethernet extension over an existing copper VDSL2 line. Configure complementary master and remote units for the link and use the DIP switches for the line conditions. The manufacturer publishes inconsistent speed/profile figures across the same product page, so no precise throughput is promised here; actual performance depends on the line. Provide a suitable external 12–24 V DC supply, which is not included.
