Specifications
| Model | POI-3004 |
|---|---|
| Product type | Single-port Gigabit PoE injector |
| RJ45 ports | 2 × 10/100/1000 Mbps (data input; data and PoE output) |
| PoE standard | IEEE 802.3af/at |
| PoE output | Up to 30 W on one output port |
| PoE pin assignment | 4/5 (+), 7/8 (-) |
| Maximum remote power distance | Up to 100 m |
| Surge protection | 6 kV on each port |
| Indicators | Power, PoE |
| Mounting | Wall mounting |
| Operating temperature | −20 °C to 60 °C |
| Operating humidity | 5% to 95% RH |
| Dimensions | 143 × 51 × 38 mm |
| Product weight | 0.35 kg |
| Package contents | POI-3004 injector, quick installation guide, power cord |
| Power supply | Included |
Key Features
- Add up to 30 W of PoE power to a Gigabit Ethernet connection without replacing an existing non-PoE switch.
- Carry data and power over one Ethernet run to simplify installation of compatible remote devices.
- Reach compatible powered devices up to 100 m away on suitable network cabling.
- Protect the connection with 6 kV surge protection on each port.
- Use the compact, wall-mountable housing and plug-and-play setup for flexible placement.
Product Information

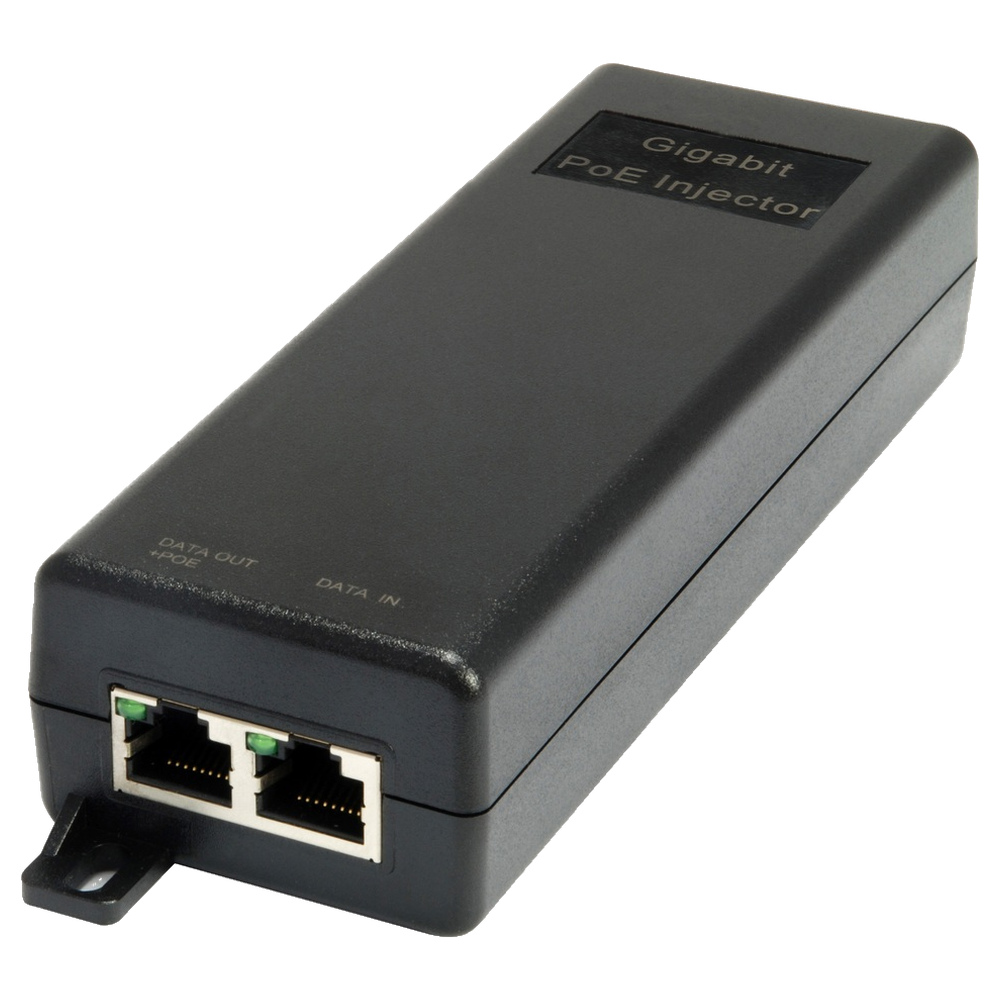

The Level One POI-3004 combines Gigabit Ethernet data from a conventional network switch with IEEE 802.3af/at PoE power for one compatible powered device, such as a network camera or wireless access point. Its 30 W maximum output makes it suitable only where the connected device accepts the injector’s PoE standard and stays within the power budget. A separate compatible PoE splitter is required to power a device that does not accept PoE directly. The unit supports installation at a distance of up to 100 m and can be wall mounted. The manufacturer lists the injector, quick installation guide and power cord in the package; do not assume that a separate splitter or Ethernet cable is supplied.
