Specifications
| Model | POI-3014 |
|---|---|
| Product type | Single-port Gigabit PoE injector |
| Ethernet data rate | 10/100/1000 Mbps |
| PoE budget | 30 W total; up to 30 W for one powered device |
| PoE pin assignment | 4/5 (+), 7/8 (−) |
| Remote power reach | Up to 100 m |
| Power input | 100–240 V AC |
| Power indicator | Power LED |
| Mounting | Ceiling mount; interlocking chassis feature |
| Operating temperature | 0 °C to 40 °C |
| Operating humidity | 10% to 90% RH |
| Dimensions | 145.7 × 64.39 × 43.4 mm |
| Product weight | 0.35 kg |
| Package contents | POI-3014 injector, quick installation guide, power cord |
| Power supply | Included |
Key Features
- Deliver up to 30 W of remote power through one existing Gigabit Ethernet link.
- Connect a compatible access point or network camera up to 100 m from the injector.
- Keep a conventional non-PoE switch in service while adding power to one remote connection.
- Use the interlocking housing to organise nearby injector units in an equipment area.
- Install the included powered injector with plug-and-play operation and a visible power indicator.
Product Information

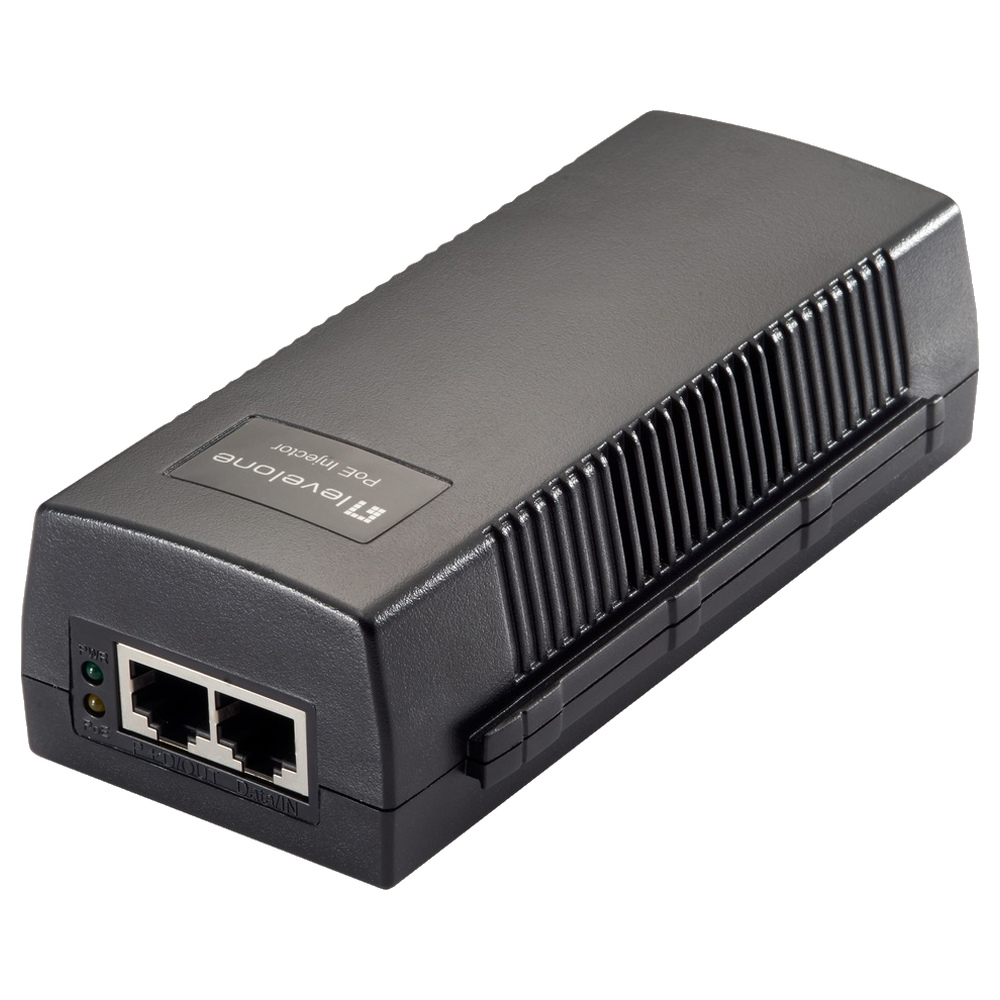

The Level One POI-3014 combines Ethernet data with remote power for one compatible PoE powered device. It supports 10/100/1000 Mbps networking and an output budget of up to 30 W; verify the powered device’s PoE requirements and power draw before connecting it. It is intended for deployment where a nearby electrical outlet for a camera or wireless access point is inconvenient. The manufacturer specifies a maximum remote feed of 100 m, a ceiling-mountable housing and an interlocking feature. The injector, quick installation guide and power cord are supplied; a separate Ethernet cable or PoE splitter is not listed as included.
