Technical Specifications
| Specification | Details |
|---|---|
| Brand | Molex |
| Product Range | PowerCat 6A Gen II |
| Part Number | CAA-00445-BL |
| SAP Number | 1810000034 |
| Cable Category | Category 6A |
| Cable Construction | U/UTP |
| Number of Pairs | 4 Pair |
| Conductor Type | Solid Annealed Copper |
| Conductor Size | 23AWG / 0.56 mm |
| Cable Length | 500 Metres |
| Cable Colour | Blue |
| Jacket Colour | Blue RAL 5015 |
| Jacket Type | LS0H – Low Smoke Zero Halogen |
| Nominal Cable Diameter | 7.2 ± 0.3 mm |
| Maximum Frequency | 500 MHz |
| Maximum Data Rate | 10 Gigabit Ethernet / 10GBASE-T |
| Isolation Construction | Double PET Aluminium Foil Wrap |
| Drain Wire | Not Required |
| Grounding / Bonding | Not Required |
| DC Resistance | 77 Ω/km Maximum |
| DC Loop Resistance | 154 Ω/km Maximum |
| Voltage Rating | 72 VDC Maximum |
| Delay Skew | 45 ns / 100 m |
| NVP | 64% Nominal |
| Maximum Pulling Force | 100 N |
| Minimum Bend Radius | 4 × Cable OD |
| Operating Temperature | -20°C to +75°C |
| Installation Temperature | 0°C to +50°C |
| Approximate Weight | 52 kg/km |
| PoE Compatibility | IEEE 802.3bt Type 1–4, Cisco UPoE+ |
| PoH Support | HDBaseT PoH up to 100W |
| Environmental Compliance | RoHS & REACH Compliant |
Key Features

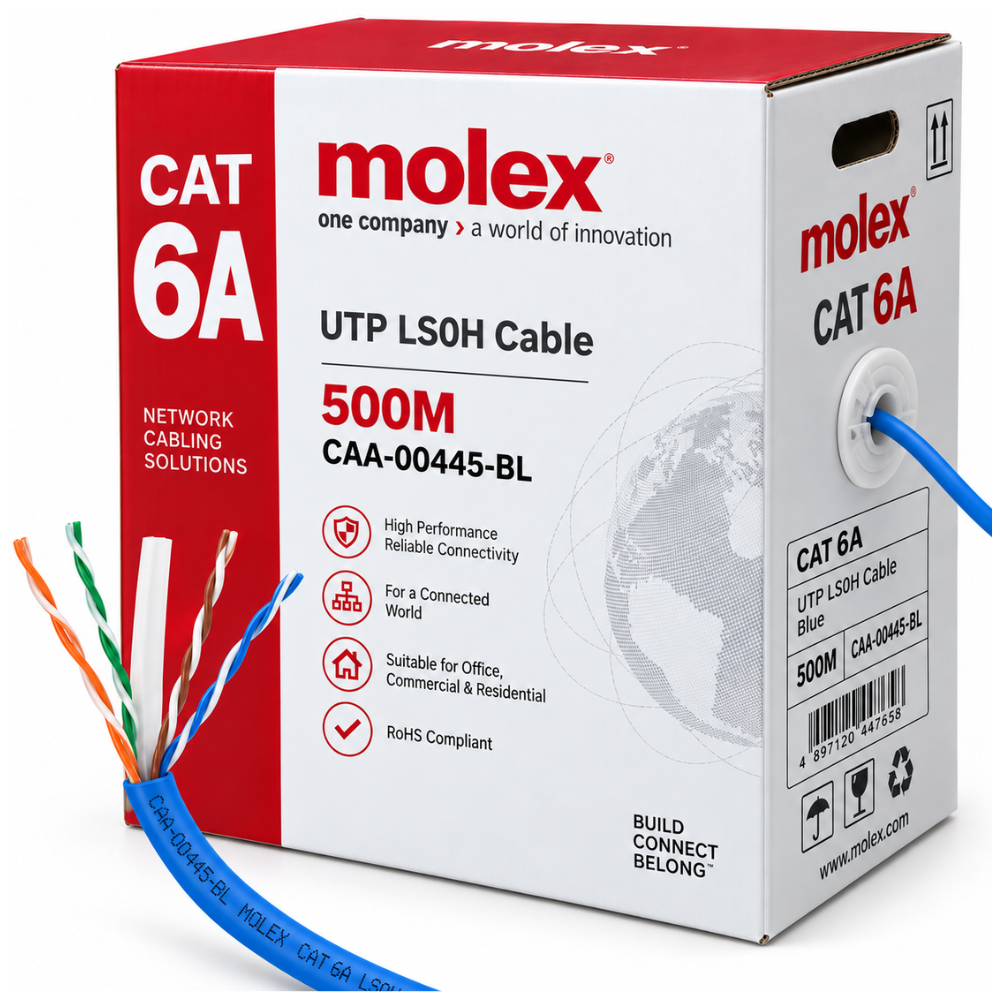

- Original Molex PowerCat 6A structured cabling cable
- 500M blue cable – CAA-00445-BL
- Category 6A U/UTP construction
- 4 Pair 23AWG solid annealed copper
- Supports network frequencies up to 500 MHz
- Supports 10GBASE-T 10 Gigabit Ethernet
- Advanced alien-crosstalk protection
- Double PET aluminium isolation wrap
- Low Smoke Zero Halogen LS0H jacket
- No drain wire required
- No grounding or bonding required
- Supports high-power PoE++ / IEEE 802.3bt Type 1–4
- Supports Cisco UPoE+
- Supports HDBaseT PoH up to 100W
- Low 7.2 mm nominal cable diameter
- Suitable for high-density structured cabling systems
- RoHS and REACH compliant
Suitable Applications
Ideal for enterprise LAN networks, commercial offices, data centres, server rooms, telecommunications networks, high-speed structured cabling systems, IP CCTV networks, wireless access points, VoIP systems, PoE devices and other 10 Gigabit Ethernet installations. Molex identifies the cable for high-speed applications in sectors including IT and telecommunications, government, education, financial services, insurance, legal and healthcare environments.
