Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | WGS-4215-8T2S |
| Copper Ports | Eight 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | Two 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: Power ( Green ) 10/100/1000T RJ45 Interfaces (Port 1 to Port 8): 1000 LNK / ACT ( Green ), 10/100 LNK/ACT ( Amber ) 100/1000Mbps SFP Interfaces (Port 9 to Port 10): 1000 LNK / ACT ( Green ), 100 LNK/ACT ( Amber ) |
| Connector | Removable 3-pin terminal block for power input Pin 1/2 for DC Power (Pin 1: v+ / Pin 2: V-) Pin 3 for earth ground DC power jack with 2.0mm central pole |
| Power Requirements | 12V~48V DC,1A / 24V AC,1A terminal block 12V~48V, 1A DC jack power input |
| Power Consumption/ Dissipation | Max. 7.9 watts/26BTU |
| Dimensions (W x D x H) | 178 x 134 x 24.2 mm |
| Weight | 663g |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 20Gbps/non-blocking |
| Switch Throughput@64 bytes | 14.8Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9216 bytes |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation | IEEE 802.3ad LACP and static trunk Supports 4 groups with 8 ports per trunk |
| Spanning Tree Protocol | STP, IEEE 802.1D Spanning Tree Protocol RSTP, IEEE 802.1w Rapid Spanning Tree Protocol MSTP, IEEE 802.1s Multiple Spanning Tree Protocol STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping | IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| QoS | 8 mapping ID to 8 level priority queues Port Number 802.1p priority DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Ring | Supports ERPS, and complies with ITU-T G.8032 |
| Access Control List | IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| Port Security | IEEE 802.1X – Port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ user access authentication |
| MAC Security | IP-MAC port binding MAC filter Static MAC address |
| Enhanced Security | DHCP Snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard |
| Basic Management Interfaces | Web browser; Telnet; SNMP v1, v2c |
| Secure Management Interfaces | SSHv2, TLS v1.2, SNMPv3 |
| Switch Management | Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP Remote/Local Syslog System log LLDP protocol SNTP PLANET Smart Discovery Utility PLANET NMS System/CloudViewer |
| SNMP MIBs | RFC 1213 MIB-II RFC 1215 Generic Traps RFC 1493 Bridge MIB RFC 2674 Bridge MIB Extensions RFC 2737 Entity MIB (Version 2) RFC 2819 RMON (1, 2, 3, 9) RFC 2863 Interface Group MIB RFC 3635 Ethernet-like MIB |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring |
| Operating | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -40 ~ 75 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | Quick Installation Guide x 1 3-pin Terminal Block Connector x 1 Wall-mounted Kit x 1 DIN-rail Kit x 1 Magnet Kit x 1 RJ45 Dust Cap x 8 SFP Dust Cap x 2 |
| PoE | No PoE output |
| Optional | Compatible SFP modules and suitable external power supply |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Manage copper and fiber connectivity from a compact flat enclosure.
- Separate traffic with tagged VLANs and access controls.
- Build resilient topologies using supported spanning-tree and ERPS functions.
- Prioritise traffic with eight queues and rate controls.
- Monitor links with port mirroring, logs and SNMP support.
Product Information

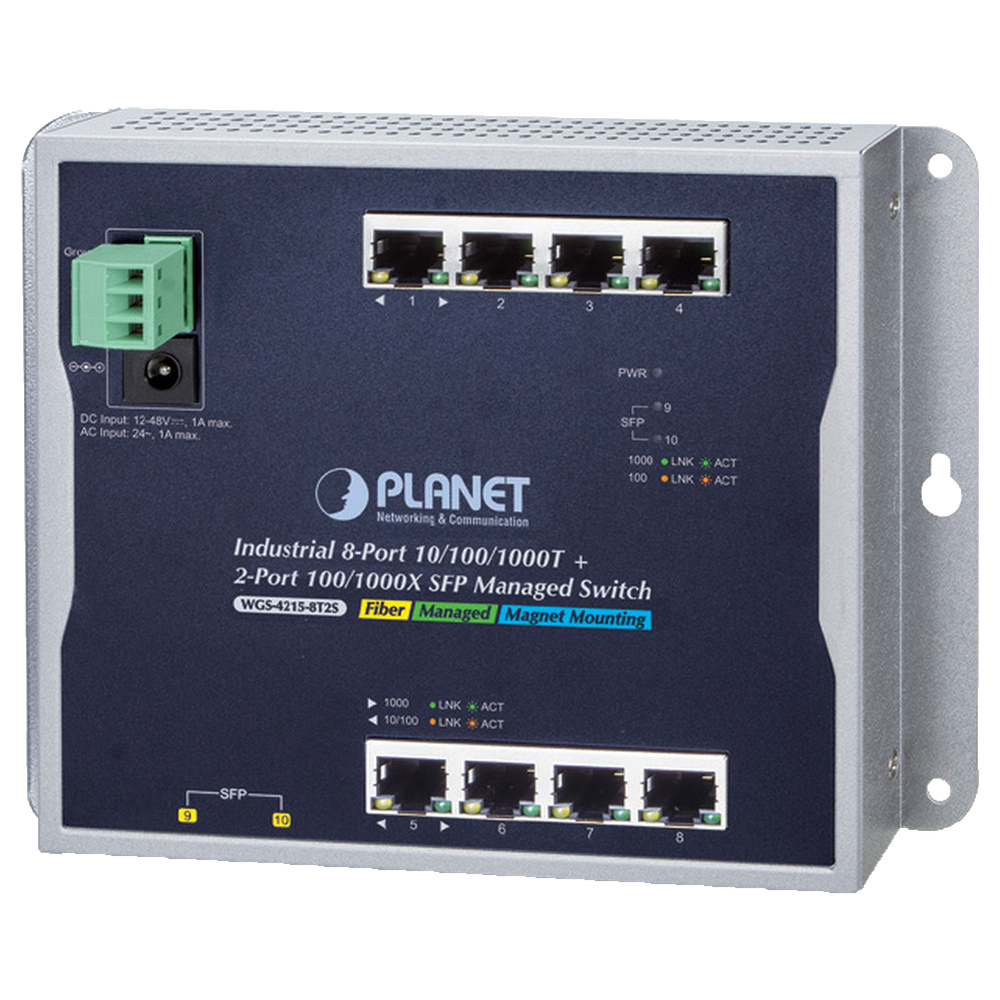

WGS-4215-8T2S provides managed Layer 2 switching in a flat industrial wall-mount format. Eight copper Gigabit ports and two dual-speed SFP slots support local access and fiber uplinks. VLANs, LACP, multicast snooping and QoS let an administrator shape traffic and segmentation to the network design.
Web, SSH and SNMP management support configuration and monitoring, with secure interfaces available as documented. ERPS and spanning-tree functions require a correctly designed topology and compatible peer configuration. The device is non-PoE and needs a supported external power supply. Select matching SFP modules separately; the package includes wall, magnetic and DIN-rail mounting hardware.
