Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | IGS-1020TF |
| Copper Ports | 8 × 10/100/1000BASE-T RJ45; auto-MDI/MDI-X and auto-negotiation (manual v1.2) |
| SFP/mini-GBIC Slots | 2 1000BASE-SX/LX/BX SFP interfaces (Port-9 and Port-10) Compatible with 100BASE-FX SFP |
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 20Gbps (non-blocking) |
| Switch Throughput (packet per second) | 14.88Mpps@64bytes |
| MAC Address Table | 4K entries |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Jumbo Frame | 9216 bytes |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
| LED Indicator | 3 x LED for System and Power : Green: DC Power 1 Green: DC Power 2 Red: Power Fault 2 x LED for Per Copper Port (Port-1~Port-8) : Green: 1000 LNK/ACT Orange:100 LNK/ACT 2 x LED for Per Mini-GBIC Interface (Port-9 and Port-10) : Green: 1000 LNK/ACT Orange:100 LNK/ACT |
| ESD Protection | 6KV DC |
| Enclosure | IP30 type metal case |
| Installation | DIN rail kit and wall-mount ear |
| Weight | 540g |
| Power Requirements | DC 12~48V or AC 24V Redundant power with polarity reverses protection function |
| Power Consumption/Dissipation | 8.7 watts/29.69BTU |
| Cable | Twisted-pair ■ 10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters ■ 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters ■ 1000BASE-T: 4-pair UTP Cat. 5e, 6 up to 100 meters Fiber-Optic Cable ■ 1000BASE-SX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 550m ■ 1000BASE-LX: 9/125μm single-mode fiber optic cable, up to 10/20/30/40/50/70/120 kilometers (vary on SFP module) ■ 100BASE-FX: 50/125μm or 62.5/125μm multi-mode fiber optic cable, up to 2 kilometers 9/125μm single-mode fiber optic cable, up to 20/40/60 kilometers (vary on SFP module) |
| Standards Compliance | IEEE 802.3 Ethernet/10BASE-T IEEE 802.3u Fast Ethernet/100BASE-TX IEEE 802.3ab Gigabit Ethernet/1000BASE-T IEEE 802.3z Gigabit Ethernet/1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet (EEE) IEEE 802.1p Cos |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (anti-shock) IEC 60068-2-6 (anti-vibration) |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95% (non-condensing) Storage: 5~95% (non-condensing) |
| Management | Unmanaged |
| PoE | No PoE output |
| Included | Switch, manual, DIN-rail bracket and screws, wall-mount plate and screws, eight RJ45 dust caps and two SFP dust caps |
| Optional | SFP modules and suitable external power supply |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Aggregate eight copper links with two fiber uplinks.
- Select compatible 100Mbps or Gigabit optics for the installation.
- Use redundant inputs and a power-failure relay for cabinet monitoring.
- Support larger Ethernet frames up to 9216 bytes.
- Mount on a DIN rail or wall in an industrial enclosure.
Product Information

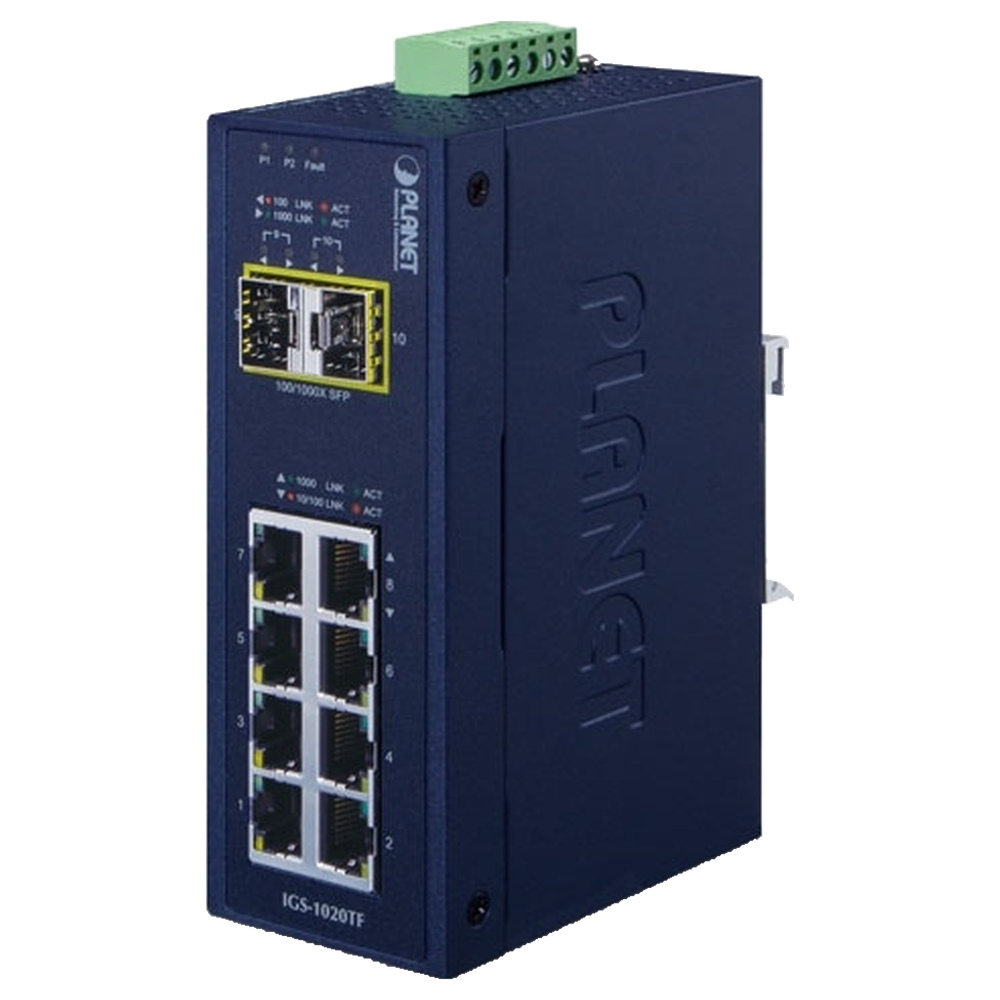

IGS-1020TF provides eight copper ports and two SFP uplinks for industrial Ethernet distribution. The version 1.2 manual confirms 10/100/1000Mbps copper support and 100/1000Mbps fiber-module compatibility. It is unmanaged and does not require a browser or command-line configuration for basic forwarding.
Supply the unit from supported 12–48V DC or 24V AC power and choose compatible optical modules separately. The power-failure relay can be wired into an appropriate alarm circuit. This non-PoE switch carries data only on its Ethernet ports. Chassis dimensions are omitted because the official manual and web table contain conflicting measurements.
