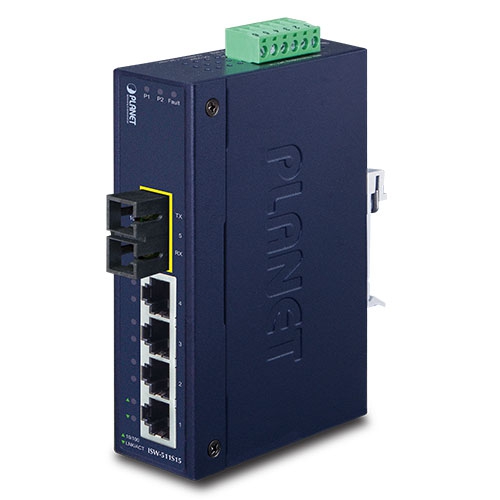

PLANET ISW-511 industrial five-port fiber switch, manufacturer ISW-511 family photo

Key features

5 ports

Ports

No PoE output

PoE

Multimode

Fibre mode

3 years

Warranty

PLANET (Taiwan) 5-Port Industrial Fast Ethernet Multimode Fiber Switch – ISW-511 (3Y)

The PLANET (Taiwan) ISW-511 is a 5-port industrial fast ethernet multimode fiber switch featuring 4 × 10/100Mbps RJ45 ports and 1 × 100BASE-FX multimode SC fiber ports. It delivers 1Gbps switching capacity, with 2K MAC entries, 1M-bit buffer, flow control, redundant DC power and a fault relay.

3 YEARS WARRANTY

රු 65,000.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters / origin PLANET / Taiwan
Model ISW-511
Copper Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI/MDI-X Cable 10Base-T : 2-pair UTP Cat. 3, 4, 5cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5cable (100meters, max.)
Optical 1 × 100BASE-FX multimode SC; 50/125μm fiber; 2km; 1310nm; transmit −19 to −14dBm; receive sensitivity −34.5dBm; maximum input −14dBm
Dimensions (W x D x H) 135 x 87.8 x 32 mm
Weight 436g
Power Requirements 12~48 VDC, Redundant power with polarity reverse protection function
Power Consumption / Dissipation 9.1 watts / 31BTU
Installation DIN rail kit and wall mount ear
Alarm Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V
Switch Processing Scheme Store-and-Forward
Address Table 2K entries
Buffer 1Mbit
Flow Control Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
Switch Fabric 1Gbps
Throughput 0.74Mpps @ 64Bytes
Standards Compliance IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x Full-duplex flow control
Temperature Operating: -10~60 degrees C Storage: -40~85 degrees C
Humidity Operating: 5~90%, Storage: 5~90% (non-condensing)
Regulation Compliance FCC Part 15 Class A, CE
Safety UL, cUL
Stability Testing IEC60068-2-32(Free fall), IEC60068-2-27(Shock), IEC60068-2-6(Vibration)
Included Switch, manual, DIN-rail bracket and screws, wall-mount plate and screws, four RJ45 dust caps
Optional Suitable external DC supply and optical cable
Management Unmanaged
PoE No PoE output
Store warranty 3 YEARS WARRANTY

Key Features

  • Connect four copper Fast Ethernet devices to multimode fiber.
  • Reach up to 2km over compatible 50/125μm optical cabling.
  • Use redundant DC inputs for supply continuity.
  • Monitor power failure with a relay contact.
  • Install using the supplied DIN-rail or wall-mount hardware.

Product Information

ISW-511 is an unmanaged industrial Fast Ethernet switch with fixed multimode SC optics. Its 1 fiber port operate at 100Mbps with 1310nm optics over a documented distance of up to 2km. The optical interface is fixed; it is not an interchangeable SFP slot.

This listing covers the exact ISW-511 variant. Its multimode interface and −10–60°C operating range must be distinguished from the S15 single-mode and T temperature variants. Provide 12–48V DC power, and match fiber type, connector and the remote optical interface. The switch has no PoE output and uses up to 9.1W as documented.

Complete your network connections

Match cable performance to the installation and check the exact switch interfaces before choosing accessories.

Explore Planet Network Switches in Sri Lanka: Buying Guide; Network Patch Cords; SFP and SFP+ Compatibility Guide; Structured Cabling Buying Guide.

Weight 0.436 kg
