Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | IGS-510TF |
| Hardware version | 2 |
| Copper Ports | 4-port 10/100/1000BASET RJ45 TP auto-MDI/MDI-X, auto negotiation |
| SFP Slots | 1 1000BASE-SX/LX/BX SFP interface Compatible with 100BASE-FX SFP |
| Connector | Removable 4-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for Power 2 |
| LED | 2 x LED for system and power: Green: DC Power 1 Green: DC Power 2 2 x LED for each copper port: Green: 1000Mbps LNK/ACT Amber: 10/100Mbps LNK/ACT 1 x LED for SFP fiber slot: Green: LNK/ACT |
| ESD Protection | 6KV |
| Power Requirements | 9~48V DC, redundant power with reverse polarity protection, 24V AC power support |
| Power Consumption / Dissipation | 2.4 watts/8.1BTU |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 30 x 70 x 104 mm |
| Weight | 239g |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer Memory | 4M bits on-chip buffer memory |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps@64bytes |
| Jumbo Frame | 9K |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~90%, Storage: 5~90% (non-condensing) |
| Included | Switch, manual, wall-mount kit, DIN-rail kit, four RJ45 dust caps and one SFP dust cap |
| Management | Unmanaged |
| PoE | No PoE output |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect four copper Gigabit devices with a flexible fiber uplink.
- Choose supported 100Mbps or Gigabit SFP optics.
- Use redundant power inputs for cabinet installations.
- Fit compact spaces with a 30mm-wide metal enclosure.
- Operate across a −40–75°C industrial temperature range.
Product Information

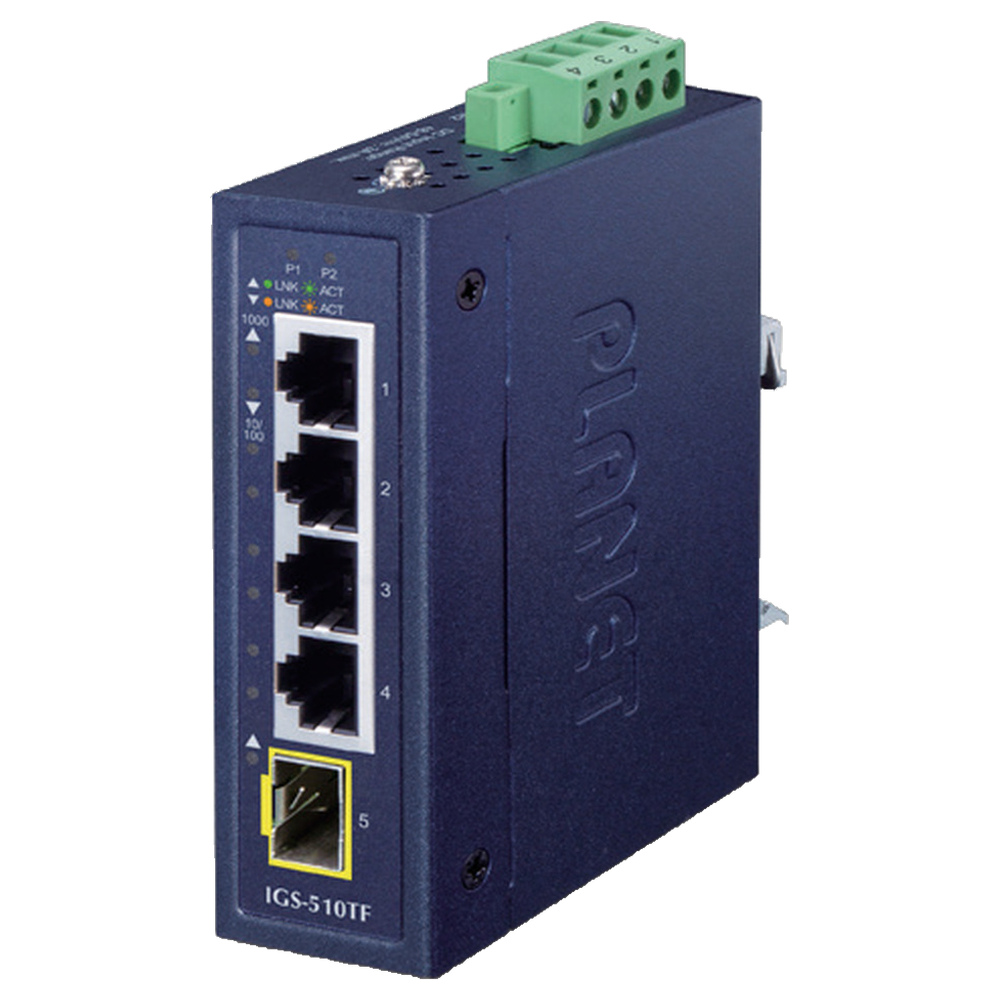

IGS-510TF hardware version 2 combines four auto-negotiating copper ports and one dual-speed SFP slot. It suits unmanaged industrial distribution where a fiber uplink provides electrical isolation or the required reach. Select an SFP transceiver that matches the fiber and remote endpoint.
A 9–48V DC or supported 24V AC source is required. The current revision uses a four-pin removable power terminal and an IP30 enclosure. It has no PoE output and does not offer a configurable VLAN or web-management interface. The power supply and SFP transceiver are separate installation items.
