Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | IGS-620TF |
| Copper Ports | 4 x 10/100/1000BASE-T RJ45 TP Auto-MDI/MDI-X, auto-negotiation |
| SFP Slots | 2 x 100/1G/2.5GBASE-X SFP interfaces Supports auto detection |
| DIP Switch | DIP Position Function DIP-1 ON Fiber Redundancy OFF (default) Switch Mode |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power |
| Alarm | Provides one relay output for power failure Alarm Relay current carry ability: 1A @ DC 24V |
| ESD Protection | 6KV DC |
| Enclosure | IP30 type metal case |
| Installation | DIN-rail kit and wall-mount ear |
| Dimensions (W x D x H) | 32 x 87.8 x 135mm |
| Weight | 425g |
| Power Requirements | DC 12~48V or AC 24V Redundant power with reverse polarity protection |
| Power Consumption / Dissipation | 7.5watts / 26BTU |
| LED | 3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Red: Alarm 2 x LED for Per Copper Port (Port-1~Port-4): ■ Green: 1G LNK/ACT ■ Amber:100 LNK/ACT 1 x LED for Per SFP interface (Port-5 and Port-6) ■ Green + Amber: 2.5G LNK/ACT ■ Green: 1G LNK/ACT ■ Amber:100 LNK/ACT |
| Switch Processing Scheme | Store-and-Forward |
| Switch Fabric | 18Gbps |
| Throughput (packet per second) | 13.39Mpps@64bytes |
| Address Table | 4K entries |
| Jumbo Frame | 9216 bytes |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3z Gigabit Ethernet 1000BASE-SX/LX IEEE 802.3x Full-Duplex Flow Control IEEE 802.1p Class of Service |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95% (Non-condensing) Storage: 5~95% (Non-condensing) |
| Included | Switch, manual, wall-mount plate and screws, DIN-rail bracket and screws, four RJ45 dust caps and two SFP dust caps |
| Management | Unmanaged |
| PoE | No PoE output |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect copper Gigabit equipment to flexible fiber uplinks.
- Support SFP links at 100Mbps, 1Gbps or 2.5Gbps.
- Select fiber redundancy with the hardware DIP switch.
- Monitor power failure through a relay contact.
- Use DIN-rail or wall mounting in industrial cabinets.
Product Information

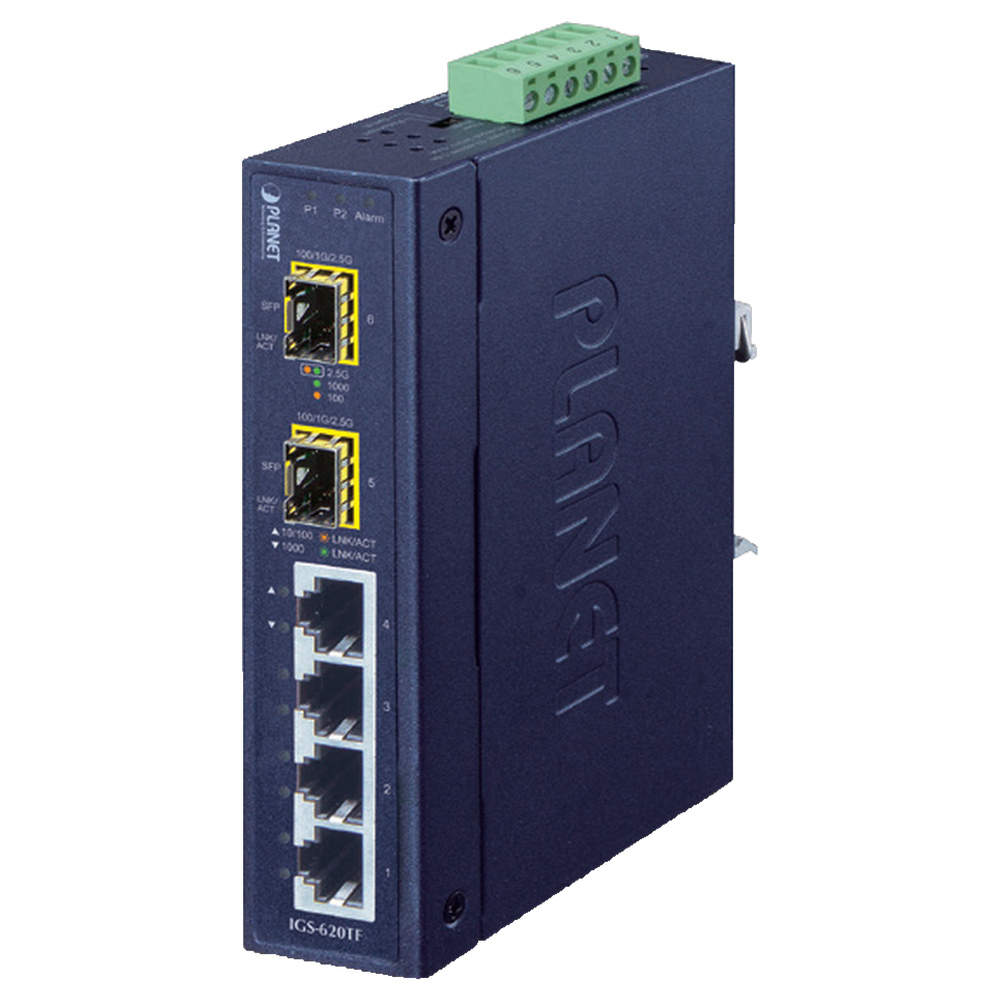

IGS-620TF provides four Gigabit copper ports and two SFP slots supporting up to 2.5Gbps. A DIP switch chooses ordinary switching or the documented fiber-redundancy mode, allowing a suitable alternate fiber path without a software management interface. The network topology and peer devices must match the selected mode.
Supply the switch from 12–48V DC or supported 24V AC power. Redundant inputs and the fault relay help integrate it into a monitored industrial cabinet. Choose compatible SFP modules and an external supply separately. The IP30, non-PoE switch is specified for −40–75°C operation.
Complete your network connections
Match cable performance to the installation and check the exact switch interfaces before choosing accessories.
