Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | ISW-800T |
| Hardware Version | 2 |
| Copper Ports | 8 x 10/100BASE-TX RJ45 TP auto-MDI/MDI-X, auto negotiation |
| Connector | Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm | Provides one relay output for power failure Alarm relay current carry ability: 1A@DC 24V |
| LED | 3 x LED for system and power: Green : DC Power 1 Green : DC Power 2 Red : Power Alarm 1 x LED for each copper port: Green : 10/100Mbps LNK/ACT |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Power Requirements | 12~48V DC, redundant power with reverse polarity protection, 24V AC power support |
| Power Consumption / Dissipation | Max. 1.1 watts/3.75BTU (Power on without any connection) Max. 2.5 watts/8.53BTU (Ethernet full loading) |
| Installation | DIN-rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 41 x 70 x 115mm |
| Weight | 300g |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K entries |
| Shared Data Buffer | 448K bits |
| Flow Control | Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.6Gbps |
| Throughput (packet per second) | 1.19Mpps@64bytes |
| Standards Compliance | IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service PROFINET Traffic Pass-through with QoS |
| Regulatory Compliance | FCC Part 15 Class A, CE, UL |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Temperature | Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5~95%, Storage: 5~95% (non-condensing) |
| Included | Switch, manual/QR sheet, DIN-rail kit, wall-mount kit and eight RJ45 dust caps |
| External power supply | Selected separately |
| Management | Unmanaged |
| PoE | No PoE output |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect eight Fast Ethernet devices without software configuration.
- Maintain supply continuity with redundant DC inputs.
- Monitor power failure through the relay output.
- Fit a DIN rail or wall in an industrial cabinet.
- Operate from −40°C to 75°C within the documented limits.
Product Information

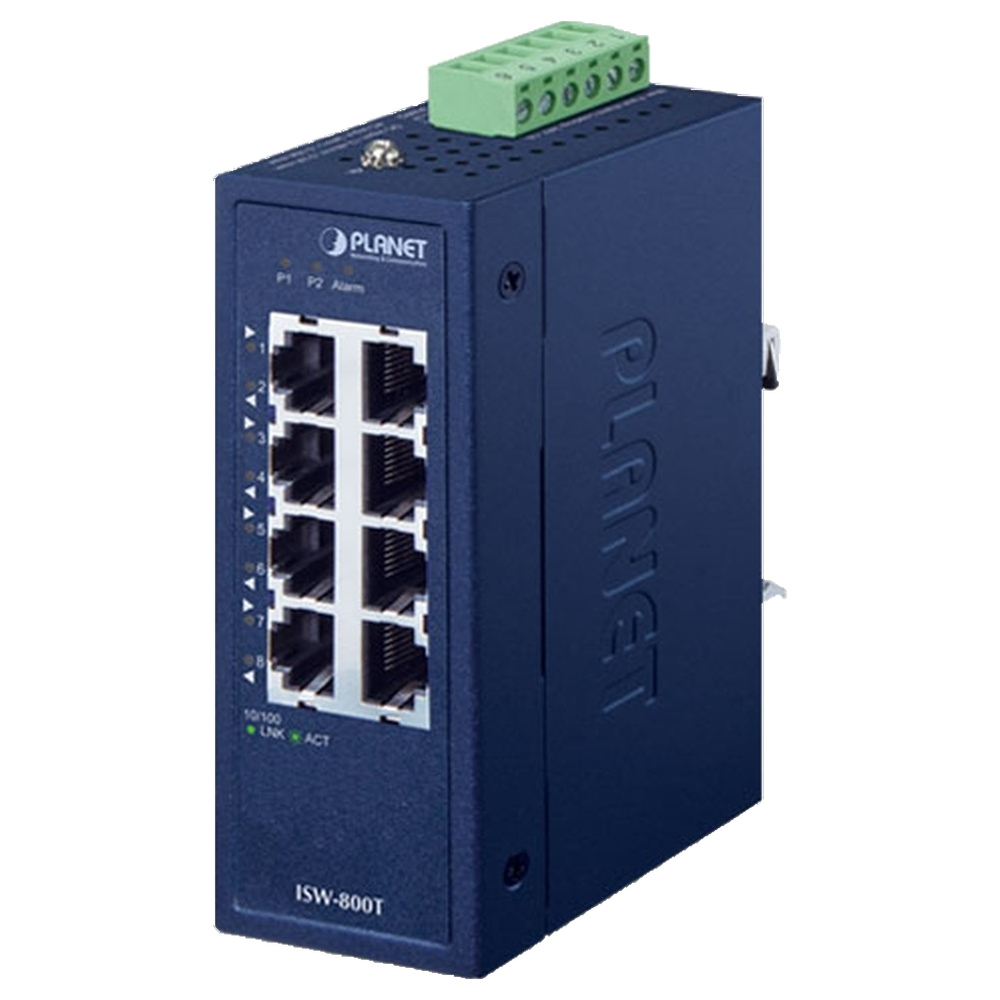

ISW-800T hardware version 2 provides eight copper Fast Ethernet connections for industrial equipment. Store-and-forward switching and flow control support straightforward local distribution, while IEEE 802.1p and PROFINET traffic prioritisation help supported priority traffic pass through.
Use a correctly rated 12–48V DC or supported 24V AC source. Redundant DC power inputs and a power-failure relay assist cabinet integration. The IP30 enclosure requires appropriate protection from water and other site hazards. This unmanaged, non-PoE model carries Ethernet data and does not power endpoint devices.
