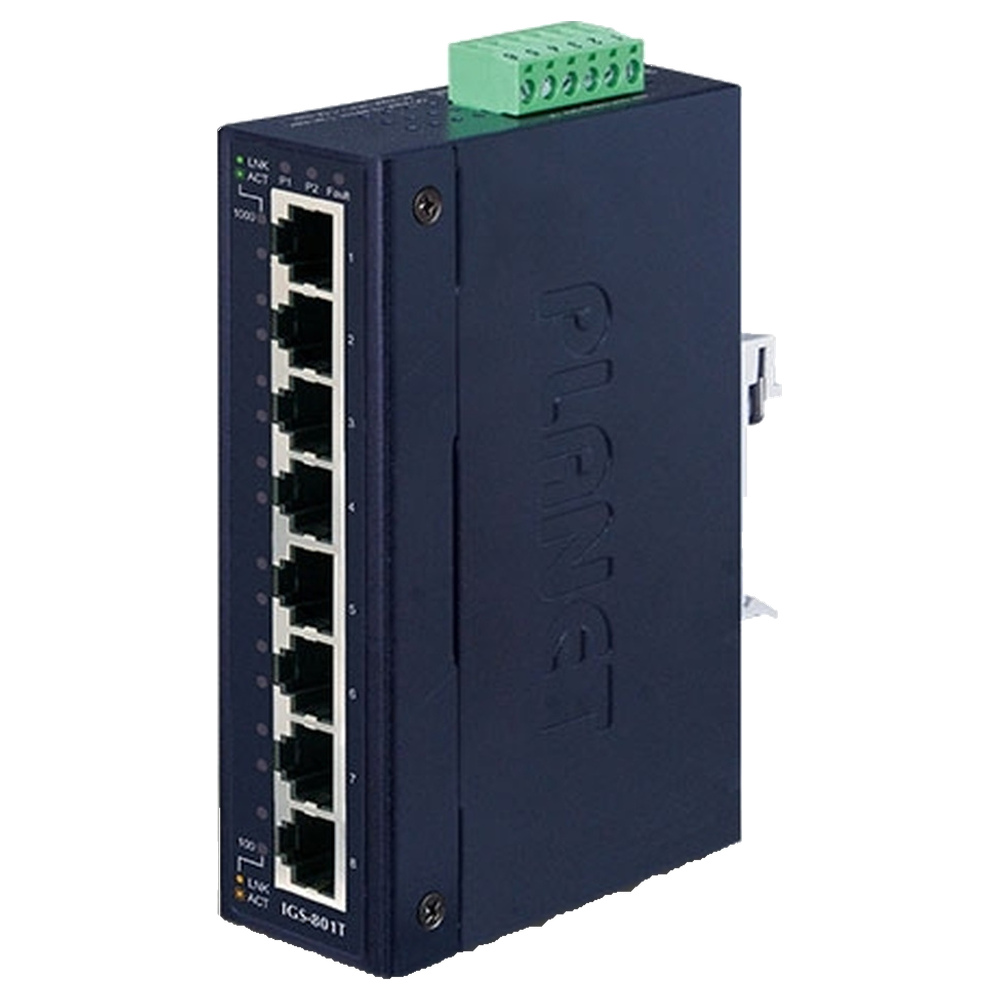

PLANET (Taiwan) 8-Port Industrial Unmanaged Gigabit Ethernet Switch - IGS-801T price in srilanka

Key features

8 ports

Ports

10/100/1000 Mbps

Port speed

Unmanaged

Management

3 years

Warranty

PLANET (Taiwan) 8-Port Industrial Unmanaged Gigabit Ethernet Switch – IGS-801T (3Y)

The PLANET (Taiwan) IGS-801T is a 8-port industrial unmanaged gigabit ethernet switch featuring 8 × 10/100/1000Mbps RJ45 ports. It delivers 16Gbps switching capacity, with 4K MAC entries, 1.5M-bit buffer, 9K jumbo frames, flow control and redundant DC power.

3 YEARS WARRANTY

රු 112,900.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters / originPLANET / Taiwan
ModelIGS-801T
10/100/1000BASE-T Ports8
Dimensions (W x D x H)32 × 87 × 135 mm (manual v4.2)
Weight476g
Power Requirements12~48V DC, redundant power with polarity reverse protection function, 24V AC power support
Power Consumption/ Dissipation6.72 watts/23BTU
InstallationDIN rail kit and wall-mount ear
Switch Processing SchemeStore-and-Forward
Address Table4K
Buffer1.5Mbits SRAM packet buffer
Flow ControlBack pressure for half duplex IEEE 802.3x pause frame for full duplex
Switch Fabric16Gbps
Throughput (packet per second)11.9Mpps
Jumbo Frame9K
Network Cables10/100/1000BASE-T: Cat3, 4, 5, 5e, 6 UTP cable (100 meters, max.) EIA/TIA-568 100-ohm STP (100 meters, max.)
Standards ComplianceIEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet
Stability TestingIEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration)
Regulatory ComplianceFCC Part 15 Class A, CE, UL
TemperatureOperating: -40~75 degrees C Storage: -40~75 degrees C
HumidityOperating and storage: 5–90% RH, non-condensing (manual v4.2)
ManagementUnmanaged
PoENo PoE output
IncludedSwitch, user manual, DIN-rail kit and wall-mount kit
OptionalSuitable external power supply
Store warranty3 YEARS WARRANTY

Key Features

  • Connect eight copper Ethernet devices at negotiated Gigabit speeds.
  • Support redundant DC inputs for greater supply continuity.
  • Monitor power and link status with the built-in indicators.
  • Mount the switch on a DIN rail or a wall.
  • Deploy within the documented −40–75°C operating range.

Product Information

IGS-801T distributes copper Gigabit Ethernet among industrial equipment without a software setup step. Eight auto-sensing ports, store-and-forward switching and flow control support local equipment connectivity. The device is suited to cabinet installations using the supplied DIN-rail and wall-mount hardware.

Provide a correctly rated external 12–48V DC source or supported 24V AC supply. The redundant DC inputs can support a backup source according to the manual. This is the non-PoE IGS-801T; devices needing PoE require a separate injector or other suitable power arrangement. The matching version 4.2 manual supplies the physical and environmental values where the current web table differs.

Complete your network connections

Match cable performance to the installation and check the exact switch interfaces before choosing accessories.

Explore Planet Network Switches in Sri Lanka: Buying Guide; Network Patch Cords; Structured Cabling Buying Guide.

Weight0.476 kg
