Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | WGS-803 |
| Network Connector | 8-port RJ45 for 10/100/1000BASE-T |
| Switch Architecture | Store and forward |
| MAC Address Table | 8K MAC address table with auto learning function |
| Data Buffer | 1Mbit |
| Switch Fabric | 16Gbps / non-blocking |
| Switch Throughput | 11.9Mpps@64bytes |
| Jumbo Frame | 9Kbytes |
| Flow Control | IEEE 802.3x pause frame for full duplex Back pressure for half duplex |
| LED Indicators | ■ Power LED: – Power ( Green ) ■ 10/100/1000BASE-T Port: – 1000 ( Green ) – LNK/ACT ( Green ) |
| Connector | ■ Removable 3-pin terminal block for power input – Pin 1/2 for DC Power – Pin 3 for earth ground ■ DC power jack with 2.0mm central pole |
| Power Requirements | 12~48V DC, 0.5A (max.) 24V AC, 0.5A(max.) |
| Power Consumption | 6 watts / 20BTU |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Enclosure | IP30 metal |
| Dimensions (W x D x H) | 148 x 24.2 x 134 mm |
| Weight | 498g |
| Installation | Wall mount, magnetic wall mount and DIN-rail kit |
| Standard Compliance | IEEE 802.3: Ethernet IEEE 802.3u: Fast Ethernet IEEE 802.3ab: Gigabit Ethernet IEEE 802.3x: Flow Control |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing | IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Operating | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -20 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standard Accessories | ■ User’s manual x 1 ■ Magnetic kit x 1 ■ DIN-rail kit x 1 ■ Wall-mounted kit x 1 ■ Dust cap x 8 ■ 3-pin terminal block connector x 1 |
| Management | Unmanaged |
| PoE | No PoE output |
| Optional | Suitable external power supply |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Add eight Gigabit copper connections in a flat wall installation.
- Choose wall, magnetic or DIN-rail mounting using the listed kits.
- Forward traffic without software configuration.
- Support larger frames with a 9K-byte maximum.
- Use supported DC or AC power for the cabinet arrangement.
Product Information

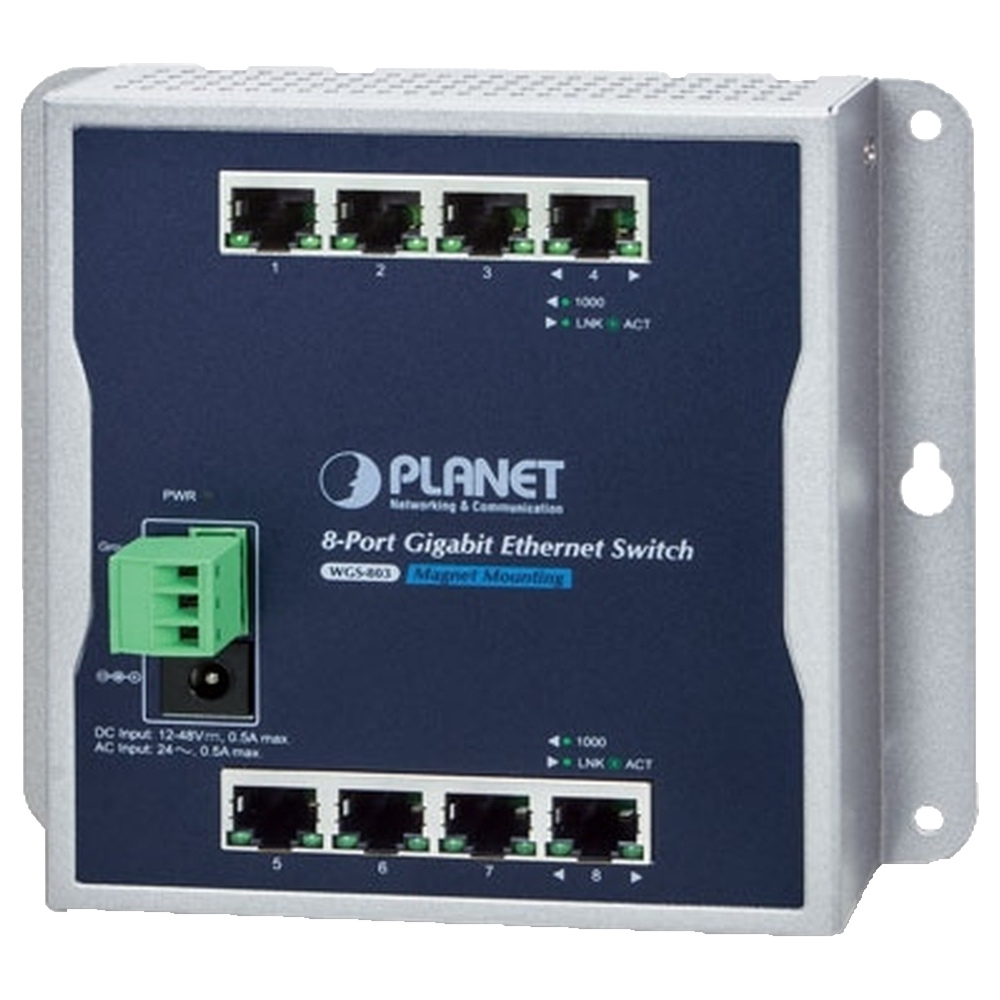

WGS-803 offers a flat industrial enclosure for locations where a conventional upright switch is awkward to install. Its eight copper ports negotiate 10, 100 or 1000Mbps and forward traffic without a management configuration. The listed magnetic, wall and DIN-rail kits provide several mounting choices.
The unit accepts supported 12–48V DC or 24V AC power; a suitable external supply is required. The RJ45 ports provide data connectivity and do not supply PoE. Plan cabling and power access around the flat enclosure, and keep the installation within the specified −10–60°C operating range.
