Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | WDAP-C3000AX |
| Interfaces | LAN 2 x 10/100/1000BASE-T RJ45 port Auto-negotiation and auto MDI/MDI-X |
| Antennas | Gain: 4 x Internal 4dBi antenna (2.4G x2, 5G x2) |
| Reset Button | Reset button on the rear side (Press over 5 seconds to reset the device to factory default) |
| LED Indicators | Power, SYS |
| Dimensions (W x D x H) | 185.82 x 185.82 x 36.6 mm |
| Weight | 380 ± 5g |
| Power Requirements | 48V DC IN, 0.5A, IEEE 802.3at PoE+ (WAN/PoE were changed port) 12V DC IN, 1.5A from DC Jack (5.5 x 2.1mm) |
| Power Consumption | < 15W |
| Mounting | Ceiling Mount |
| Standard | IEEE 802.11ax IEEE 802.11ac IEEE 802.11n IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11i IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T IEEE 802.3x flow control IEEE 802.11k, 802.11v, and 802.11r |
| Media Access Control | CSMA/CA |
| Data Modulation | 802.11ax: MIMO-OFDMA (BPSK / QPSK / 16QAM / 64QAM / 256QAM, 1024QAM) 802.11ac: MIMO-OFDM (BPSK / QPSK / 16QAM / 64QAM / 256QAM) 802.11a/g/n: OFDM (BPSK / QPSK / 16QAM / 64QAM) 802.11b: DSSS (DBPSK / DQPSK / CCK) |
| Band Mode | 2.4GHz / 5GHz concurrent mode |
| Frequency Range | 2.4GHz: FCC: 2.412~2.462GHz ETSI: 2.412~2.472GHz 5GHz: FCC: 5.180~5.240GHz, 5.745~5.825GHz ETSI: 5.180~5.700GHz |
| Operating Channels | ETSI: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 (13 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120,124,128,132, 136, 140 (19 Channels) FCC: 2.4GHz: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11 (11 Channels) 5GHz: 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116,120,124,128,132, 136, 140, 149, 153, 157, 161,165 (24Channels) 5GHz channel list may vary in different countries according to their regulations. |
| LAN | Static IP / Dynamic IP |
| WAN | Static IP Dynamic IP PPPoE/PPTP/L2TP |
| Wireless Mode | Access Point Gateway Repeater WISP MESH (The maximum number of Mesh supported device is 6 pcs.) |
| Channel Width | 20MHz, 40MHz, 80MHz, 160MHz |
| Encryption Security | WPA3 Personal, WPA2/WPA3 Personal,WPA2 Personal (AES), WPA2 Personal (TKIP), WPA2 Personal (TKIP+AES), WPA/WPA2 Personal (AES), WPA/WPA2 Personal (TKIP), WPA/WPA2 Personal (TKIP+AES), WPA2 Enterprise, WPA/WPA2 Enterprise |
| Wireless Security | Enable/Disable SSID Broadcast Wireless Max. 32 MAC address filtering User Isolation |
| Max. SSIDs | 8 (4 per radio) |
| Max. Clients | 256 (200 is suggested, depending on usage) |
| Wireless QoS | Supports Wi-Fi Multimedia (WMM) |
| Wireless Advanced | Auto Channel Selection 5-level Transmit Power Control Max (100%), Efficient (75%), Enhanced (50%), Standard (25%) or Min (15%) Client Limit Control, Coverage Threshold Wi-Fi channel analysis chart Seamless Roaming Beamforming BSS Coloring |
| Status Monitoring | Device status, wireless client List PLANET Smart Discovery DHCP client table System Log supports remote syslog server |
| VLAN | IEEE 802.1Q VLAN (VID: 1~4094) SSID-to-VLAN mapping to up to 4 SSIDs |
| Self-healing | Supports auto reboot settings per day/hour |
| Management | Remote management through PLANET DDNS/ Easy DDNS Configuration backup and restore Supports UPnP Supports IGMP Proxy Supports PPTP/L2TP/IPSec VPN Pass-through Supports Captive Portal, RADIUS Server/Client |
| Central Management | Applicable controllers: NMS APC, WS APC, VR/IVR APC, ICG APC, PLANET CloudViewer, PLANET CloudViewerPro |
| Temperature | Operating: -20~ 55 degrees C Storage: -40 ~ 70 degrees C |
| Humidity | Operating: 10 ~ 90% (non-condensing) Storage: 5 ~ 95% (non-condensing) |
| Regulatory | CE, RoHS |
| Maximum wireless PHY rates | 574Mbps at 2.4GHz; 2402Mbps at 5GHz |
| Net weight tolerance | 380 ± 5g; WooCommerce weight uses nominal 0.38 kg |
| Power adapter | Optional; 12V DC, 1.5A, 5.5 × 2.1 mm connector |
| Included | Access point, QR installation sheet, Ethernet cable and mounting kit |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Serve compatible Wi-Fi 6 clients with simultaneous dual-band coverage.
- Improve shared-airtime efficiency with OFDMA and MU-MIMO.
- Support roaming through 802.11k/v/r-capable client and network configurations.
- Separate wireless traffic with multiple SSIDs and VLAN mapping.
- Choose compatible PoE+ power for a cleaner ceiling installation.
Product Information

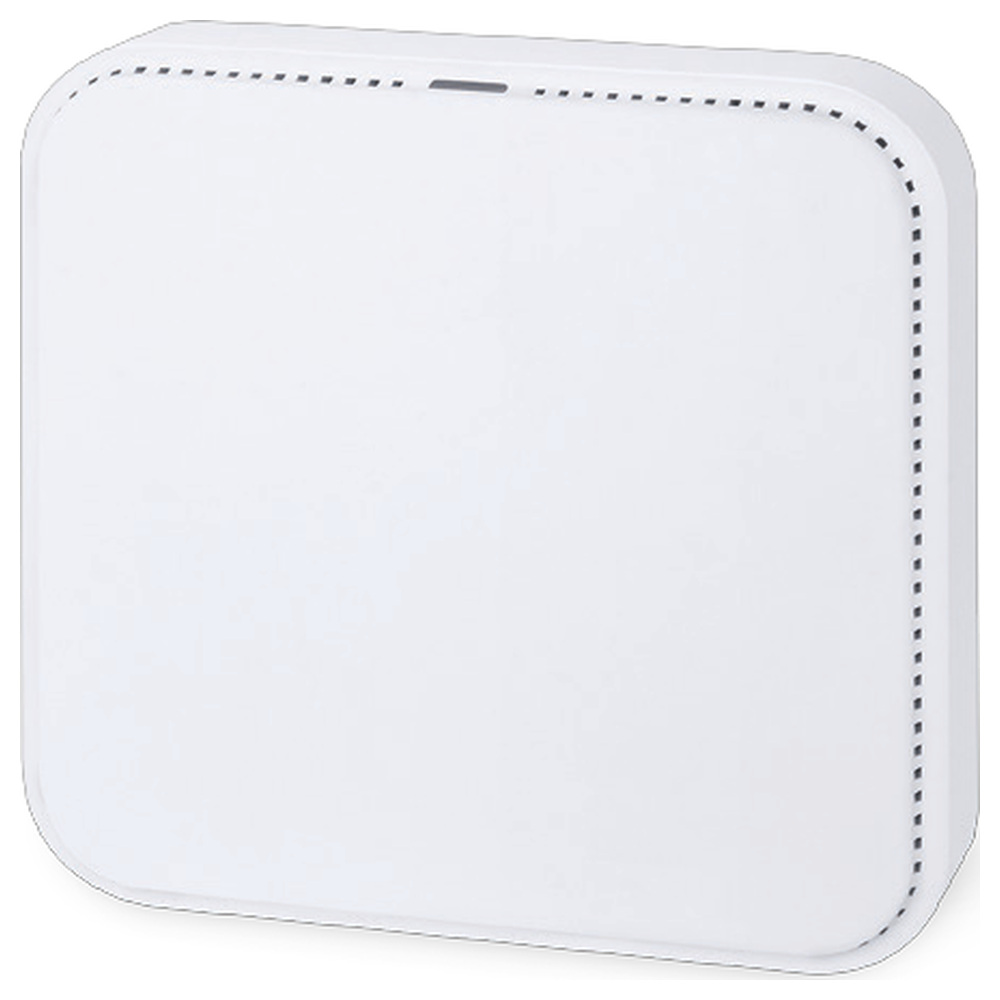

WDAP-C3000AX is a ceiling access point for offices, hospitality areas and shared wireless networks. Its AX3000 class combines two radio bands; the individual maximum link rates are 574Mbps and 2402Mbps, and actual throughput depends on clients, interference and the wired uplink. Two Gigabit ports provide wired connectivity, while supported PLANET controllers and management services can simplify multi-AP configuration.
Use a compatible IEEE 802.3at PoE+ source or a correctly rated 12V DC supply with the specified connector. The DC adapter is an optional accessory. WPA3-Personal, client isolation, SSID controls and VLAN mapping support network separation. Mesh and roaming behavior depend on firmware, topology and client support; regional radio settings must match the installation location.
