Specifications
| Brand headquarters / origin | PLANET / Taiwan |
|---|---|
| Model | POE-163 |
| Interface | “Data” Input Port: 1 x RJ45 STP “PoE (Data + Power)” Output Port: 1 x RJ45 STP AC Input Power Socket: 1 |
| LED Indicator | System: Power x 1 ( Green ) PoE Port: Active, PoE ready-in-use x 1 ( Green ) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 115 x 62.5 x 31 mm |
| Weight | 185g |
| Unit Output Voltage | DC 53V, 0.6A |
| Power Requirements | 100-240V AC, 50/60Hz, 0.75A |
| Power Consumption | 30 watts max. |
| Number of Devices that can be powered | 1 |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 95%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 95%, relative humidity, non-condensing |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE |
| PoE Power Output | DC 50-54V/30 watts |
| PoE Power Supply Type | Mid-span |
| Power Pin Assignment | 4/5(+), 7/8(-) |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class B, CE |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Add PoE+ power to a compatible Ethernet data link.
- Supply one compatible powered device with up to 30W at the injector.
- Pass through 10/100/1000Mbps connections without replacing the data switch.
- Use the integrated 100–240V AC input for mains-powered installation.
- Check power and PoE operation through the built-in indicators.
Product Information

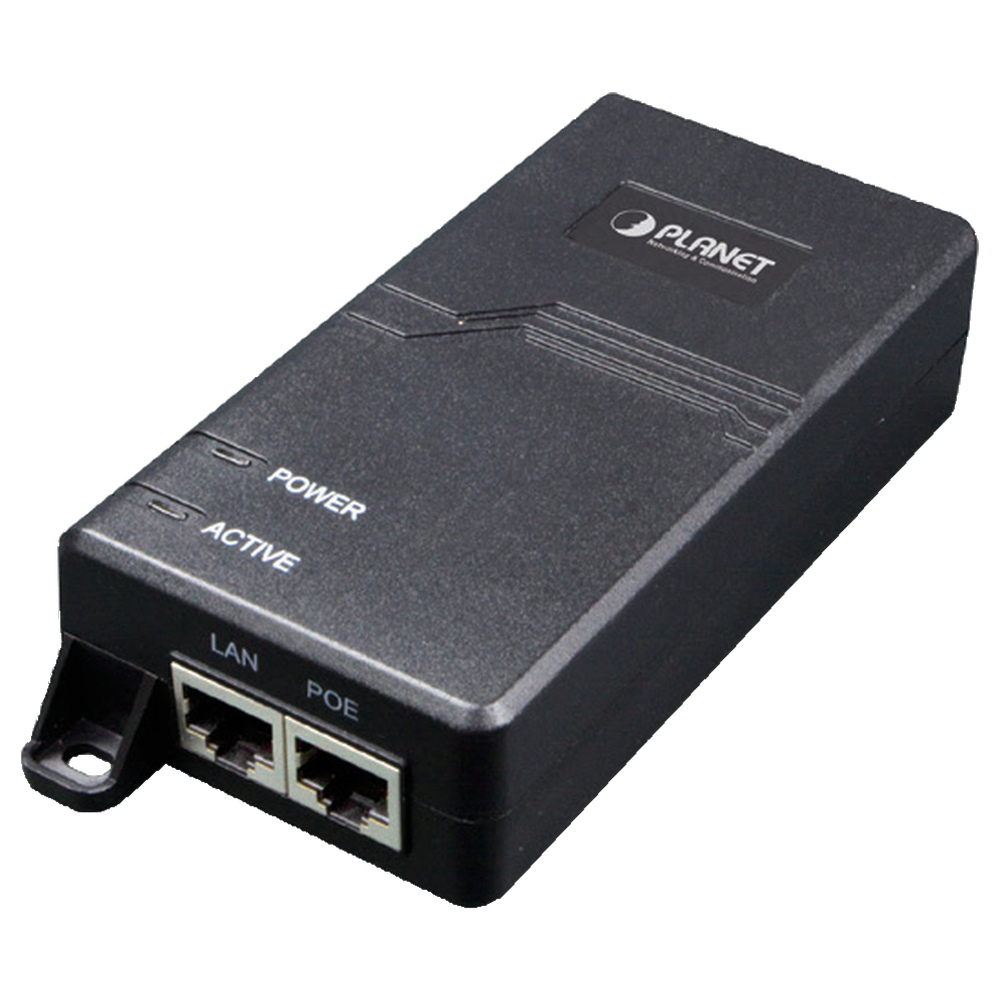

POE-163 adds standards-based power to one Ethernet link for a compatible access point, camera or other IEEE 802.3af/at powered device. Connect the data input to a network port and the combined output to the powered device. Its 10/100/1000Mbps pass-through capability must be matched by the equipment and cable at both ends.
The injector uses 100–240V AC mains power and provides a maximum 30W at the PSE output; power available to the device is lower after cable losses. It is a midspan injector, not a network switch or passive DC adapter. Confirm the connected device supports the stated PoE standards and use suitable complete Ethernet cabling. The 3-year warranty is supplied under the configured store offer.
