Technical Specifications

General Information

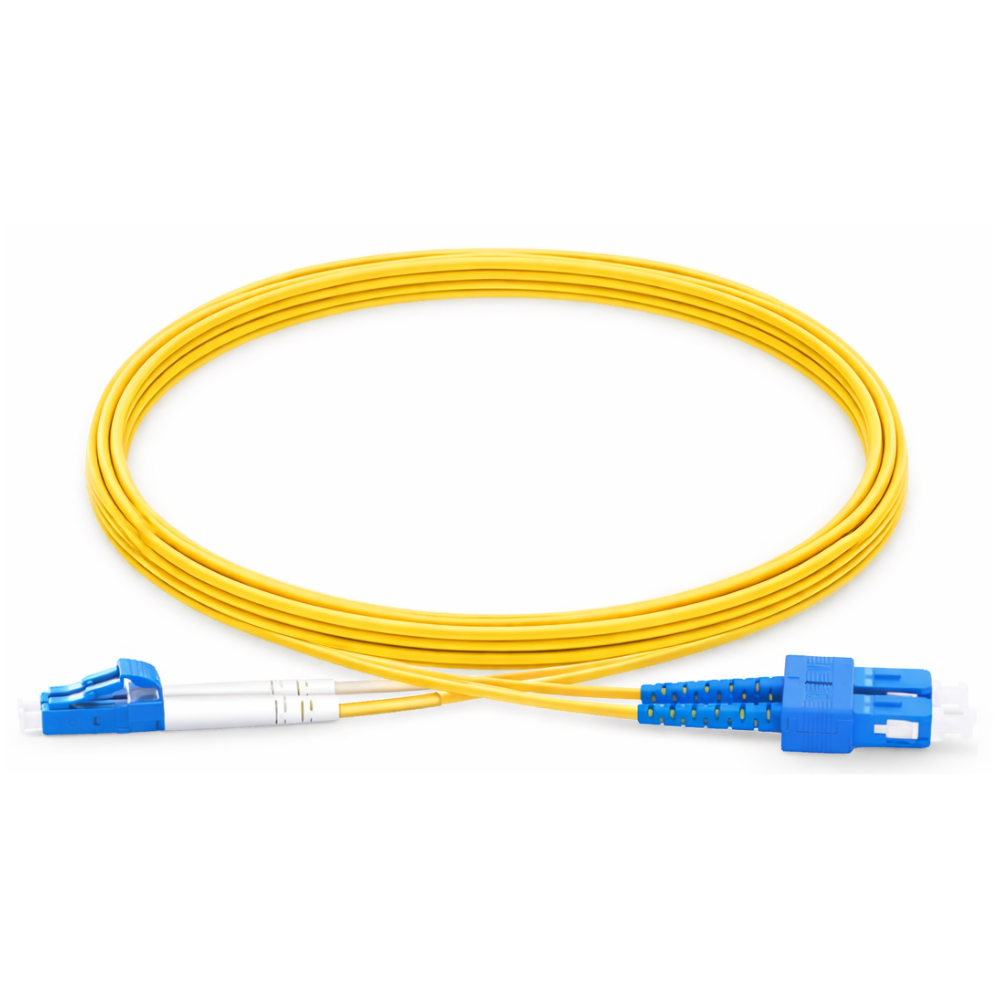

• Product Series: SC-LC Duplex Single Mode Fiber Optical Patch Cord

• Available Part Numbers & Lengths:

  • 118-02211: 1 Meter

  • 118-02212: 2 Meters

  • 118-02213: 3 Meters

  • 118-02215: 5 Meters

  • 118-02210: 10 Meters

• Connector Type: SC to LC Duplex

• Polish Type: UPC

• Connector Color: Blue

• Fiber Type: Single Mode

• Core/Cladding: 9/125 µm

• Cable Jacket Color: Yellow

• Sheath Material: PVC/LSZH available

• Overall Color: Blue

Optical Performance

• Insertion Loss (Typical): ≤ 0.20 dB

• Insertion Loss (Maximum): ≤ 0.30 dB

• Return Loss: ≥ 50 dB

• Repeatability: ≤ 0.10 dB

• Changeability: ≤ 0.20 dB

Mechanical & Environmental

• Durability: > 1000 mating cycles

• Operating Temperature: -40°C to +75°C

• Storage Temperature: -40°C to +70°C

• Tensile Strength: 100N to 1000N

• Lateral Pressure: 100N/100mm to 1000N/100mm

Certifications & Compliance

• RoHS Compliant

• UL Certified

• CE Marked

• ISO 9001 Certified

• Telcordia GR-326-CORE Compliant

• UL94V-0 Rated

Applications

• Data Center Cross-Connections

• Telecommunications Equipment

• Network Switch to Transceiver Links

• Media Converter Connections

• FTTx (Fiber to the x) Deployments

• Enterprise Network Infrastructure

• Equipment Interfacing Between Different Form Factors
