AMD AutoCAD Workstation – Full Product Specification
Included in the full set
- AMD desktop tower with the processor, memory, SSD, motherboard, CPU cooler, power supply and graphics configuration listed below
- ViewSonic VX2758A-2K-PRO-4 27-inch QHD 180Hz IPS monitor
- Logitech MK120 wired USB keyboard and mouse
The listed price covers this complete set. Windows 11 Professional and Microsoft Office 2024 Pro Plus are listed in the software specification. The estimated packed weight includes the tower, monitor, keyboard, mouse and packaging.
| Specification | Details |
|---|---|
| Product Name | AMD AutoCAD Workstation |
| Processor | AMD Ryzen 7 9700X Desktop Processor |
| Processor Architecture | Zen 5 |
| Processor Cores / Threads | 8 Cores / 16 Threads |
| Processor Speed | 3.8GHz Base Frequency, up to 5.5GHz Max Boost |
| Processor L2 Cache | 8MB |
| Processor L3 Cache | 32MB |
| Processor Default TDP | 65W |
| Integrated Graphics | AMD Radeon Graphics |
| CPU Socket | AMD AM5 |
| CPU Cooler | Noctua NH-D12L AM5 Dual-Tower Air Cooler |
| Cooler Height | 145mm |
| Cooler Fan | 1 × 120mm PWM Fan |
| Motherboard | ASUS PRIME B650M-A WIFI II |
| Motherboard Form Factor | Micro-ATX |
| Chipset | AMD B650 |
| Supported Processor Series | AMD Ryzen 9000 / 8000 / 7000 Series; compatible BIOS required |
| Memory / RAM | Kingston 32GB DDR5 RAM |
| Memory Configuration | 2 × 16GB DDR5; dual channel |
| Memory Slots | 4 × DDR5 DIMM Slots |
| Memory Features | Motherboard supports dual-channel DDR5 and EXPO; supplied JEDEC modules operate at supported settings |
| Storage | Crucial E100 1TB NVMe SSD |
| Motherboard Storage Connectors | 2 × M.2 Slots, 4 × SATA 6Gb/s Ports |
| M.2 Primary Slot | PCIe 5.0 x4 |
| Motherboard Expansion Slots | 1 × PCIe 4.0 x16 (x8 mode with Ryzen 8600G/8700G, x16 with Ryzen 9000), 2 × PCIe 4.0 x16 (x1 mode) |
| Onboard WiFi | WiFi 6, 2×2, 2.4GHz / 5GHz |
| Onboard Bluetooth | Bluetooth 5.2 |
| Motherboard Rear Network Port | 1 × Realtek 2.5Gb Ethernet LAN Port |
| Motherboard Rear USB Ports | 2 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1 Type-A, 4 × USB 2.0 Type-A |
| Motherboard Rear Display Ports | 1 × HDMI, 1 × DisplayPort, 1 × VGA |
| Motherboard Rear Audio Ports | 3 × Audio Jacks |
| Motherboard Internal USB Headers | 1 × USB 3.2 Gen 1 Type-C Connector, 1 × USB 3.2 Gen 1 Header, 2 × USB 2.0 Headers |
| Motherboard Internal Audio Header | Front Panel Audio Header |
| Motherboard Special Rear Button | BIOS FlashBack Button |
| Power Supply | MSI MAG A850GL PCIE5 850W Gold Fully Modular Power Supply |
| PSU Efficiency Rating | 80 PLUS Gold |
| PSU Dimensions | 140 × 150 × 86mm |
| Dedicated Graphics Card | ASUS Dual GeForce RTX 5060 Ti 8GB GDDR7 OC Graphics Card |
| Graphics Engine | NVIDIA GeForce RTX 5060 Ti |
| Graphics Memory | 8GB GDDR7 |
| Graphics CUDA Cores | 4608 CUDA Cores |
| Graphics Memory Speed | 28Gbps |
| Graphics Memory Interface | 128-bit |
| Graphics Bus Standard | PCI Express 5.0 |
| Graphics Max Digital Resolution | Up to 7680 × 4320 |
| Graphics Output Ports | 1 × HDMI 2.1b, 3 × DisplayPort 2.1b |
| Graphics Maximum Display Support | Up to 4 Displays |
| Graphics Slot Size | 2.5 Slot |
| Graphics Card Dimension | 229 × 120 × 50mm |
| Graphics Recommended PSU | 550W |
| Monitor | ViewSonic VX2758A-2K-PRO-4 27-inch 2K 180Hz Gaming Monitor |
| Monitor Screen Size | 27-inch |
| Monitor Resolution | QHD / 2K 2560 × 1440 |
| Monitor Refresh Rate | 180Hz |
| Monitor Response Time | 1ms MPRT |
| Monitor Panel Type | SuperClear IPS Panel |
| Monitor Adaptive Sync | AMD FreeSync Support |
| Monitor Input Ports | 2 × HDMI 2.0, 1 × DisplayPort |
| Keyboard & Mouse | Logitech MK120 Wired USB Keyboard and Mouse Included |
| Operating System | Windows 11 Professional |
| Office Software | Microsoft Office 2024 Pro Plus License |
| Recommended Usage | AutoCAD, 2D drafting, 3D design, architecture work, engineering drawings, SketchUp, Revit, Lumion entry workflows, rendering, presentations, Adobe software, Microsoft Office work, business productivity, multitasking, online meetings, and general workstation use |
| Warranty | 3 Years |
| Memory Module Model | Kingston KCP556US8-16 16GB DDR5 UDIMM |
| Memory Operating Speed | Set to a CPU-supported stable speed; module rating does not guarantee the assembled system speed |
| Casing | Antec VX320 ARGB Mid Tower Case |
| Casing Pre-installed Fans | 4 × ARGB Fans |
| Casing CPU Cooler Clearance | 165mm |

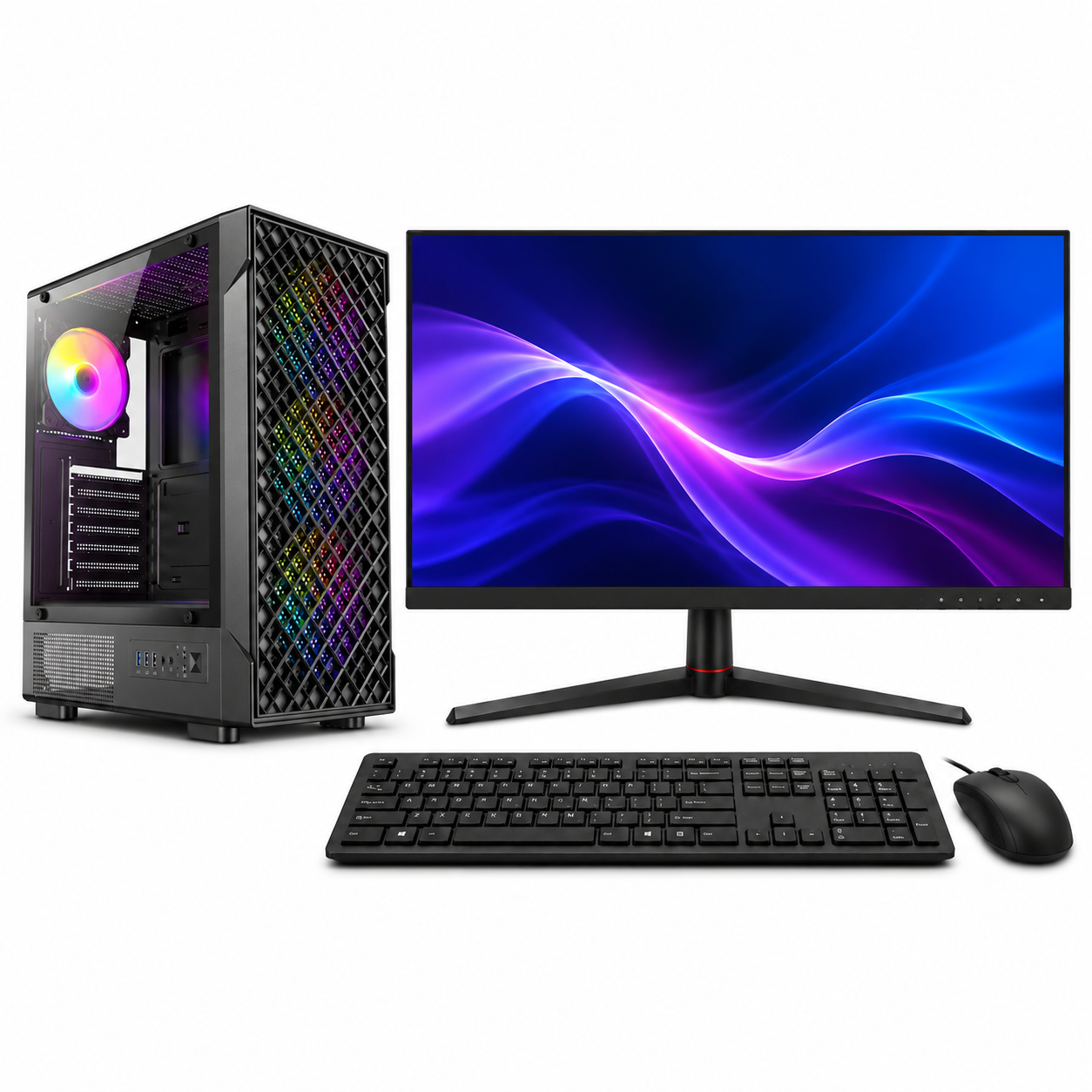

| Product Image | Illustrative full-set image showing the Antec VX320 tower, specified monitor, keyboard and mouse. Final supplied components follow the listed specification. |
| Monitor Color Gamut | 95% DCI-P3 coverage (typical), 137% sRGB size (typical) |
| Casing Motherboard Support | ATX / Micro-ATX / Mini-ITX |
| Estimated Packed Full-Set Weight | Approximately 19.5 kg including tower, all supplied monitors, keyboard, mouse, cables and packaging. Estimate only; verify the actual packed weight before dispatch. Courier volumetric weight may differ. |
Build CAD drawings and 3D models with a dedicated graphics card, responsive storage and memory for project files.
