AMD Studio Video Editing – Full Product Specification
| Specification | Details |
|---|---|
| Product Name | AMD Studio Video Editing |
| Processor | AMD Ryzen 9 9950X Desktop Processor |
| Processor Architecture | Zen 5 |
| Processor Cores / Threads | 16 Cores / 32 Threads |
| Processor Speed | 4.3GHz Base Frequency, up to 5.7GHz Max Boost |
| Processor L2 Cache | 16MB |
| Processor L3 Cache | 64MB |
| Processor Default TDP | 170W |
| Integrated Graphics | AMD Radeon Graphics |
| CPU Socket | AMD AM5 |
| CPU Cooler | Noctua NH-D12L AM5 Dual-Tower Air Cooler |
| Cooler Height | 145mm |
| Cooler Fan | 1 × 120mm PWM Fan |
| Motherboard | ASUS TUF GAMING B850-PLUS WIFI |
| Motherboard Form Factor | ATX |
| Chipset | AMD B850 |
| Supported Processor Series | AMD Ryzen 9000 / 8000 / 7000 Series; compatible BIOS required |
| Memory / RAM | Kingston 128GB DDR5 RAM |
| Memory Configuration | 4 × 32GB DDR5; dual channel, reduced clock may be required |
| Memory Slots | 4 × DDR5 DIMM Slots |
| Memory Features | Motherboard supports dual-channel DDR5 and EXPO; supplied JEDEC modules operate at supported settings |
| Storage | 4TB NVMe SSD (2 × Crucial E100 2TB) + Seagate Barracuda 2TB HDD |
| Motherboard Storage Connectors | 3 × M.2 Slots, 4 × SATA 6Gb/s Ports |
| M.2 Primary Slot | PCIe 5.0 x4 |
| Motherboard Expansion Slots | 1 × PCIe 5.0 x16, 1 × PCIe 4.0 x16 (x4 mode), 2 × PCIe 4.0 x1 |
| Onboard WiFi | WiFi 7; full functionality requires Windows 11 24H2 or later and compatible network |
| Onboard Bluetooth | Bluetooth 5.4; module dependent |
| Motherboard Rear Network Port | 1 × Realtek 2.5Gb Ethernet LAN Port |
| Motherboard Rear USB Ports | 1 × USB 20Gbps Type-C, 3 × USB 10Gbps Type-A, 4 × USB 5Gbps Type-A, 2 × USB 2.0 Type-A |
| Motherboard Rear Display Ports | 1 × HDMI, 1 × DisplayPort |
| Motherboard Rear Audio Ports | 5 × Audio Jacks |
| Motherboard Internal USB Headers | 1 × USB 10Gbps Type-C Connector, 1 × USB 5Gbps Header, 2 × USB 2.0 Headers |
| Motherboard Internal Audio Header | Front Panel Audio Header |
| Motherboard Special Rear Button | BIOS FlashBack Button |
| Power Supply | MSI MAG A850GL PCIE5 850W Gold Fully Modular Power Supply |
| PSU Efficiency Rating | 80 PLUS Gold |
| PSU Dimensions | 140 × 150 × 86mm |
| Graphics Max Dynamic Frequency | Up to 2.0GHz |
| Dedicated Graphics Card | MSI GeForce RTX 5070 Ti VENTUS 3X OC 16GB GDDR7 Graphics Card |
| Graphics Engine | NVIDIA GeForce RTX 5070 Ti |
| Graphics Memory | 16GB GDDR7 |
| Graphics CUDA Cores | 8960 CUDA Cores |
| Graphics AI Performance | 1406 TOPS |
| Graphics Memory Speed | 28Gbps |
| Graphics Memory Interface | 256-bit |
| Graphics Bus Standard | PCI Express 5.0 |
| Graphics OC Mode Clock | 2497MHz Extreme Performance (MSI Center) |
| Graphics Default Boost Clock | 2482MHz |
| Graphics Max Digital Resolution | Up to 7680 × 4320 |
| Graphics Output Ports | 1 × HDMI 2.1b, 3 × DisplayPort 2.1b |
| Graphics Maximum Display Support | Up to 4 Displays |
| Primary Storage | 4TB NVMe SSD |
| Secondary Storage | 2TB Hard Disk |
| Total Installed Storage | 6TB Total Storage |
| Casing | ASUS TUF Gaming GT301 ARGB Casing |
| Casing Type | ATX Mid Tower Gaming Case |
| Casing Motherboard Support | ATX Motherboard Support |
| Casing Drive Bays | 2 × 2.5-inch / 3.5-inch Combo Bays, 4 × 2.5-inch Bays |
| Casing Front Ports | 2 × USB 3.1 Gen 1, 1 × Microphone Jack, 1 × Headphone Jack |
| Casing Side Panel | Tempered Glass Left Side Panel |
| Casing Expansion Slots | 7 Expansion Slots |
| Casing Radiator Support | Front Radiator Support |
| Monitor | ASUS ProArt PA328CGV 32-inch Professional Monitor |
| Monitor Screen Size | 32-inch |
| Monitor Resolution | QHD / 2K 2560 × 1440 |
| Monitor Refresh Rate | Up to 165Hz |
| Monitor Panel Type | IPS Panel |
| Monitor Viewing Angle | 178° Horizontal / 178° Vertical |
| Monitor Color Accuracy | Factory Calibrated, Calman Verified, Delta E < 2 |
| Monitor Color Gamut | 100% sRGB / Rec.709, 95% DCI-P3 |
| Monitor HDR Support | HDR10 |
| Monitor Display Colors | 1.07 Billion Colors / 10-bit |
| Monitor Response Time | 5ms GTG |
| Monitor Adaptive Sync | Adaptive-Sync / Variable Refresh Rate Support |
| Monitor USB-C Support | USB-C with 90W Power Delivery |
| Monitor Connectivity | 1 × USB-C, 1 × DisplayPort 1.4, 2 × HDMI 2.0, 4 × USB 3.2 Gen 1 Type-A, Earphone Jack |
| Monitor Built-in Speakers | 2W × 2 Speakers |
| Monitor Ergonomics | Height Adjust, Tilt, Swivel, Pivot, VESA Mount Support |
| Keyboard & Mouse | Logitech MK120 Wired USB Keyboard and Mouse Included |
| Operating System | Windows 11 Professional |
| Office Software | Microsoft Office 2024 Pro Plus License |
| Recommended Usage | Studio video editing, 4K video editing, Adobe Premiere Pro, After Effects, DaVinci Resolve, Photoshop, Illustrator, Blender, 3D rendering, animation, motion graphics, AI creative tools, color grading, content creation, studio workflows, professional design work, business productivity, presentations, Microsoft Office work, and high-performance multitasking |
| Warranty | 3 Years |
| Memory Module Model | Kingston KVR56U46BD8-32 32GB DDR5 UDIMM |
| Memory Operating Speed | Set to a CPU-supported stable speed; module rating does not guarantee the assembled system speed |
| Graphics Card Dimension | 303 × 121 × 49mm |
| Graphics Power Connector | 1 × 16-pin |
| Graphics Slot Size | Approximately 2.5 slots (49mm thickness) |

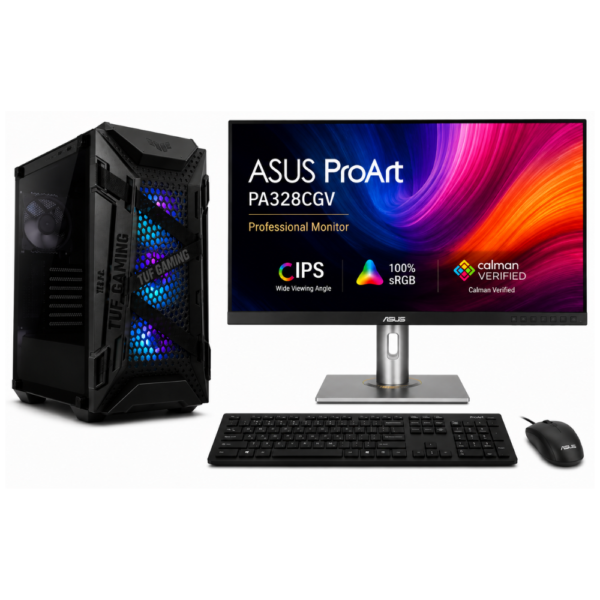

| Product Image | Illustrative full-set reference; final casing and accessories follow the listed specification |
| Estimated Packed Full-Set Weight | Approximately 34 kg including tower, all supplied monitors, keyboard, mouse, cables and packaging. Estimate only; verify the actual packed weight before dispatch. Courier volumetric weight may differ. |
Edit footage, organise media and build effects timelines with dedicated NVIDIA graphics and fast project storage.
