Specifications
| LEDs / Power | 1 x LED (Green) |
|---|---|
| LEDs / Input | 1 x LED (Green) |
| LEDs / Video Output | 10 x LED (Green) |
| Video Input / Interfaces | 1 x HDMI Type A Female (Black) |
| Video Input / Impedance | 100 Ω |
| Video Input / Max. Distance | 5m (at 4K resolution) |
| Video Output / Interfaces | 10 x HDMI Type A Female (Black) |
| Video Output / Impedance | 100 Ω |
| Video Output / Max. Distance | 10m (at 4K resolution) |
| Video / Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Video / Max. Pixel Clock | 340 MHz |
| Video / Compliance | HDMI (3D, Deep Color, 4K); HDCP 1.4 Compatible |
| Video / Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black)Baud Rate: 19200 / Data Bits: 8 / Stop Bits:1 / Parity: No / Flow Control: No |
| Control / EDID Settings | EDID Switch x1EDID Mode: Default (1080p) / Port 1 / Auto |
| Connectors / Power | 1 x DC Jack |
| Connectors / USB Port | 1 x Micro USB (FW upgrade) |
| Connectors / Power Consumption | DC5V:4.34W:20BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 40 °C |
| Environmental / Storage Temperature | -20 – 60 °C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 2.10 kg ( 4.63 lb ) |
| Physical Properties / Dimensions (L x W x H) | 43.72 x 15.78 x 4.40 cm (17.21 x 6.21 x 1.73 in.) |
| Physical Properties / Carton Lot | 01 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VS0110HA 10-Port 4K HDMI Splitter; 1x Power Adapter; 1x Mounting Kit; 1x User Instructions |
Key Features
- Drive ten HDMI displays from one connected source.
- Support 4K at 60 Hz with 4:2:0 chroma sampling.
- Manage display negotiation through selectable EDID modes.
- Integrate distribution control through a bidirectional RS-232 port.
- Install the 1U chassis with the supplied mounting kit.
Product Information

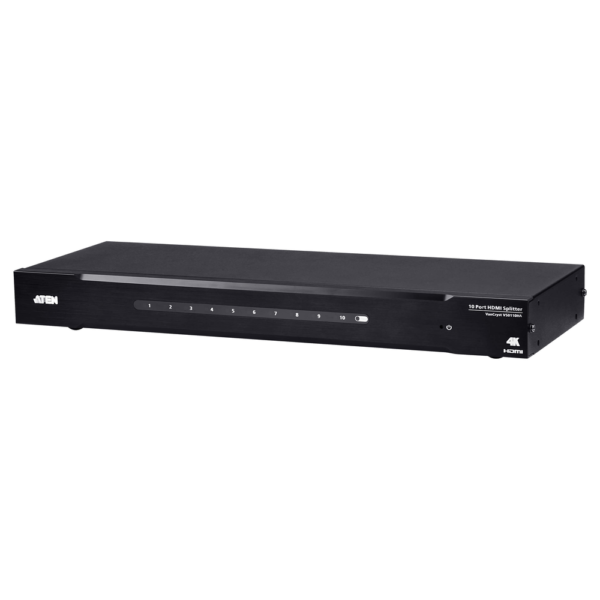

Distribute one HDMI programme to a larger group of displays from a single rack-mounted splitter. It suits shared presentation, retail display and institutional AV systems that need the same content across ten screens.
At 4K resolution, the specified input cable limit is 5 m and the output cable limit is 10 m. All displays receive the shared input; independent matrix routing is not provided. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VS0110HA 10-Port 4K HDMI Splitter; 1x Power Adapter; 1x Mounting Kit; 1x User Instructions.
