Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CL5716M |
| Computer Connections — Direct | 16 |
| Computer Connections — Maximum | 512 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors — KVM Ports | 16 x SPHD Female (Yellow) |
| Connectors — Daisy Chain Ports | 1 x DB-25 Male |
| Connectors — Firmware Upgrade | 1 x RJ-11 Female |
| Connectors — Power | 1 x IEC 60320/C14 |
| Connectors — External Console Ports | 1 x SPHD Male (Yellow) |
| Connectors — External Mouse Port | 1 x USB Type A Female (Front) |
| Connectors — USB Port | 1 x USB Type A Female |
| Port Selection | 2 x Pushbutton |
| Switches — Station Selection | 2 x Pushbutton |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| Switches — Firmware Upgrade | 1 x Slide Switch |
| Switches — Power | 1 x Rocker Switch |
| Switches — LCD Control | 4 x Pushbutton |
| Switches — LCD Power | 1 x LED Pushbutton |
| LEDs — Online | 16 (Orange) |
| LEDs — Port ID | 2 x 7-segment LED Display (Orange) |
| LEDs — Station ID | 2 x 7-segment LED Display (Orange) |
| LEDs — Power | 1 (Dark Green) |
| LEDs — Lock | 1 x Num Lock (Green); 1 x Caps Lock (Green); 1 x Scroll Lock (Green) |
| LEDs — LED Illumination Light | 1 x LED Illumination Light |
| Panel Spec — LCD Module | 17″ TFT-LCD |
| Panel Spec — Resolution | 1280 x 1024 @ 75 Hz |
| Panel Spec — Response time | 5 ms |
| Panel Spec — Viewing Angle | 170° (H), 160° (V) |
| Panel Spec — Pixel Pitch | 0.264 mm x 0.264 mm |
| Panel Spec — Support Color | 16.77M colors |
| Panel Spec — Contrast Ratio | 1000 : 1 |
| Panel Spec — Luminance | 250 cd/m² |
| Input Video Resolution | up to 1920 × 1200 @ 60 Hz; 1280 × 1024 @ 75 Hz, DDC2B |
| Scan Interval | 1-255 seconds |
| Emulation — Keyboard / Mouse | PS/2, USB |
| Maximum Input Power Rating | 100-240V AC, 50/60Hz, 1A |
| Power Consumption | AC110V:24.7W:129BTU/h; AC220V:25.8W:134BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0-40°C |
| Environmental — Storage Temperature | -20-60°C |
| Environmental — Humidity | 0-85% RH, Noncondensing |
| Physical Properties — Housing | Metal + Plastic |
| Physical Properties — Rail Type | Single Rail |
| Physical Properties — Weight | 13.59 kg ( 29.93 lb ) |
| Physical Properties — Dimensions (L x W x H) | 48.00 x 64.27 x 4.40 cm ; (18.9 x 25.3 x 1.73 in.) |
| Supplied accessories | 1x CL5716 LCD KVM Switch with standard Rack Mount Kit; 2x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft); 1x Firmware Upgrade Cable; 1x Power Cord (AC Power Models); 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Combine 16-port switching and a 17-inch display in one console.
- Save working space with a sliding 1U rack drawer.
- Select systems through the OSD, hotkeys or front-panel controls.
- Support compatible PS/2 and USB computers.
- Expand through a supported daisy chain to 512 computers.
Product Information

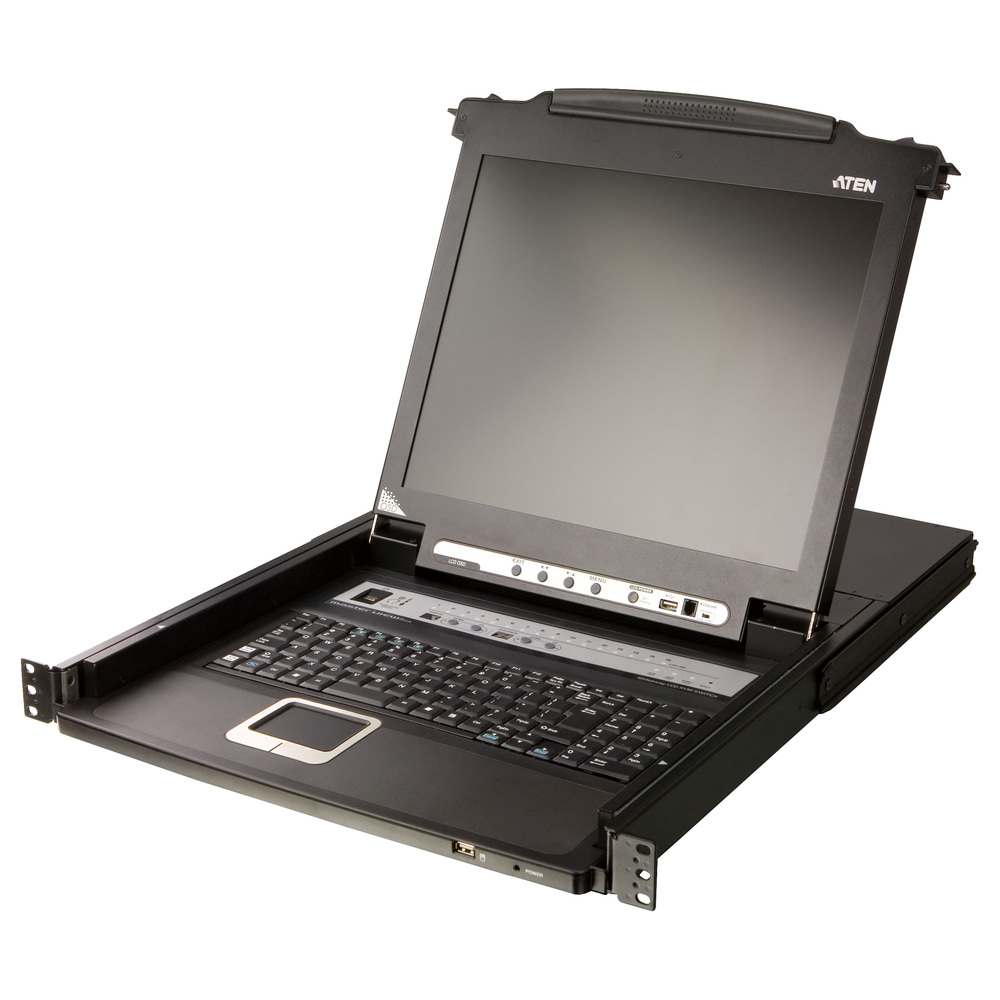

Administer 16 computers from a 17-inch LCD, keyboard and touchpad built into one rack drawer. The on-screen selection menu and hotkeys make it practical to move between systems during maintenance. A supported daisy chain can increase the installation to 512 computers when the necessary additional switches and cables are installed.
The LCD panel remains 1280 x 1024 when higher input resolutions are accepted and scaled. Only two computer KVM cables are supplied; additional cables and expansion switches are separate. USB peripheral sharing requires USB cable-set connections; it does not work through PS/2 cable sets.
Included: 1x CL5716 LCD KVM Switch with standard Rack Mount Kit; 2x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft); 1x Firmware Upgrade Cable; 1x Power Cord (AC Power Models); 1x User Instructions.
