Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CS74U |
| Computer Connections | 4 |
| Port Selection | Pushbutton |
| Connectors — Console Ports | 2 x USB Type A Female (Black); 1 x HDB-15 Female (Blue); 1 x mini stereo Jack Female (Pink); 1 x mini stereo Jack Female (Green) |
| Connectors — KVM Ports | 4 x SPHD-18 Female (Green) |
| Connectors — Power | 1 x DC 5V Jack; Note: Please contact your ATEN dealer or Technical Support for the compatible ATEN power adapter. |
| LEDs — Online | 4 (Orange) |
| LEDs — Selected | 4 (Green) |
| Switches — Selected | 4 x Pushbuttons |
| Video | 2048 x 1536 @ 60 Hz; DDC2B |
| Power Consumption | DC5V:0.177W:5BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0-50°C |
| Environmental — Storage Temperature | -20-60°C |
| Environmental — Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties — Housing | Metal |
| Physical Properties — Weight | 0.64 kg ( 1.41 lb ) |
| Physical Properties — Dimensions (L x W x H) | 20.00 x 7.65 x 4.40 cm ; (7.87 x 3.01 x 1.73 in.) |
| Supplied accessories | 1x CS74U 4-Port USB KVM Switch; 2x Custom KVM Cable (VGA, USB, Audio; 1.2 m/4 ft); 2x Custom KVM Cable (VGA, USB, Audio; 1.8 m/6 ft); 1x User Instructions; ; Note: The custom KVM cable set is designed for CS74U, transmitting video, audio, and USB signals. Available lengths are 1.2 m (LIN5-23X5-X31G) and 1.8 m (LIN5-23X5-X32G). Contact your ATEN dealer for details. |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Operate four computers with one USB/VGA console.
- Select a system directly from the front-panel buttons.
- Share compatible analog speaker and microphone connections.
- Maintain detailed VGA output up to 2048 x 1536 at 60 Hz.
- Connect all four systems with the supplied mixed-length cable set.
Product Information

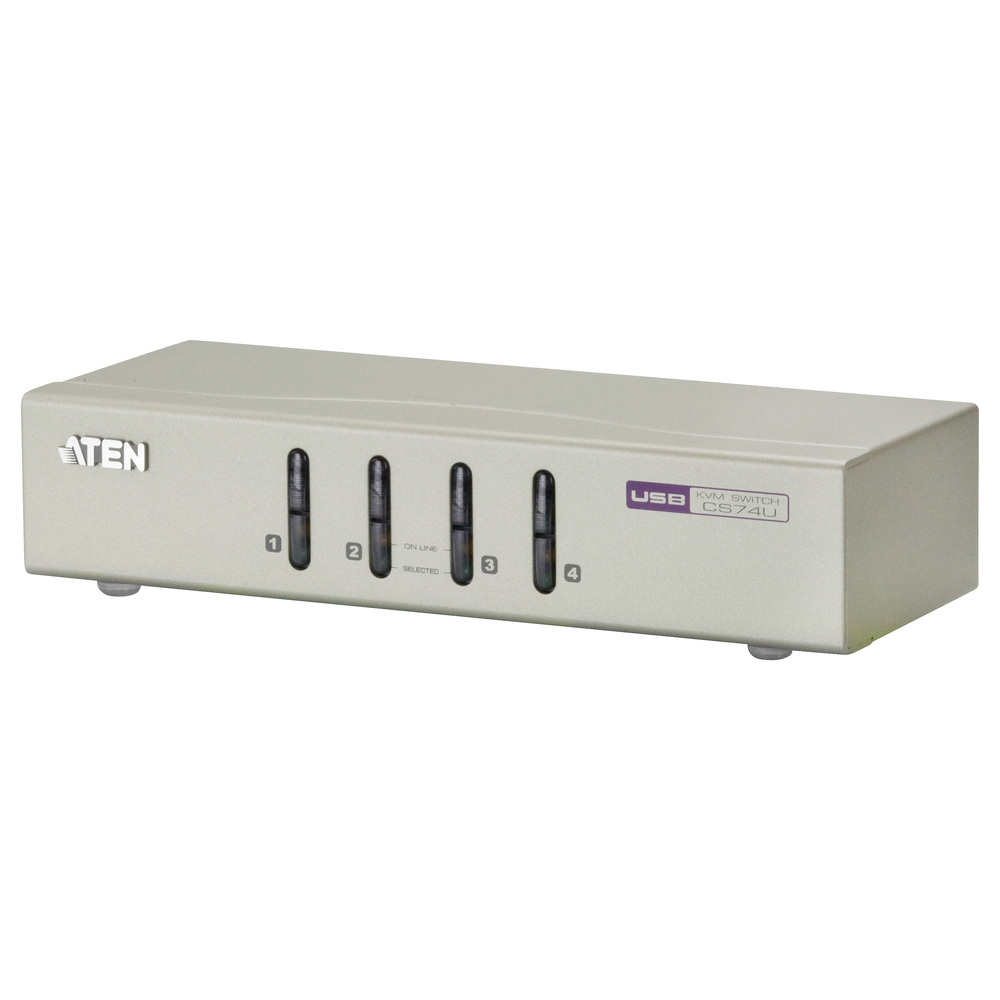

Bring four USB/VGA computers to one desktop console while retaining analog audio connections. Front-panel buttons provide a direct way to choose a system, making this model useful at workstations where staff prefer a visible hardware control. The supplied cable set covers four computers with two 1.2 m leads and two 1.8 m leads.
The switch is bus powered. An optional compatible ATEN power adapter may be required in installations that cannot supply sufficient power; it is not included.
Included: 1x CS74U 4-Port USB KVM Switch; 2x Custom KVM Cable (VGA, USB, Audio; 1.2 m/4 ft); 2x Custom KVM Cable (VGA, USB, Audio; 1.8 m/6 ft); 1x User Instructions; ; Note: The custom KVM cable set is designed for CS74U, transmitting video, audio, and USB signals. Available lengths are 1.2 m (LIN5-23X5-X31G) and 1.8 m (LIN5-23X5-X32G). Contact your ATEN dealer for details..
