Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | KH1516AI |
| Computer Connections — Direct | 16 |
| Computer Connections — Maximum | 256 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors — Console Ports | 2 x USB Type-A Female (White); 1 x 6-pin Mini-DIN Female (Purple) ; 1 x 6-pin Mini-DIN Female (Green); 1 x HDB-15 Female (Blue) |
| Connectors — KVM Ports | 16 x RJ-45 Female |
| Connectors — Daisy Chain Ports | 1 x DB-25 Male |
| Connectors — Power | 1 x IEC 60320/C14 |
| Connectors — LAN Ports | 1 x RJ-45 Female |
| Connectors — Firmware Upgrade | 1 x RJ-11 Female |
| Connectors — PON | 1 X RJ-45 Female |
| Connectors — Laptop USB Console (LUC) Port | 1 x USB Mini-B Female |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| Switches — Power | 1 x Rocker |
| Port Selection | 16 x Pushbutton |
| LEDs — Online | 16 (Green) |
| LEDs — Selected | 16 (Orange) |
| LEDs — Power | 1 (Blue) |
| LEDs — Station ID | 1 x 2-digit 7-segment (Orange) |
| LEDs — Link | 1 (Orange) |
| LEDs — 10/100/1000 Mbps | Depends on hardware revision; confirm the supplied revision before choosing the display/network setting. |
| Emulation — Keyboard / Mouse | PS/2; USB |
| Video — Local | Depends on hardware revision; confirm the supplied revision before choosing the display/network setting. |
| Video — Remote | Depends on hardware revision; confirm the supplied revision before choosing the display/network setting. |
| Scan Interval | 1–255 secs |
| Maximum Input Power Rating | 100–240 VAC; 50/60 Hz; 1A |
| Power Consumption | AC110V:8.9W:50BTU/h; AC220V:8.9W:50BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0 – 40°C |
| Environmental — Storage Temperature | -20 – 60°C |
| Environmental — Humidity | 0–80% RH; Non-condensing |
| Physical Properties — Housing | Metal |
| Physical Properties — Weight | 2.70 kg ( 5.95 lb ) |
| Physical Properties — Dimensions (L x W x H) | 43.72 x 16.36 x 4.40 cm ; (17.21 x 6.44 x 1.73 in.) |
| Supplied accessories | 1x KH1516Ai KVM over IP Switch; 1x Power Cord; 1x Firmware Upgrade Cable; 1x Rack Mount Kit; 1x Foot Pad(4pcs); 1x User Manual; 1x Quick Start Guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Access 16 attached computers locally or over IP.
- Reach BIOS-level controls for supported remote recovery work.
- Use laptop USB console access for on-site service.
- Keep users organized with individual accounts and access control.
- Extend a compatible daisy chain to 256 computers.
Product Information

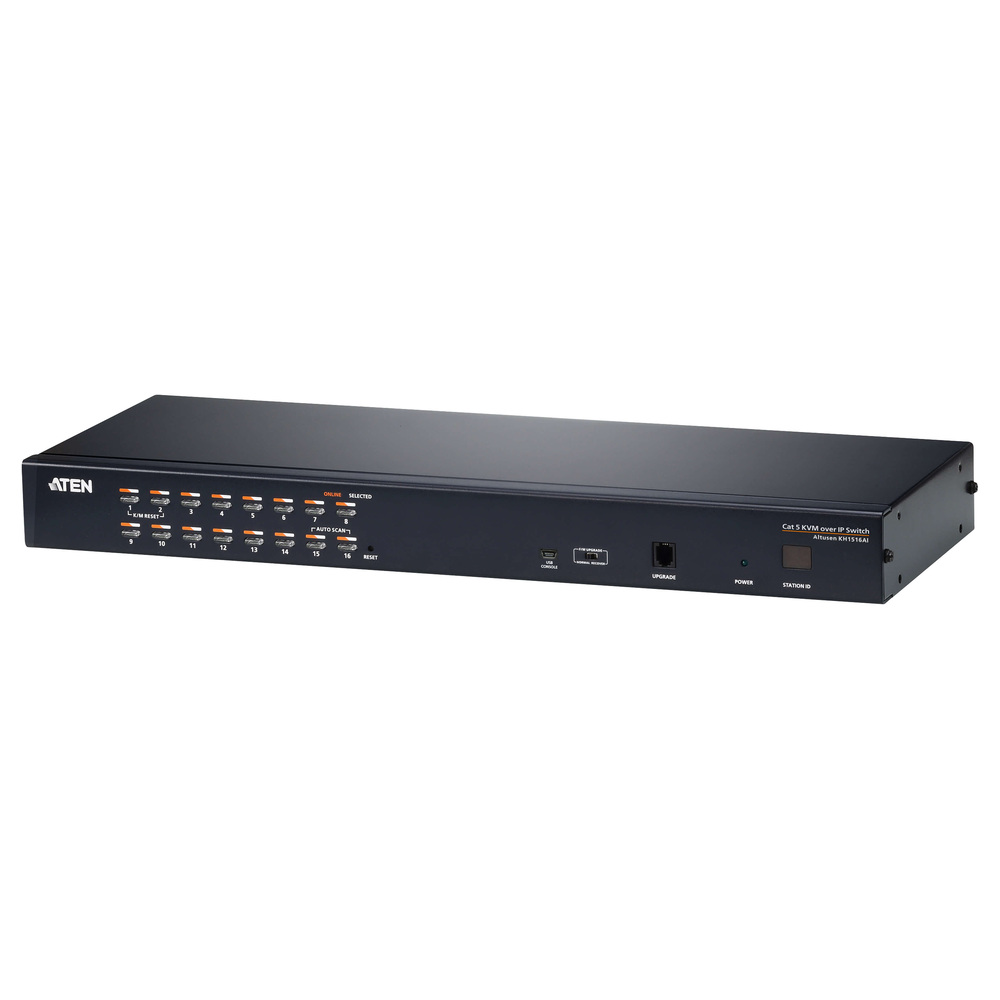

Provide local or remote administration of 16 computers through compatible ATEN adapters. IP access lets an authorized operator work with the console without being physically beside the rack. The device supports up to 64 user accounts and 32 concurrent logins, sharing the available access bus; these logins do not create 32 independent computer sessions. A compatible daisy chain can reach 256 computers.
Computer adapters and Cat 5e/6 cabling are separate. Display limits and network link capability depend on the FHD or non-FHD hardware revision; confirm the supplied revision. Virtual media is not supported on this switch.
Included: 1x KH1516Ai KVM over IP Switch; 1x Power Cord; 1x Firmware Upgrade Cable; 1x Rack Mount Kit; 1x Foot Pad(4pcs); 1x User Manual; 1x Quick Start Guide.
Plan your KVM connections
For computers with USB and VGA, review the KA7170 adapter. Confirm hardware revision, distance and resolution before ordering.
