ATEN (Taiwan) 16-Port PS/2 USB VGA Rack KVM Switch - CS1316 price in srilanka

Key features

16 ports

Ports

1 x DC Jack

Power connector

16

Direct connections

3 years

Warranty

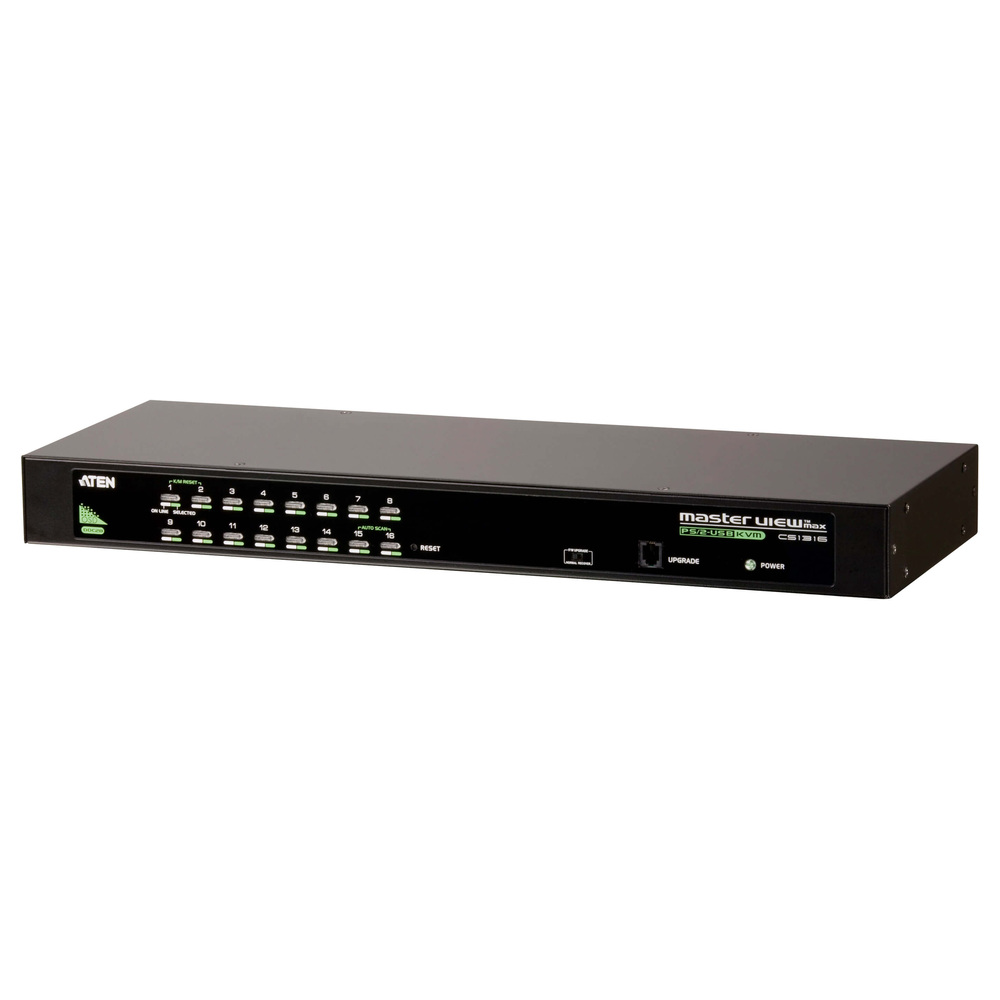

ATEN (Taiwan) 16-Port PS/2 USB VGA Rack KVM Switch – CS1316 (3Y)

The ATEN (Taiwan) CS1316 is a 16-Port PS/2 USB VGA Rack KVM Switch offering up to 2048 x 1536 VGA video. It provides PS/2/USB support, OSD selection, hotkeys and Video DynaSync.

3 YEARS WARRANTY

රු 282,500.00

Select compatible KVM cables

Product price: රු 282,500.00
Total options:
Order total:
Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters ATEN — Taiwan
Model CS1316
Computer Connections — Direct 16
Computer Connections — Maximum 256 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors — Console Ports 1 x SPHD-18 Male (Yellow)
Connectors — Firmware Upgrade 1 x RJ-11 Female (Black)
Connectors — Power 1 x DC Jack
Connectors — KVM Ports 16 x SPHD-18 Female (Yellow)
Switches — Ports 16 x Pushbutton
Switches — Firmware Upgrade 1 x Slide
LEDs — Online 16 (Orange)
LEDs — Selected 16 (Green)
LEDs — Power 1 (Dark Green)
Emulation — Keyboard / Mouse PS/2, USB
Video 2048 x 1536; DDC2B
Scan Interval 1-255 Seconds
Power Consumption DC5.3V:3.83W:26BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental — Operating Temperature 0-50˚C
Environmental — Storage Temperature -20-60˚C
Environmental — Humidity 0-80% RH, Non-condensing
Physical Properties — Housing Metal
Physical Properties — Weight 2.10 kg ( 4.63 lb )
Physical Properties — Dimensions (L x W x H) 43.72 x 16.13 x 4.40 cm ; (17.21 x 6.35 x 1.73 in.)
Supplied accessories 1x CS1316 KVM Switch with Rack Mount Kit; 1x Console cable; 1x Firmware Upgrade cable; 1x Foot Pad set (4 pads); 1x Power Adapter (6ft. AC Models); 1x User Instructions
Store warranty 3 YEARS WARRANTY

Key Features

  • Control 16 directly connected computers from one console.
  • Select ports through the OSD, hotkeys or front-panel buttons.
  • Support a mix of PS/2 and USB computer interfaces.
  • Maintain console behavior with keyboard/mouse emulation and Video DynaSync.
  • Expand a compatible installation to as many as 256 computers.

Product Information

Centralize 16 compatible computers at a single keyboard, mouse and VGA monitor. The 1U rack format suits server rooms and equipment cabinets, while the on-screen display helps identify and select connected systems. A supported two-level cascade can expand control to 256 computers, subject to the required additional switches and cabling.

Computer KVM cable sets and additional cascade switches must be selected separately. The package includes a console cable and rack mounting kit; it is not a complete cable bundle for every computer port.

Included: 1x CS1316 KVM Switch with Rack Mount Kit; 1x Console cable; 1x Firmware Upgrade cable; 1x Foot Pad set (4 pads); 1x Power Adapter (6ft. AC Models); 1x User Instructions.

Explore KVM Switches in Sri Lanka: Buying Guide.

Weight 2.10 kg
