Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | KH1516A |
| Computer Connections — Direct | 16 |
| Computer Connections — Maximum | 512 (via Daisy-chain) |
| Port Selection | OSD, Hotkey, Pushbutton |
| Connectors — Console Ports | 2 x USB Type A Female; 1 x 6-pin Mini-DIN Female (Purple) ; 1 x 6-pin Mini-DIN Female (Green); 1 x HDB-15 Female (Blue) |
| Connectors — KVM Ports | 16 x RJ-45 Female |
| Connectors — Daisy Chain Ports | 1 x DB-25 Female (Black); 1 x DB-25 Male (Black) |
| Connectors — Firmware Upgrade | 1 x RJ-11 Female (Black) |
| Connectors — Power | 1 x IEC 60320/C14 |
| Port Selection | 16 x Pushbutton |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| Switches — Firmware Upgrade | 1 x Slide |
| Switches — Power | 1 x Rocker |
| LEDs — Online | 16 (Green) |
| LEDs — Selected | 16 (Orange) |
| LEDs — Power | 1 (Blue) |
| LEDs — Station ID | 1 x 2 Digit 7-segment (Orange) |
| Emulation — Keyboard / Mouse | PS/2; USB |
| Scan Interval | 1–255 sec. |
| Video | 1920 x 1200 @ 60 Hz (30 m); 1600 x 1200 @ 60 Hz (40 m); 1280 x 1024 @ 75 Hz (50 m) |
| Maximum Input Power Rating | 100–240V AC; 50/60 Hz; 1A |
| Power Consumption | AC110V:5.3W:33BTU/h; AC220V:5.3W:33BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0 – 50°C |
| Environmental — Storage Temperature | -20 – 60°C |
| Environmental — Humidity | 0–80% RH, Non-condensing |
| Physical Properties — Housing | Metal |
| Physical Properties — Weight | 2.67 kg ( 5.88 lb ) |
| Physical Properties — Dimensions (L x W x H) | 43.72 x 16.36 x 4.40 cm ; (17.21 x 6.44 x 1.73 in.) |

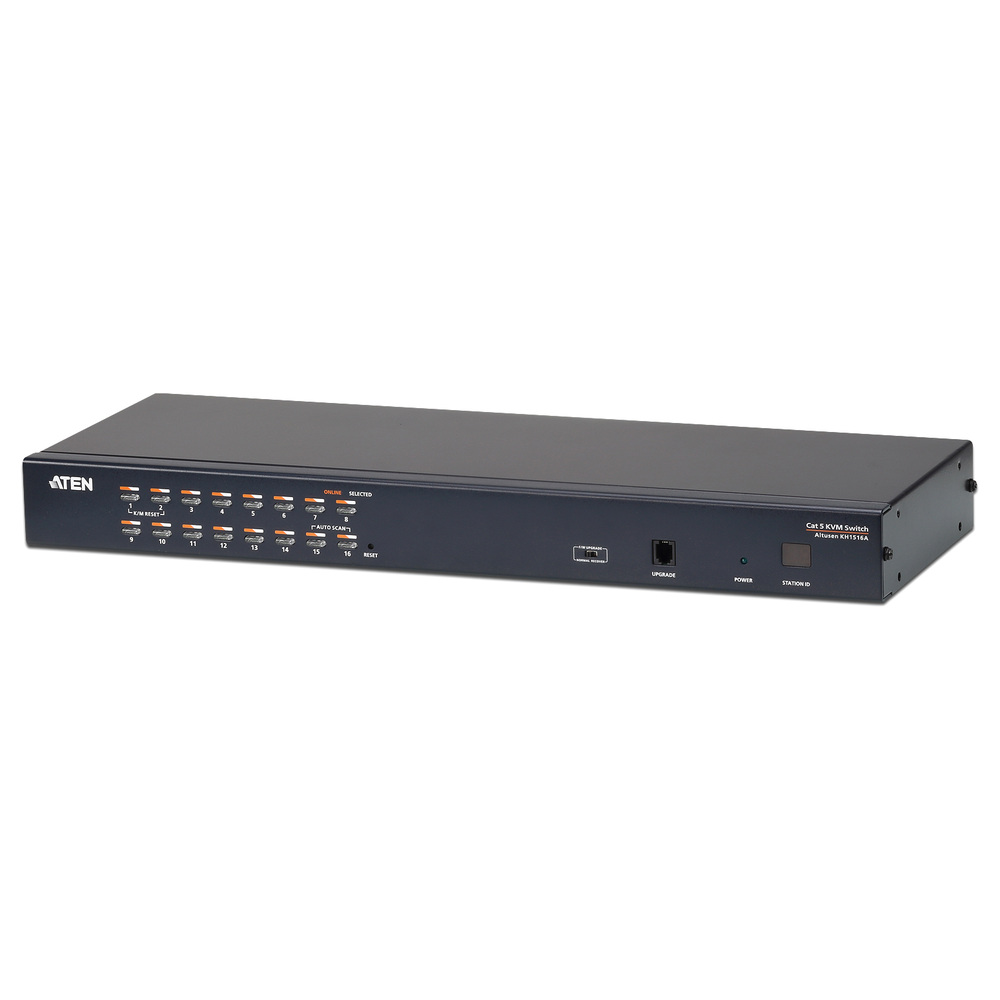

| Supplied accessories | 1x KH1516A 16-port Cat 5 High-Density KVM Switch; 1x Firmware Upgrade Cable; 1x Power Cord; 1x Grounding Wire; 1x Rack Mount Kit; 1x Foot Pad Set (4 pcs.); 1x User Manual; 1x Quick Start Guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Connect 16 computers through individual Cat 5 KVM links.
- Reduce rack cable bulk with RJ45 adapter connections.
- Identify systems through the OSD and stored adapter information.
- Use broadcast and Auto Scan functions for supported administration tasks.
- Expand local console control to as many as 512 computers.
Product Information
Manage 16 computers from a local rack console using compact Cat 5 cabling between the switch and compatible ATEN computer adapters. This arrangement can reduce bulk around a server rack and allows cable lengths to suit individual computer positions. Daisy chaining supported switches expands the installation to 512 computers.
Each computer requires a compatible ATEN KVM adapter and suitable cable, sold separately. The 1920 x 1200 mode requires KA71xx or KA75xx adapters; allowable resolution falls as distance increases. The RJ45 KVM links are not Ethernet switch ports.
Included: 1x KH1516A 16-port Cat 5 High-Density KVM Switch; 1x Firmware Upgrade Cable; 1x Power Cord; 1x Grounding Wire; 1x Rack Mount Kit; 1x Foot Pad Set (4 pcs.); 1x User Manual; 1x Quick Start Guide.
Plan your KVM connections
For computers with USB and VGA, review the KA7170 adapter. Confirm hardware revision, distance and resolution before ordering.
