Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CS1792 |
| Computer Connections | 2 |
| Port Selection | Hotkey, Pushbutton |
| Connectors — Console Ports | 2 x USB Type A Female (rear panel); 1 x HDMI Female (Black); 2 x 3.5 mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5 mm Audio Jack Female (Pink; 1 x front, 1 x rear) |
| Connectors — KVM Ports | 2 x USB Type B Female; 2 x HDMI Female (Black); 2 x 3.5 mm Audio Jack Female (Green); 2 x 3.5 mm Audio Jack Female (Pink) |
| Connectors — Firmware Upgrade | 1 x 3.5 mm Audio Jack Female (Black) |
| Connectors — Power | 1 x DC Jack |
| Connectors — USB Hub | 2 x USB Type A Female (1 x front panel; 1 x rear panel) |
| Switches — Selected | 3 x Pushbutton |
| LEDs — Audio | 3 (Green) |
| LEDs — KVM | 3 (Orange) |
| LEDs — USB | 3 (Green) |
| Emulation — Keyboard / Mouse | USB |
| Video | 1920 x 1080 @ 60Hz / 1920 x 1200 @ 60Hz |
| Scan Interval | 1-99 seconds (default: 5 sec.) |
| Power Consumption | DC5.3V:2.7W:28BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0-50°C |
| Environmental — Storage Temperature | -20-60°C |
| Environmental — Humidity | 0-80% RH, Non-condensing |
| Physical Properties — Housing | Metal, Plastic |
| Physical Properties — Weight | 0.42 kg ( 0.93 lb ) |
| Physical Properties — Dimensions (L x W x H) | 20.63 x 7.24 x 4.40 cm ; (8.12 x 2.85 x 1.73 in.) |
| Supplied accessories | 1x CS1792 USB 2.0 HDMI KVMP™ Switch; 2x KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft); 1x Firmware Upgrade Cable(1.8 m/6 ft); 1x Power Adapter; 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Share an HDMI console across 2 computers.
- Keep peripherals or audio on a chosen computer with independent switching.
- Share compatible devices through the two-port USB 2.0 hub.
- Reduce display switching issues with Video DynaSync.
- Benefit from automatic power-on detection when a connected system shuts down.
Product Information

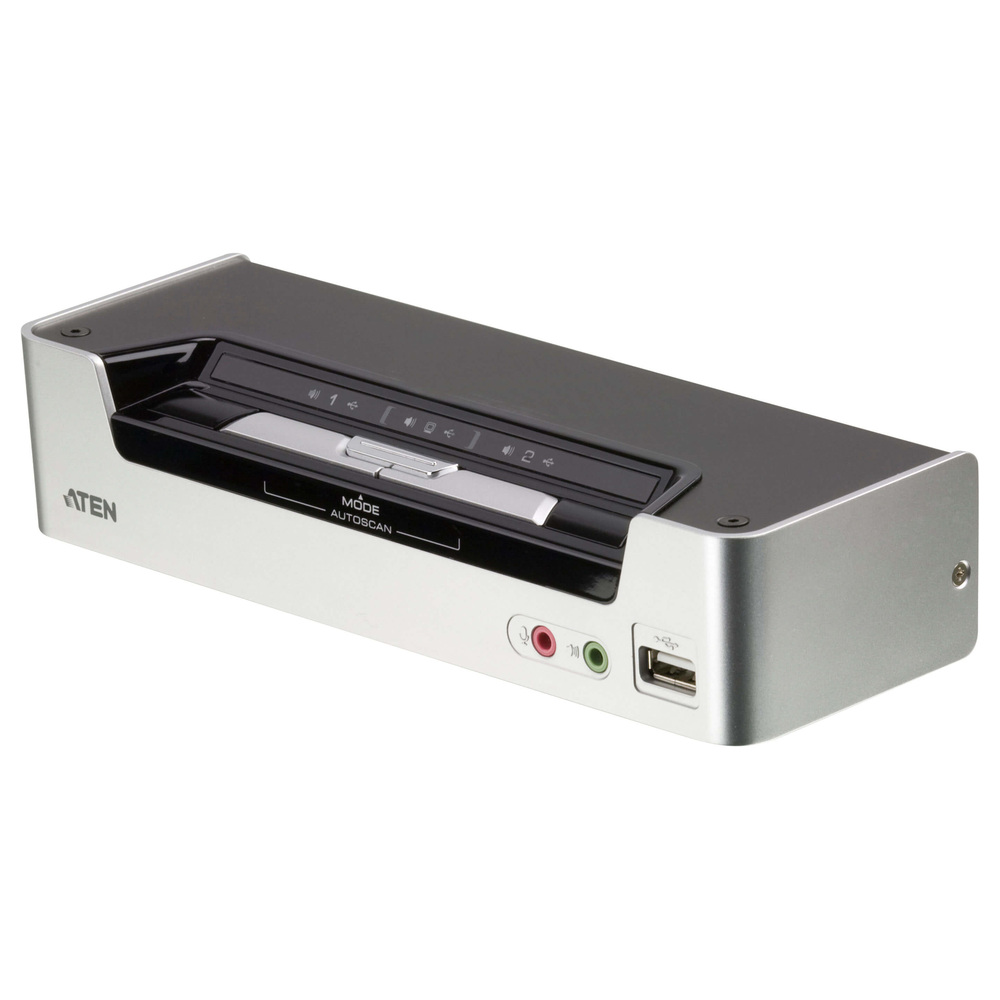

Use one HDMI console to operate 2 computers while sharing USB peripherals and audio. Independent switching lets a peripheral or audio connection remain with one computer while the keyboard, mouse and display move to another. This suits office desks and technical workstations that need shared equipment without repeatedly reconnecting cables.
HDMI operation supports 1080p at 60 Hz. The documented 1920 x 1200 mode applies to a DVI connection using appropriate conversion cabling; this is not a 4K KVM.
Included: 1x CS1792 USB 2.0 HDMI KVMP™ Switch; 2x KVM Cable (HDMI, USB, Audio; 1.8 m/6 ft); 1x Firmware Upgrade Cable(1.8 m/6 ft); 1x Power Adapter; 1x User Instructions.
