Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CS1708I |
| Computer Connections — Direct | 8 |
| Computer Connections — Maximum | 128 (via daisy chain) |
| Port Selection | OSD/GUI; Hotkey; Pushbutton |
| Connectors — Console Ports | 1 x SPHD Male (Yellow) |
| Connectors — KVM Ports | 8 x SPHD Female (Yellow) |
| Connectors — Daisy Chain Ports | 1 x DB-25 Male |
| Connectors — Power | 1 x DC Jack |
| Connectors — LAN Ports | 1 x RJ-45 Female |
| Connectors — Firmware Upgrade | 1 x RJ-11 |
| Connectors — USB Port | 1 x USB Type A Female |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| Port Selection | 8 x Pushbutton |
| Switches — Firmware Upgrade Recovery | 1 x Slide |
| LEDs — Online | 8 (Orange) |
| LEDs — Selected | 8 (Green) |
| LEDs — Station ID | 1 x 2-digit, 7-segment (Orange) |
| LEDs — Power | 1 (Dark Green) |
| LEDs — 10/100 Mbps | 1 (Orange/Green – at LAN port) |
| Emulation — Keyboard / Mouse | PS/2, USB |
| Video — Local | 2048 x 1536; DDC2B |
| Video — Remote | Depends on hardware revision; confirm the supplied revision before choosing the display/network setting. |
| Scan Interval | 1–255 sec. |
| Power Consumption | DC5.3V:7.67W:55BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0–50°C |
| Environmental — Storage Temperature | -20–60°C |
| Environmental — Humidity | 0–80% RH, Non-condensing |
| Physical Properties — Housing | Metal |
| Physical Properties — Weight | 2.81 kg ( 6.19 lb ) |
| Physical Properties — Dimensions (L x W x H) | 43.72 x 15.96 x 4.40 cm ; (17.21 x 6.28 x 1.73 in.) |
| Supplied accessories | 1x CS1708i KVM over IP Switch; 1x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Custom KVM Cable (VGA, PS/2; 1.8m/6ft); 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft); 1x Firmware Upgrade Cable; 1x Rack Mount Kit; 1x Foot Pad Set (4 pcs); 1x Power Adapter; 1x User Manual; 1x Quick Start Guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Administer 8 computers at the rack or over IP.
- Access BIOS-level controls on supported connected systems.
- Accommodate compatible PS/2 and USB computer connections.
- Use OSD selection and Video DynaSync for routine operation.
- Expand a compatible daisy chain to 128 computers.
Product Information

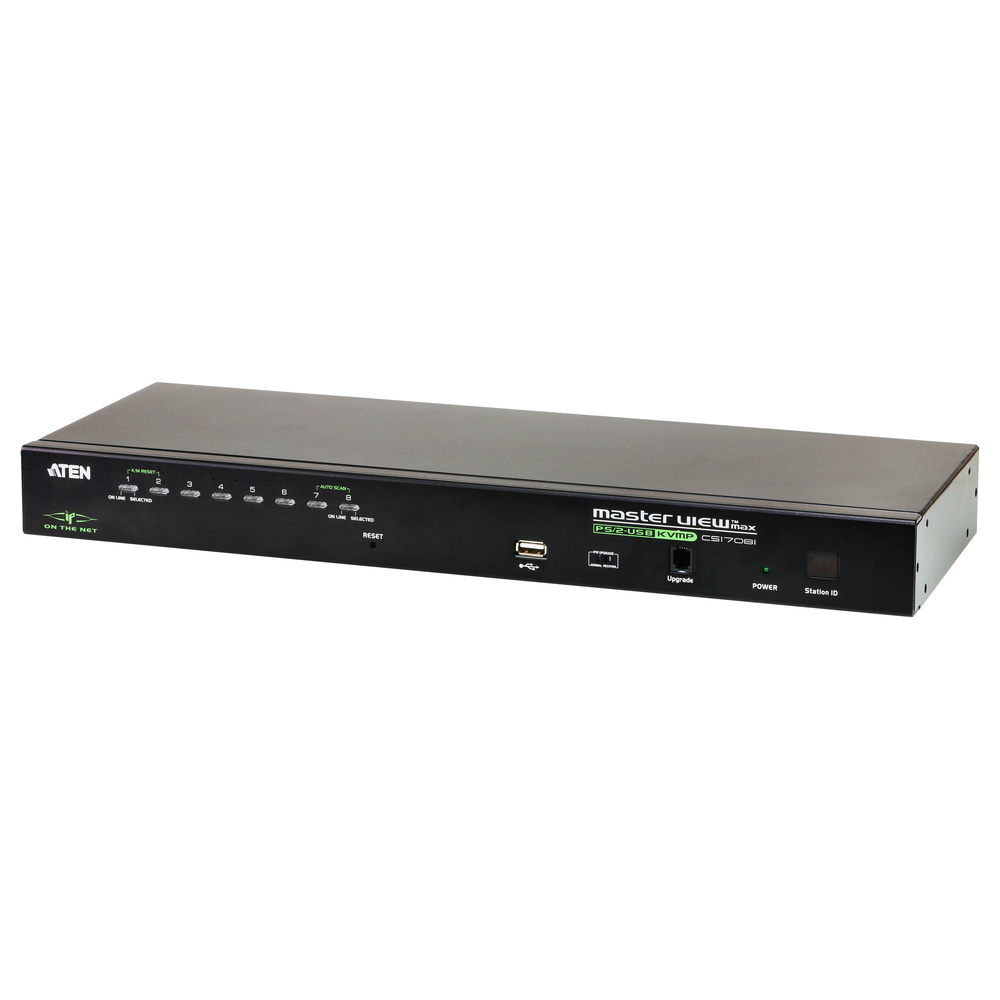

Provide local and network-based console access to 8 computers in a rack installation. Authorized remote operators can reach BIOS-level controls, supporting maintenance when the operating system cannot provide a normal remote desktop. Up to 64 accounts and 32 concurrent logins share the access bus. A compatible daisy chain can extend the installation to 128 computers.
Remote resolution depends on the FHD or non-FHD hardware revision; confirm the supplied revision. Concurrent logins share access rather than providing independent sessions to all computers. Additional computer and daisy-chain cables are separate.
Included: 1x CS1708i KVM over IP Switch; 1x Custom KVM Cable (VGA, USB; 1.8m/6ft); 1x Custom KVM Cable (VGA, PS/2; 1.8m/6ft); 1x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft); 1x Firmware Upgrade Cable; 1x Rack Mount Kit; 1x Foot Pad Set (4 pcs); 1x Power Adapter; 1x User Manual; 1x Quick Start Guide.
