Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|
| Model | CS22U |
| Computer Connections | 2 |
| Port Selection | Remote Port Selector |
| Connectors — Console Ports | 1 x HDB-15 Female (Blue); 2 x USB Type A Female |
| Connectors — KVM Ports | 2 x HDB-15 Male (Blue); 4 x USB Type A Male (Black) |
| LEDs — Selected | 2 |
| Cable Length — Computer | 2 x 0.9 m |
| Cable Length — Remote Port Selector | 1.8 m |
| Video | 2048 x 1536, DDC2B |
| Power Consumption | DC5V:0.14W:13BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0-50°C |
| Environmental — Storage Temperature | -20-60°C |
| Environmental — Humidity | 0-80% RH, Non-condensing |
| Physical Properties — Housing | Plastic |
| Physical Properties — Weight | 0.30 kg ( 0.66 lb ) |
| Physical Properties — Dimensions (L x W x H) | 8.24 x 7.01 x 2.46 cm ; (3.24 x 2.76 x 0.97 in.) |
| Supplied accessories | 1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector; 1x User Guide |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Free desk space by sharing one console between two computers.
- Switch computers from the separate pushbutton selector.
- Reduce loose cabling with two attached 0.9 m computer leads.
- Run the switch from USB bus power without a separate mains adapter.
- Retain detailed VGA output at resolutions up to 2048 x 1536.
Product Information

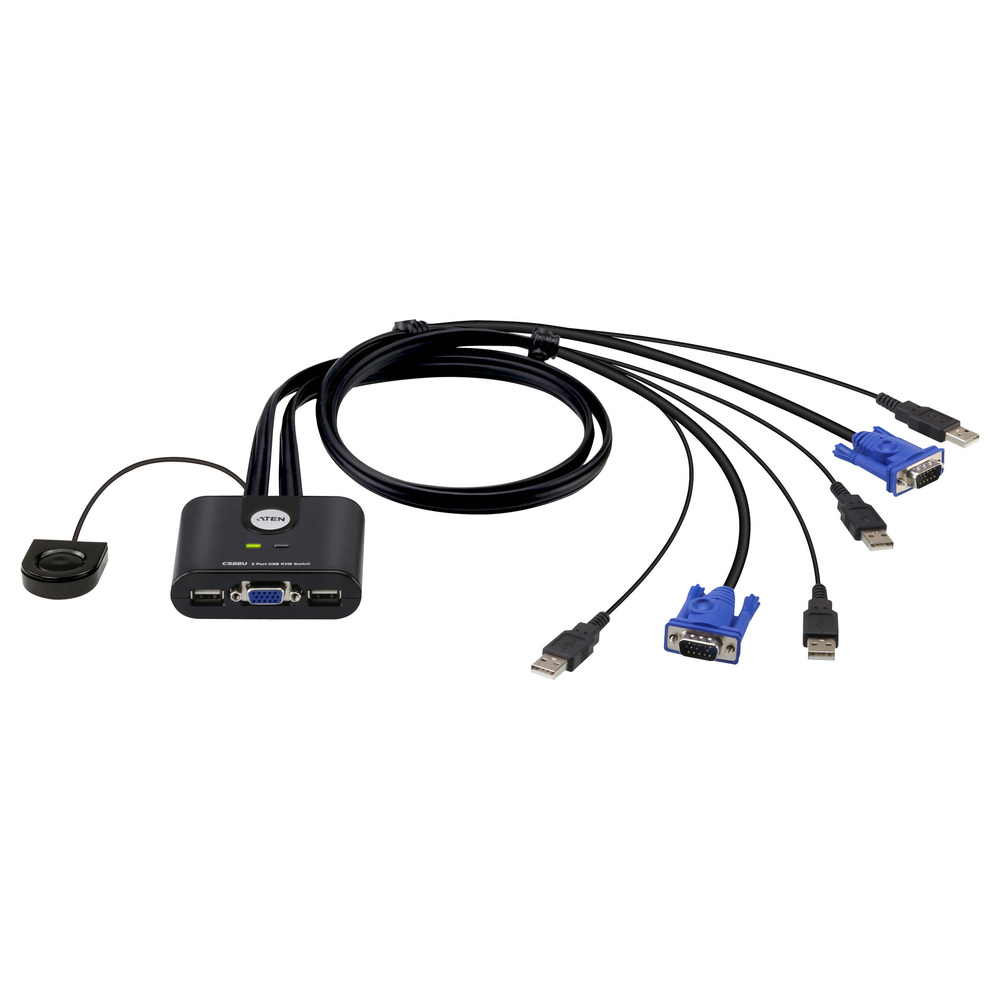

Share one VGA monitor and USB keyboard and mouse between two computers at a desk or service bench. The separate selector can sit within reach while the connected cables stay behind the equipment. This is useful where two systems are used in turn and a second set of desk peripherals would take up valuable space.
The computer and display must provide compatible USB and VGA connections. USB peripheral sharing depends on the connected device; this model does not provide HDMI conversion.
Included: 1x CS22U 2-Port USB Cable KVM Switch with Remote Port Selector; 1x User Guide.
