ATEN (Taiwan) 4-Port PS/2 USB VGA Desktop KVM Switch - CS84U price in srilanka

Key features

4 ports

Ports

1 x DC Jack

Power connector

Metal

Housing material

3 years

Warranty

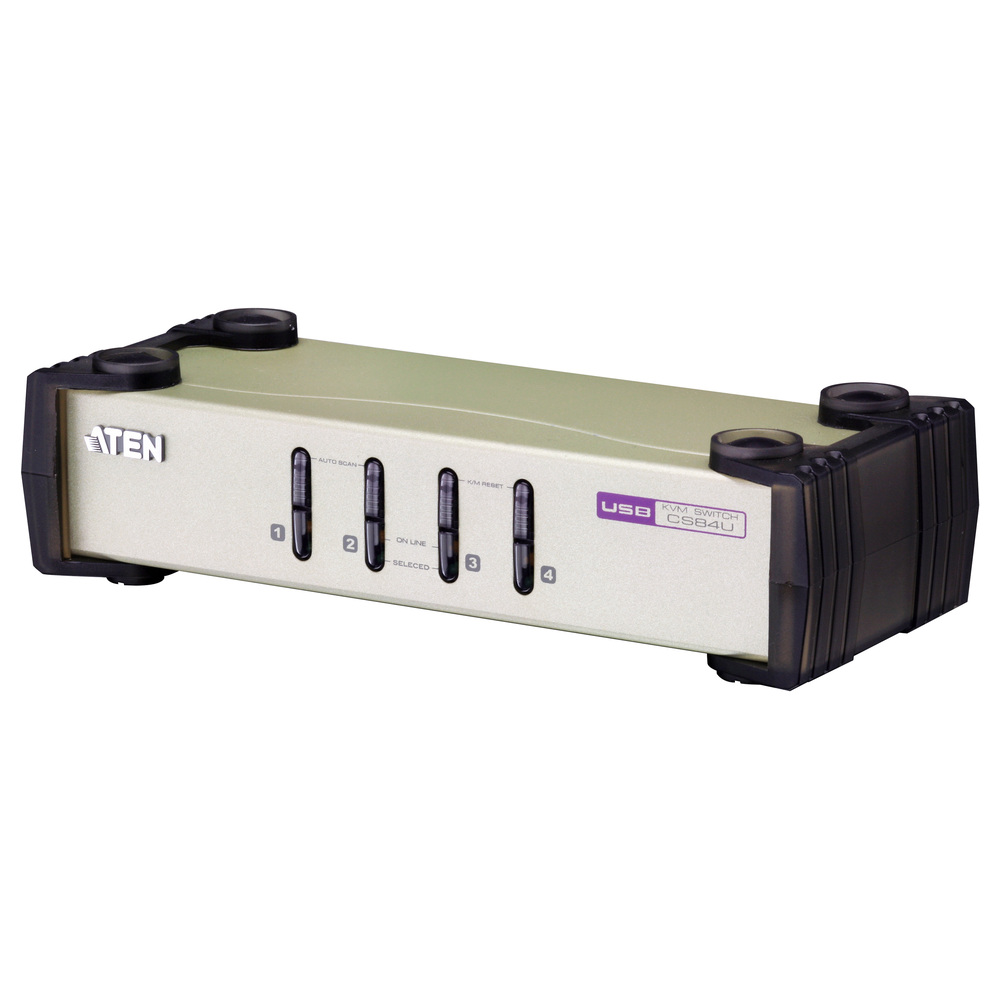

ATEN (Taiwan) 4-Port PS/2 USB VGA Desktop KVM Switch – CS84U (3Y)

The ATEN (Taiwan) CS84U is a 4-Port PS/2 USB VGA Desktop KVM Switch offering 2048 x 1536 at 60 Hz. It provides PS/2 and USB support, hotkeys, front-panel selection, mouse switching and Video DynaSync.

3 YEARS WARRANTY

රු 96,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters ATEN — Taiwan
Model CS84U
Computer Connections 4
Port Selection Hotkey, Pushbutton, USB Mouse
Connectors — Console Ports 1 x HDB-15 Female (Blue); 2 x USB Type A Female; 1 x 6-pin Mini-DIN Female (Purple); 1 x 6-pin Mini-DIN Female (Green)
Connectors — KVM Ports 4 x SPHD-18 Female (Yellow)
Connectors — Power 1 x DC Jack
Switches — Selected 4 x Pushbutton
LEDs — Online 4 (Orange)
LEDs — Selected 4 (Green)
Emulation — Keyboard / Mouse PS/2, USB
Video 2048 x 1536 @ 60 Hz; DDC2B
Scan Interval 3, 5, 10, 20 seconds (default: 5 secs.)
Power Consumption DC5V:0.87W:13BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental — Operating Temperature 0 – 50°C
Environmental — Storage Temperature -20 – 60°C
Environmental — Humidity 0-80% RH, Non-condensing
Physical Properties — Housing Metal
Physical Properties — Weight 0.77 kg ( 1.7 lb )
Physical Properties — Dimensions (L x W x H) 21.00 x 8.80 x 5.55 cm ; (8.27 x 3.46 x 2.19 in.)
Supplied accessories 1x CS84U PS/2-USB KVM Switch; 2x Custom KVM Cable (VGA, USB, PS/2; 1.2 m/4 ft); 2x Custom KVM Cable (VGA, USB, PS/2; 1.8 m/6 ft); 1x User Instructions
Store warranty 3 YEARS WARRANTY

Key Features

  • Control four computers from one shared console.
  • Accommodate both PS/2 and USB keyboard and mouse interfaces.
  • Choose a system using buttons, hotkeys or supported mouse switching.
  • Reduce boot-time display issues with Video DynaSync.
  • Use Auto Scan to check selected systems in sequence.

Product Information

Consolidate a mixed legacy and modern workstation into one VGA console. The dual interface accepts supported PS/2 or USB keyboard and mouse connections, so compatible computers can share the same operating position. Video DynaSync and keyboard emulation help maintain display settings and boot behavior while attention moves between systems.

Audio switching is not provided. Mouse switching depends on a supported mouse and configuration. Four custom KVM cables are supplied; check the matching connectors before installation.

Included: 1x CS84U PS/2-USB KVM Switch; 2x Custom KVM Cable (VGA, USB, PS/2; 1.2 m/4 ft); 2x Custom KVM Cable (VGA, USB, PS/2; 1.8 m/6 ft); 1x User Instructions.

Explore KVM Switches in Sri Lanka: Buying Guide.

Weight 0.77 kg
