Specifications
| Video Output / Interfaces | VE800AR: 1 x HDMI Type A Female (Black); VE800AT: N/A |
|---|---|
| Video Output / Impedance | VE800AR: 100 Ω; VE800AT: N/A |
| Video Output / Max. Distance | VE800AR: 3 m; VE800AT: N/A |
| Video Input / Impedance | VE800AR: N/A; VE800AT: 100 Ω |
| Video Input / Interfaces | VE800AR: N/A; VE800AT: 1 x HDMI Type A Female (Black) |
| Video Input / Max. Distance | VE800AR: N/A; VE800AT: 3 m |
| Video / Max. Data Rate | VE800AR: 6.75 Gbps (2.25 Gbps Per Lane); VE800AT: 6.75 Gbps (2.25 Gbps Per Lane) |
| Video / Max. Pixel Clock | VE800AR: 225 MHz; VE800AT: 225 MHz |
| Video / Compliance | VE800AR: HDMI (3D, Deep Color) HDCP Compatible; VE800AT: HDMI (3D, Deep Color) HDCP Compatible |
| Video / Max. Resolutions / Distance | VE800AR: Up to 1080p@40m; 1080i@60m; VE800AT: Up to 1080p@40m; 1080i@60m |
| Audio / Output | VE800AR: 1 x HDMI Type A Female (Black); VE800AT: N/A |
| Audio / Input | VE800AR: N/A; VE800AT: 1 x HDMI Type A Female (Black) |
| Connectors / Power | VE800AR: 1 x DC Jack; VE800AT: 1 x DC Jack |
| Connectors / Power Consumption | VE800AR: DC5V:0.61W:3BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; VE800AT: DC5V:0.9W:4BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | VE800AR: 0 – 50°C; VE800AT: 0 – 50°C |
| Environmental / Storage Temperature | VE800AR: -20 – 60°C; VE800AT: -20 – 60°C |
| Environmental / Humidity | VE800AR: 0 – 80% RH, Non-Condensing; VE800AT: 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | VE800AR: Metal; VE800AT: Metal |
| Physical Properties / Weight | VE800AR: 0.16 kg ( 0.35 lb ); VE800AT: 0.16 kg ( 0.35 lb ) |
| Physical Properties / Dimensions (L x W x H) | VE800AR: 9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.); VE800AT: 9.00 x 5.50 x 2.20 cm (3.54 x 2.17 x 0.87 in.) |
| Physical Properties / Carton Lot | VE800AR: 5 pcs; VE800AT: 5 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VE800AT HDMI Extender; 1x VE800AR HDMI Extender; 2x Power Adapters; 1x Mounting Kit; 1x User Instructions |
Key Features
- Install with both extension units included.
- Send 1080p video up to 40 m.
- Use supported 1080i formats for runs up to 60 m.
- Tune picture quality with the receiver’s equalisation selector.
- Carry compatible Dolby TrueHD and DTS-HD Master Audio.
Product Information

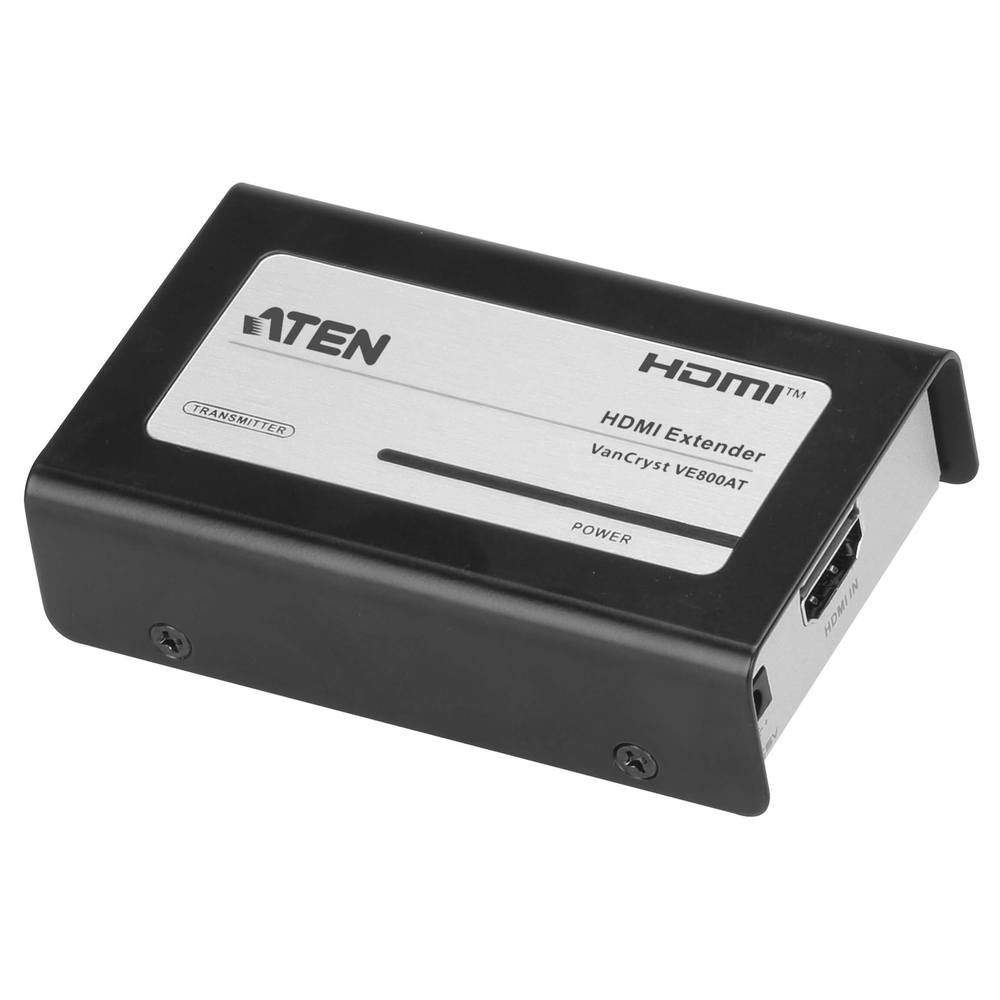

Extend an HDMI source to a remote display using the supplied transmitter and receiver. Cat 5e cabling provides a practical route between AV equipment and a distant screen in presentation or entertainment installations.
Follow the specified Cat 5e connection topology, including DDC cabling where required. Both units use their included power adapters; this is not a PoH-powered kit. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VE800AT HDMI Extender; 1x VE800AR HDMI Extender; 2x Power Adapters; 1x Mounting Kit; 1x User Instructions.
