Specifications
| Physical Properties / Weight | VE066R: 0.05 kg ( 0.11 lb ); VE066T: 0.05 kg ( 0.11 lb ) |
|---|---|
| Physical Properties / Dimensions (L x W x H) | VE066R: 5.66 x 4.07 x 2.15 cm (2.23 x 1.6 x 0.85 in.); VE066T: 5.66 x 4.07 x 2.15 cm (2.23 x 1.6 x 0.85 in.) |
| Physical Properties / Housing | VE066R: Plastic; VE066T: Plastic |
| Physical Properties / Carton Lot | VE066R: 20 pcs; VE066T: 20 pcs |
| Video Input / Interfaces | VE066R: N/A; VE066T: 1 x DVI-D Male (Gold) |
| Video Input / Impedance | VE066R: N/A; VE066T: 100 Ω |
| Video Output / Interfaces | VE066R: 1 x DVI-D Male (Gold); VE066T: N/A |
| Video Output / Impedance | VE066R: 100 Ω; VE066T: N/A |
| Video / Max. Data Rate | VE066R: 4.95 Gbps (1.65 Gbps Per Lane); VE066T: 4.95 Gbps (1.65 Gbps Per Lane) |
| Video / Max. Pixel Clock | VE066R: 165 MHz; VE066T: 165 MHz |
| Video / Compliance | VE066R: HDCP Compatible; VE066T: HDCP Compatible |
| Video / Max. Resolutions / Distance | VE066R: Up to 1080P@15m; 1080i@20m; VE066T: Up to 1080P@15m; 1080i@20m |
| Environmental / Operating Temperature | VE066R: 0 – 50°C; VE066T: 0 – 50°C |
| Environmental / Storage Temperature | VE066R: -20 – 60°C; VE066T: -20 – 60°C |
| Environmental / Humidity | VE066R: 0 – 80% RH, Non-Condensing; VE066T: 0 – 80% RH, Non-Condensing |
| Environmental / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |

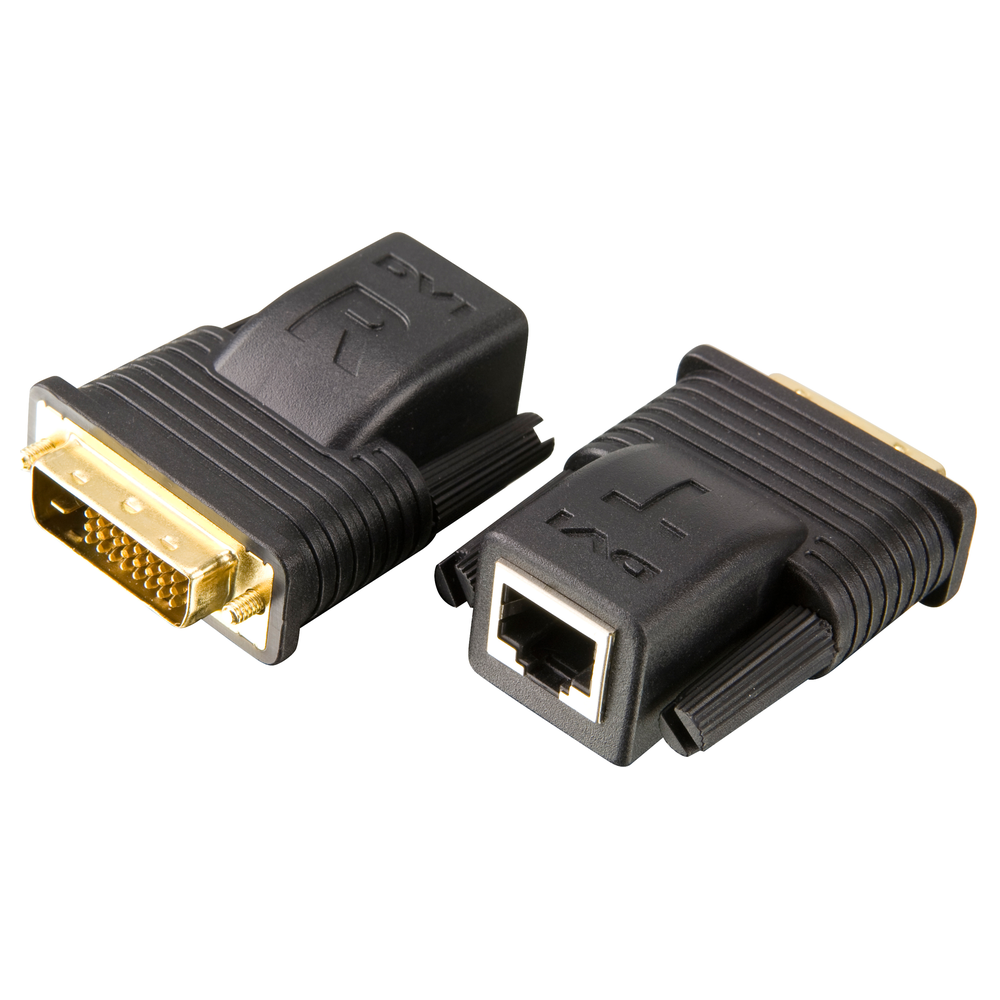

| Included accessories | 1x VE066T Mini Cat 5 DVI Extender (Transmitter); 1x VE066R Mini Cat 5 DVI Extender (Receiver); 1x User Instructions |
Key Features
- Install with the transmitter and receiver pair included.
- Extend 1080p video up to 15 m.
- Reach up to 20 m when using supported 1080i signals.
- Avoid a separate power adapter in the documented non-powered setup.
- Use compact adapters where equipment space is limited.
Product Information
Move a DVI display away from its source using a compact Cat 5e transmitter and receiver pair. The small adapters provide a simple point-to-point extension for compatible DVI equipment.
Actual range depends on source, display and cable quality, and 1920 × 1200 may require a shorter link. The RJ-45 connection is an AV extension link, not an Ethernet-network connection. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VE066T Mini Cat 5 DVI Extender (Transmitter); 1x VE066R Mini Cat 5 DVI Extender (Receiver); 1x User Instructions.
