Specifications
| Video Input / Interfaces | 4 x HDB-15 Male (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 1 x HDB-15 Female (Blue) |
| Video Output / Impedance | 75 Ω |
| Video Output / Max. Distance | 30 m |
| Video / Max. Bandwidth | 300 MHz |
| Video / Max. Resolution | Up to 1920 x 1440 |
| Video / Max. Distance | Up to 30 m |
| Audio / Input | 4 x Mini Stereo Jack Female (Green) |
| Audio / Output | 1 x Mini Stereo Jack Female (Green) |
| Control / RS-232 | Connector: 1 x DB-9 Female (Black)Baud Rate and Protocol: Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No |
| Control / IR | 1 x Mini Stereo Jack Female (Black) |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5.3V:0.47W:2BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0 – 50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.66 kg ( 1.45 lb ) |
| Physical Properties / Dimensions (L x W x H) | 20.00 x 7.61 x 4.40 cm (7.87 x 3 x 1.73 in.) |
| Physical Properties / Carton Lot | 5 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x VS0401 4-Port VGA Switch with Audio; 1x Power Adapter; 1x User InstructionsNote: IR extension cable and IR Remote control sold separately. |
Key Features
- Select among 4 VGA and stereo-audio sources.
- Control switching at the front panel or through RS-232.
- Reduce switching-related display issues with Video DynaSync.
- Use serial commands for automatic switching and pushbutton locking.
- Carry analogue video through a 300 MHz signal path.
Product Information

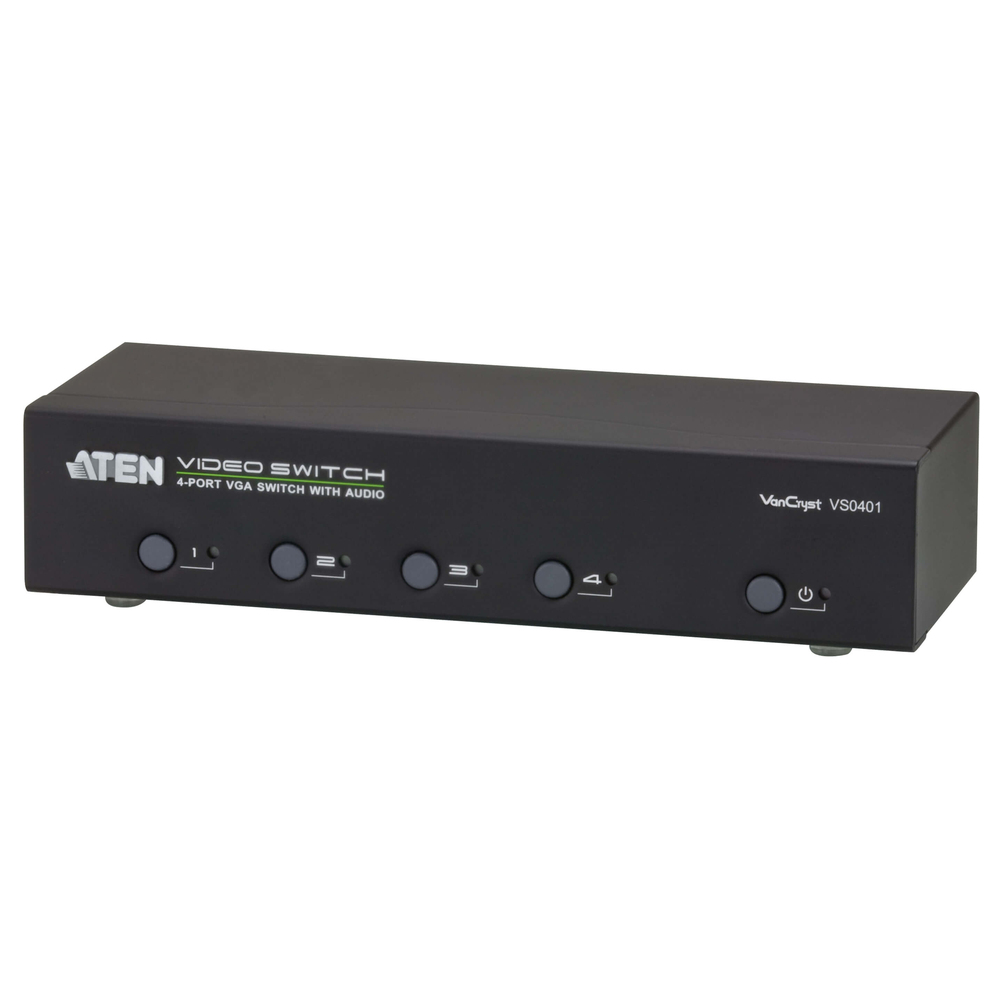

Select between VGA computers and their stereo audio on a shared monitor or projector. It is useful in a meeting room or classroom where several sources need to remain connected and ready for selection.
An IR remote and IR extension cable are sold separately. Long VGA cable runs can reduce picture quality; source and display compatibility must be checked for the intended resolution. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x VS0401 4-Port VGA Switch with Audio; 1x Power Adapter; 1x User InstructionsNote: IR extension cable and IR Remote control sold separately..
