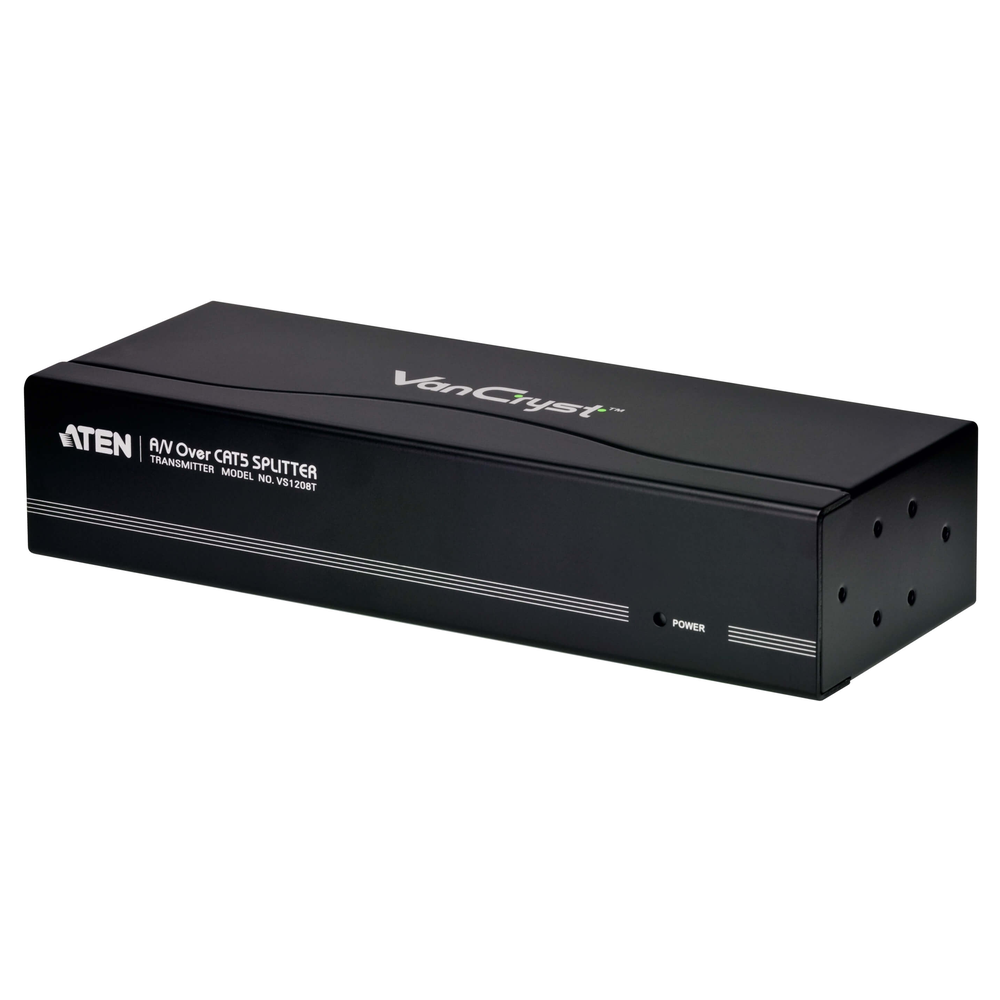

ATEN (Taiwan) 8-Port VGA/Audio Cat 5 Splitter - VS1208T price in srilanka

Key features

1 x DC Jack (Black)

Power connector

1 x HDB-15 Male (Blue)

Video inputs

1.8 m

Input cable distance

3 years

Warranty

ATEN (Taiwan) 8-Port VGA/Audio Cat 5 Splitter – VS1208T (3Y)

The ATEN (Taiwan) VS1208T is a 8-Port VGA/Audio Cat 5 Splitter with video input: 1 x HDB-15 Male (Blue); video output: 1 x HDB-15 Female (Blue) – Local Output 8 x RJ-45 Female. With documented performance of 225 MHz, it helps you keep a local vga monitor available for the presenter and carry mono audio alongside the remote video feed.

3 YEARS WARRANTY

රු 212,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Video Input / Interfaces1 x HDB-15 Male (Blue)
Video Input / Impedance75 Ω
Video Input / Max. Distance1.8 m
Video Output / Interfaces1 x HDB-15 Female (Blue) – Local Output 8 x RJ-45 Female
Video Output / Impedance75 Ω
Video / Max. Bandwidth225 MHz
Video / Max. Resolutions / DistanceUp to 1920 x 1200@60Hz@150m; 1280 x 1024@60Hz@300m
Audio / Input1 x Mini Stereo Jack Female (Green)
Audio / Output1 x Mini Stereo Jack Female (Green)
Connectors / Power1 x DC Jack (Black)
Connectors / Power ConsumptionDC5.3V:7.04W:33BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental / Operating Temperature0-50°C
Environmental / Storage Temperature-20 – 60°C
Environmental / Humidity0 – 80% RH, Non-Condensing
Physical Properties / HousingMetal
Physical Properties / Weight0.64 kg ( 1.41 lb )
Physical Properties / Dimensions (L x W x H)20.00 x 7.51 x 4.40 cm (7.87 x 2.96 x 1.73 in.)
Physical Properties / Carton Lot01 pcs
Physical Properties / NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Brand headquartersTaiwan (ATEN International; headquarters country, not a claim of manufacturing origin)
Store warranty3 YEARS WARRANTY
Included accessories1x VS1208T A/V Over Cat 5 Splitter; 1x Power Adapter; 1x Mounting Kit; 1x Foot Pad Set (4 pcs); 1x User Instructions

Key Features

  • Reach multiple locations through 8 Cat 5e outputs.
  • Keep a local VGA monitor available for the presenter.
  • Carry mono audio alongside the remote video feed.
  • Reduce display-side cabling bulk by using Cat 5e links.
  • Use the supplied mounting hardware for a fixed installation.

Product Information

Distribute one VGA source to remote display locations using Cat 5e cable, while retaining a local monitor connection. The unit acts as the transmitter side of a distributed AV system for training, signage or presentation spaces.

Remote displays require compatible receivers, sold separately: VE170R, VE170RQ or VE172R. Resolution and range depend on the receiver: the 300 m maximum must not be read as full-resolution operation at every distance. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.

Included in the manufacturer package: 1x VS1208T A/V Over Cat 5 Splitter; 1x Power Adapter; 1x Mounting Kit; 1x Foot Pad Set (4 pcs); 1x User Instructions.

Explore Video Splitters in Sri Lanka: Buying Guide; KVM Switches in Sri Lanka: Buying Guide.

Weight0.64 kg
