ATEN (Taiwan) 8-Port 17-Inch Dual Rail LCD KVM over IP Switch - KL1508AIM price in srilanka

Key features

8 ports

Ports

10/100/1000 Mbps

Port speed

1 x IEC 60320/C14

Power connector

3 years

Warranty

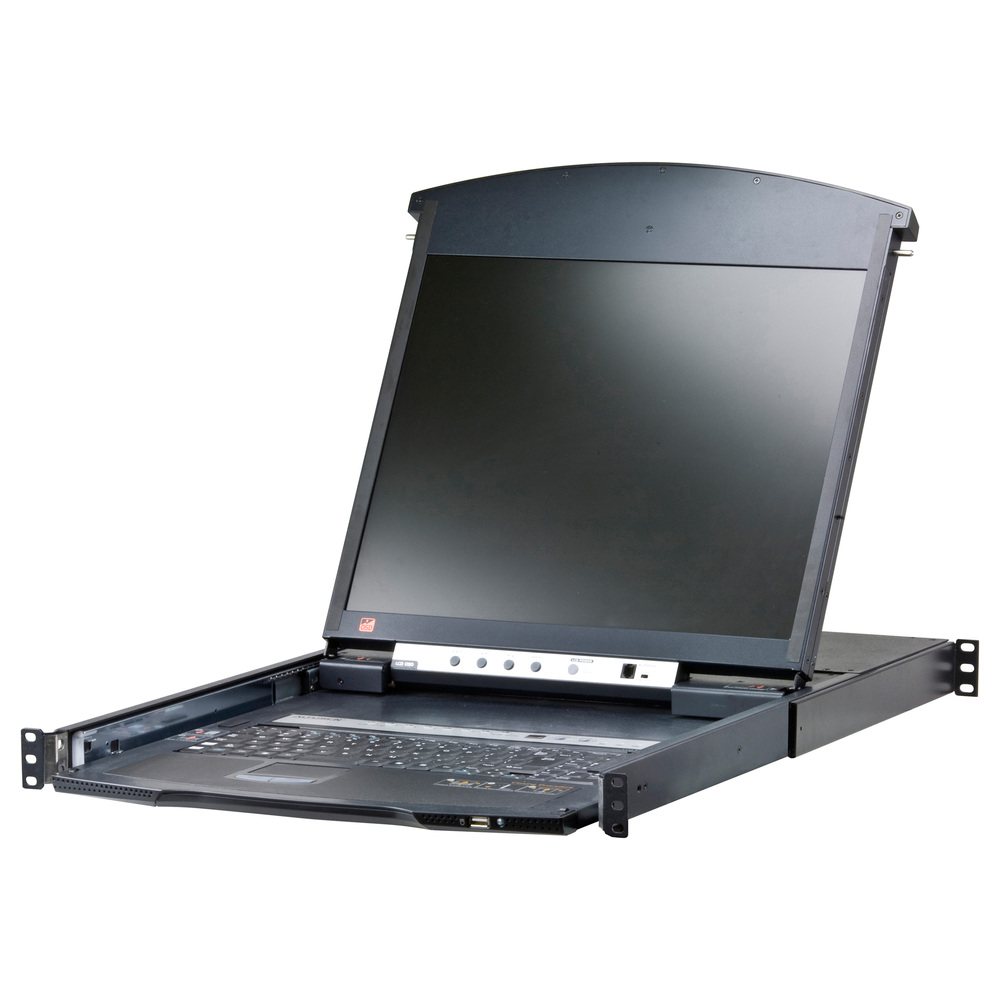

ATEN (Taiwan) 8-Port 17-Inch Dual Rail LCD KVM over IP Switch – KL1508AIM (3Y)

The ATEN (Taiwan) KL1508AIM is a 8-Port 17-Inch Dual Rail LCD KVM over IP Switch offering a native 1280 x 1024 at 75 Hz 17-inch LCD. It provides 8 RJ45 computer ports, dual rails and one shared local/remote access bus.

3 YEARS WARRANTY

රු 1,885,000.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquartersATEN — Taiwan
ModelKL1508AIM
Console Connections — Local1 (shared remote bus)
Console Connections — Remote1
Computer Connections — Direct8
Computer Connections — Maximum128 (via daisy-chain)
Port SelectionOSD, hotkeys, pushbuttons
Connectors — Console Ports2 x USB Type-A female; 1 x 6-pin Mini-DIN female (purple); 1 x 6-pin Mini-DIN female (green); 1 x HDB-15 female
Connectors — External Mouse Port1 x USB Type-A female
Connectors — KVM Ports8 x RJ-45 female
Connectors — Daisy Chain Ports1 x DB-25 male
Connectors — PON1 x RJ-45 female
Connectors — Firmware Upgrade1 x RJ-11 female
Connectors — LAN Ports1 x RJ-45 female
Connectors — Power1 x IEC 60320/C14
Port Selection8 x pushbutton
Switches — Station Selection2 x pushbutton
Switches — Reset1 x semi-recessed pushbutton
Switches — Firmware Upgrade1 x slide switch
Switches — Power1 x rocker
Switches — LCD Power1 x pushbutton
Switches — LCD Adjustment4 x pushbutton
LEDs — Online8 (green)
LEDs — Selected8 (orange)
LEDs — Station Selection2 x 7 segments (orange)
LEDs — Link1 (green)
LEDs — 10/100/1000 MbpsDepends on hardware revision; confirm the supplied revision before choosing the display/network setting.
LEDs — Power1 (blue)
LEDs — LCD Power1 (orange)
LEDs — LockNum Lock, Caps Lock and Scroll Lock: 1 green indicator each
Video — LocalDepends on hardware revision; confirm the supplied revision before choosing the display/network setting.
Video — RemoteDepends on hardware revision; confirm the supplied revision before choosing the display/network setting.
Panel Spec — LCD Module17-inch TFT-LCD
Panel Spec — Resolution1280 x 1024 @ 75Hz
Panel Spec — Pixel Pitch0.264 x 0.264 mm
Panel Spec — Response time5 ms
Panel Spec — Viewing Angle170 degrees horizontal, 160 degrees vertical
Panel Spec — Support Color16.7 million colours
Panel Spec — Contrast Ratio1000:1
Panel Spec — Luminance250 cd/m²
Emulation — Keyboard / MousePS/2; USB
Scan Interval1–255 seconds
Maximum Input Power Rating100–240V AC, 50–60Hz, 1A
Power Consumption110V AC:21.1W:110BTU/h; 220V AC:22.2W:115BTU/h; Watts indicate typical consumption without external loading; BTU/h indicates fully loaded consumption.
Environmental — Operating Temperature0–40°C
Environmental — Storage Temperature-20–60°C
Environmental — Humidity0–80% RH, non-condensing
Physical Properties — HousingMetal
Physical Properties — Weight15.23 kg
Physical Properties — Dimensions (L x W x H)48.00 x 70.12 x 4.40 cm
Supplied accessories1 x KL1508AI dual-rail LCD KVM switch; 1 x power cord; 1 x standard rack mount kit; 1 x firmware upgrade cable; 2 x L brackets; 1 x user instructions
Store warranty3 YEARS WARRANTY

Key Features

  • Access 8 computer ports from the local LCD console or over IP.
  • Retract the keyboard separately with the dual rail design.
  • View local output on the 17-inch LCD panel.
  • Use individual accounts for shared remote administration.
  • Expand a compatible daisy chain to 128 computers.

Product Information

Combine a local rack console with IP access to 8 computers through compatible ATEN KVM adapters. The screen and keyboard drawers move independently, so the keyboard can retract while the display stays open for monitoring. Up to 64 user accounts and 32 concurrent logins share the available access bus. A compatible daisy chain supports an installation of up to 128 computers.

Computer adapters and Cat 5e/6 cables are separate. Maximum input/remote video and network speeds depend on the FHD or non-FHD hardware revision; confirm the supplied revision. Virtual media is not supported. The local panel resolution is unchanged by a higher accepted input timing.

Included: 1 x KL1508AI dual-rail LCD KVM switch; 1 x power cord; 1 x standard rack mount kit; 1 x firmware upgrade cable; 2 x L brackets; 1 x user instructions.

Plan your KVM connections

For computers with USB and VGA, review the KA7170 adapter. Confirm hardware revision, distance and resolution before ordering.

Explore KVM Switches in Sri Lanka: Buying Guide; ATEN KA7170 USB VGA KVM Adapter; KVM Adapter Selection Guide.
