Specifications
| Video Input / Interfaces | 1 x HDB-15 Male (Blue) |
|---|---|
| Video Input / Impedance | 75 Ω |
| Video Input / Max. Distance | 1.8 m |
| Video Output / Interfaces | 8 x HDB-15 Female (Blue) |
| Video Output / Impedance | 75 Ω |
| Video / Max. Bandwidth | 450 MHz |
| Video / Max. Resolution | Up to 1920 x 1440 |
| Video / Max. Distance | Up to 30 m |
| Audio / Input | 1 x Mini Stereo Jack Female (Green) |
| Audio / Output | 8 x Mini Stereo Jack Female (Green) |
| Control / RS-232 | 1 x DB-9 Female (Black) |
| Control / EDID Settings | EDID Mode: Port 1 / Auto / Default |
| Connectors / Power | 1 x DC Jack |
| Connectors / Power Consumption | DC5.3V:2.18W:10BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental / Operating Temperature | 0-50°C |
| Environmental / Storage Temperature | -20 – 60°C |
| Environmental / Humidity | 0 – 80% RH, Non-Condensing |
| Physical Properties / Housing | Metal |
| Physical Properties / Weight | 0.87 kg ( 1.92 lb ) |
| Physical Properties / Dimensions (L x W x H) | 26.00 x 7.61 x 4.40 cm (10.24 x 3 x 1.73 in.) |
| Physical Properties / Carton Lot | 01 pcs |
| Physical Properties / Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
| Brand headquarters | Taiwan (ATEN International; headquarters country, not a claim of manufacturing origin) |
| Store warranty | 3 YEARS WARRANTY |
| Included accessories | 1x 8-Port VGA Splitter with Audio; 1x Power Adapter; 1x User Instructions |
Key Features
- Share one VGA source across 8 displays for consistent content.
- Keep stereo sound with the picture through dedicated audio connections.
- Support detailed PC graphics with 450 MHz video bandwidth.
- Simplify display negotiation with selectable EDID modes.
- Integrate source distribution into a room controller through RS-232.
Product Information

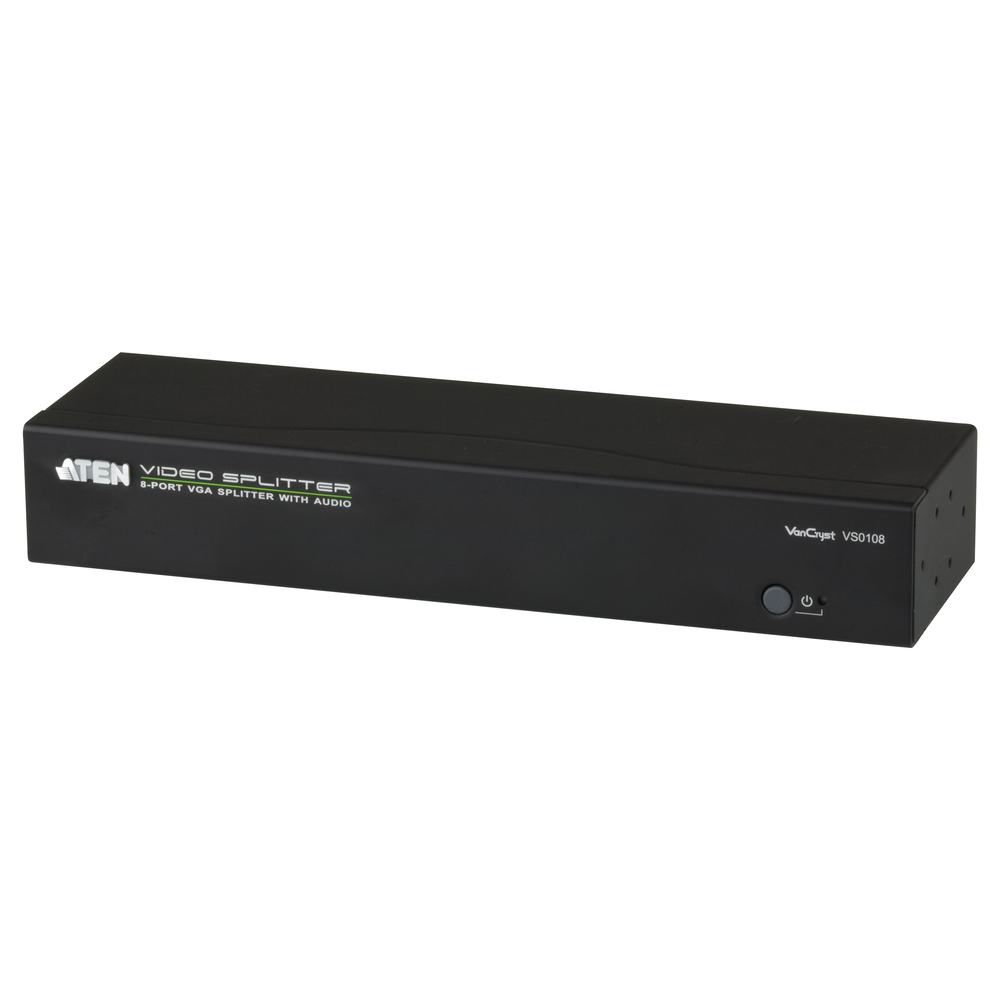

Distribute a computer’s VGA picture and stereo sound to multiple screens in training rooms, meeting spaces or presentation installations. A single source can feed the connected displays without repeatedly moving the source cable.
Three-level cascading expands distribution with additional splitters. VGA cable quality and length affect picture quality; the stated distance is an upper limit rather than a guarantee for every installation. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.
Included in the manufacturer package: 1x 8-Port VGA Splitter with Audio; 1x Power Adapter; 1x User Instructions.
