ATEN (Taiwan) HDMI HDBaseT-Lite Extender with PoH (4K@40m) (HDBaseT Class B) - VE802 price in srilanka

Key features

HDBaseT-Lite

Extension technology

PoH supported

Power over cable

3 years

Warranty

Great Customer Service

Richcom Technology

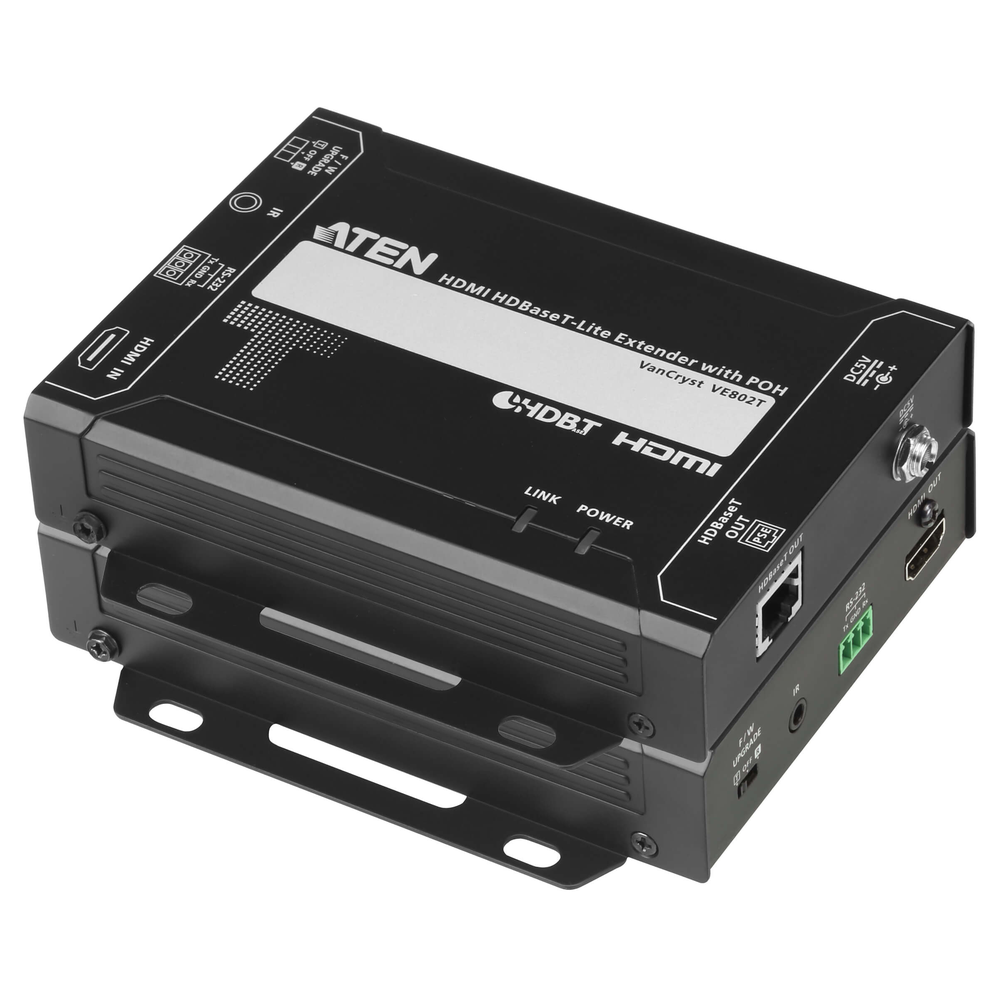

ATEN (Taiwan) HDMI HDBaseT-Lite Extender with PoH (4K@40m) (HDBaseT Class B) – VE802 (3Y)

The ATEN (Taiwan) VE802 is an HDMI HDBaseT-Lite Extender with PoH (4K@40m) (HDBaseT Class B) with video input: VE802R: N/A; VE802T: 1 x HDMI Type A Female (Black); video output: VE802R: 1 x HDMI Type A Female (Black); VE802T: N/A. With documented performance of VE802R: 10.2Gbps (3.4Gbps per lane); VE802T: 10.2Gbps (3.4Gbps per lane), it helps you carry bidirectional serial communication for supported equipment and relay infrared control signals in either direction.

3 YEARS WARRANTY

රු 252,000.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Video Input / InterfacesVE802R: N/A; VE802T: 1 x HDMI Type A Female (Black)
Video Input / ImpedanceVE802R: N/A; VE802T: 100 Ω
Video Input / Max. DistanceVE802R: N/A; VE802T: 3 m
Video Output / InterfacesVE802R: 1 x HDMI Type A Female (Black); VE802T: N/A
Video Output / ImpedanceVE802R: 100 Ω; VE802T: N/A
Video Output / Max. DistanceVE802R: 3 m; VE802T: N/A
Video / Max. Data RateVE802R: 10.2Gbps (3.4Gbps per lane); VE802T: 10.2Gbps (3.4Gbps per lane)
Video / Max. Pixel ClockVE802R: 340 MHz; VE802T: 340 MHz
Video / ComplianceVE802R: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC); VE802T: HDMI (3D, Deep Color, 4K) HDCP2.2 Compatible Consumer Electronics Control (CEC)
Video / Max. Resolutions / DistanceVE802R: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)*4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4); VE802T: Up to 4K@35m (Cat 5e/6) / 40m (Cat 6a/ATEN 2L-2910 Cat6); 1080p@60m (Cat 5e/6) / 70m (Cat 6a/ATEN 2L-2910 Cat6)*4K supported: 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0); 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)
Audio / InputVE802R: N/A; VE802T: 1 x HDMI Type A Female (Black)
Audio / OutputVE802R: 1 x HDMI Type A Female (Black); VE802T: N/A
Control / RS-232VE802R: Connector: 1 x Terminal Block, 3 poleBaud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control; VE802T: Connector: 1 x Terminal Block, 3 poleBaud Rate: 19200, Data Bits:8, Stop Bits:1, no parity and flow control
Control / IRVE802R: 1 x Mini Stereo Jack Female (Black); VE802T: 1 x Mini Stereo Jack Female (Black)
Connectors / PowerVE802R: 1 x DC Jack (Black) with lockingor 1 x RJ-45 (Power Over HDBaseT, POH); VE802T: 1 x DC Jack (Black) with locking
Connectors / Unit To UnitVE802R: 1 x RJ-45 Female; VE802T: 1 x RJ-45 Female
Connectors / Power ConsumptionVE802R: DC5V:4.37W:20BTUPOH:5.46W:25BTUNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.; VE802T: DC5V:2.7W:13BTUNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental / Operating TemperatureVE802R: 0 – 50°C; VE802T: 0 – 50°C
Environmental / Storage TemperatureVE802R: -20 – 60°C; VE802T: -20 – 60°C
Environmental / HumidityVE802R: 0 – 80% RH, Non-Condensing; VE802T: 0 – 80% RH, Non-Condensing
Physical Properties / HousingVE802R: Metal; VE802T: Metal
Physical Properties / WeightVE802R: 0.46 kg ( 1.01 lb ); VE802T: 0.44 kg ( 0.97 lb )
Physical Properties / Dimensions (L x W x H) with bracketVE802R: 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.); VE802T: 14.04 x 12.30 x 3.00 cm (5.53 x 4.84 x 1.18 in.)
Physical Properties / Dimensions (L x W x H) without bracketVE802R: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.); VE802T: 13.60 x 10.10 x 2.90 cm (5.35 x 3.98 x 1.14 in.)
Brand headquartersTaiwan (ATEN International; headquarters country, not a claim of manufacturing origin)
Store warranty3 YEARS WARRANTY
Included accessories1x VE802T/R HDMI HDBaseT-Lite Extender with PoH; 1x Power Adapter (VE802T); 1x IR Transmitter; 1x IR Receiver; 2x Terminal Blocks; 1x User Instructions

Key Features

  • Use a single cable for HDMI HDBaseT extension.
  • Power the receiver from the transmitter through PoH.
  • Extend supported 4K to 35 m on Cat 5e/6 or 40 m on suitable Cat 6a.
  • Carry bidirectional serial communication for supported equipment.
  • Relay infrared control signals in either direction.

Product Information

Extend an HDMI source through a single HDBaseT cable while carrying control signals and receiver power. It suits fixed AV installations where a remote display needs video and control without its own separate power supply.

IR operates in one direction at a time. PoH is the documented transmitter-to-receiver power method; do not connect the HDBaseT ports as normal Ethernet-network ports. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.

Included in the manufacturer package: 1x VE802T/R HDMI HDBaseT-Lite Extender with PoH; 1x Power Adapter (VE802T); 1x IR Transmitter; 1x IR Receiver; 2x Terminal Blocks; 1x User Instructions.

Explore Video Extenders in Sri Lanka: Buying Guide; KVM Switches in Sri Lanka: Buying Guide.

Weight0.9 kg
