Specifications
| Brand headquarters | ATEN — Taiwan |
|---|---|

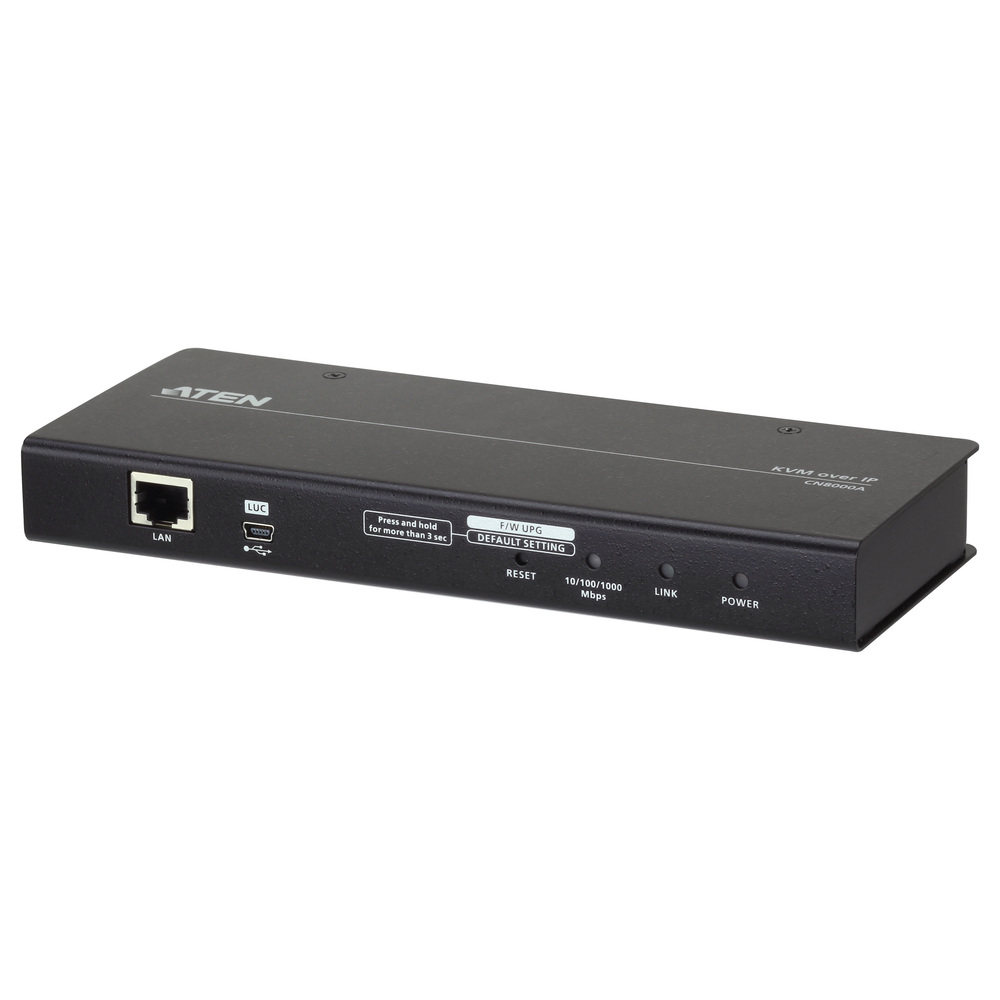

| Model | CN8000A |
| Connectors — Console Ports | 1 x SPHD Male (Yellow) |
| Connectors — KVM (Computer) Ports | 1 x SPHD Female (Yellow) |
| Connectors — Laptop USB Console (LUC) Port | 1 x USB Mini-B Female |
| Connectors — PON | 1 x DB-9 Male |
| Connectors — RS-232 | 1 x DB-9 Male |
| Connectors — LAN Ports | 1 x RJ-45 Female |
| Connectors — Power | 1 x DC Jack |
| Switches — Reset | 1 x Semi-recessed Pushbutton |
| LEDs — Power | 1 (Orange) |
| LEDs — Link | 1 (Green) |
| LEDs — 10/100/1000 Mbps | 1 (Orange / Orange+Green /Green) |
| Emulation — Keyboard / Mouse | USB; PS/2 |
| Video | Up to 1920 x 1200 @ 60 Hz; DDC2B |
| Power Consumption | DC5.3V:4.79W:31BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. |
| Environmental — Operating Temperature | 0 – 50°C (CN8000A) ; 0 – 40°C (Power Adapter) |
| Environmental — Storage Temperature | -20 – 60°C |
| Environmental — Humidity | 0 – 80% RH, Non-condensing |
| Physical Properties — Housing | Metal |
| Physical Properties — Weight | 0.49 kg ( 1.08 lb ) |
| Physical Properties — Dimensions (L x W x H) | 20.00 x 8.14 x 2.50 cm ; (7.87 x 3.2 x 0.98 in.) |
| Supplied accessories | 1x CN8000A Single Port KVM over IP; 1x Custom KVM Cable (VGA, USB, PS/2; 1.2 m/4 ft); 1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft); 1x USB Cable (USB-A to USB Mini-B; 1.8 m/6 ft); 1x Power Adapter; 1x Rack Mounting Kit; 1x User Instructions |
| Store warranty | 3 YEARS WARRANTY |
Key Features
- Add remote console access to compatible existing equipment.
- Reach supported BIOS-level functions during recovery work.
- Use virtual media for supported installation and diagnostic tasks.
- Connect a service laptop through the dedicated USB console port.
- Manage access through individual accounts and supported external authentication.
Product Information
Add IP console access to a compatible server or supported KVM switch that lacks its own network console. Authorized operators can view and control the system remotely, including BIOS-level tasks. Virtual media can present supported USB storage or ISO images for maintenance. The local console and laptop USB console provide practical options for service at the equipment itself.
Check the ATEN compatibility list for the connected server or KVM. Remote power integration requires separate compatible power-control hardware; no switched mains outlet is built into this model. Concurrent logins share the available console session.
Included: 1x CN8000A Single Port KVM over IP; 1x Custom KVM Cable (VGA, USB, PS/2; 1.2 m/4 ft); 1x Custom Console Cable (VGA, USB, PS/2; 27 cm/0.88 ft); 1x USB Cable (USB-A to USB Mini-B; 1.8 m/6 ft); 1x Power Adapter; 1x Rack Mounting Kit; 1x User Instructions.
