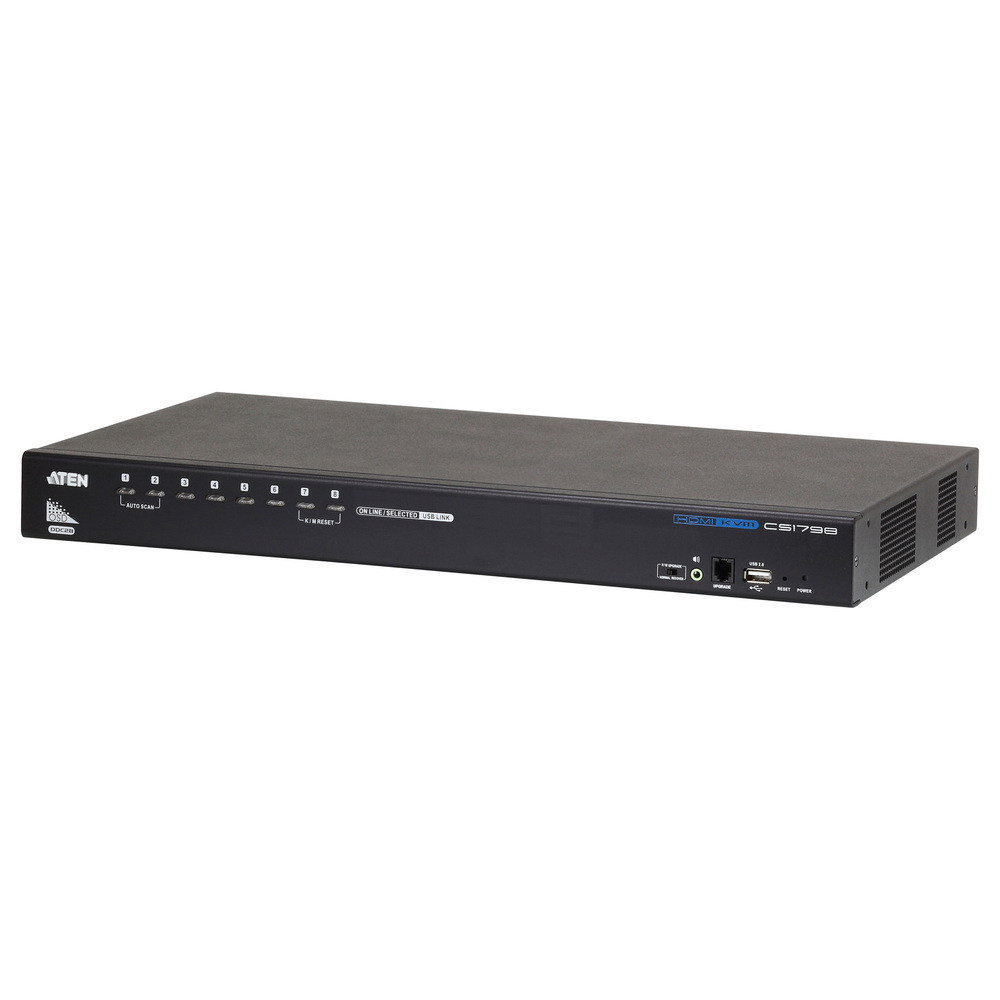

ATEN (Taiwan) 8-Port USB HDMI Audio Rack KVM Switch - CS1798 price in srilanka

Key features

8 ports

Ports

1 x DC Jack

Power connector

8

Direct connections

3 years

Warranty

ATEN (Taiwan) 8-Port USB HDMI Audio Rack KVM Switch – CS1798 (3Y)

The ATEN (Taiwan) CS1798 is a 8-Port USB HDMI Audio Rack KVM Switch offering 1920 x 1080 at 60 Hz HDMI video. It provides OSD, hotkeys, a two-port USB 2.0 hub and independent audio/peripheral selection.

3 YEARS WARRANTY

රු 442,500.00

Select compatible HDMI KVM cable

Product price: රු 442,500.00
Total options:
Order total:
Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters ATEN — Taiwan
Model CS1798
Computer Connections — Direct 8
Computer Connections — Maximum 512 (via Cascade)
Port Selection OSD, Hotkey, Pushbutton
Connectors — Console Ports 1 x HDMI Female; 2 x USB Type A Female; 2 x 3.5mm Audio Jack Female (Green; 1 x front panel, 1 x rear panel)
Connectors — KVM Ports 8 x HDMI Female; 8 x USB Type B Female; 8 x 3.5mm Audio Jack Female (Green)
Connectors — Firmware Upgrade 1 x RJ11 Female (Black)
Connectors — Power 1 x DC Jack
Connectors — USB Hub 2 x USB Type A Female (1 x front panel, 1 x rear panel)
Port Selection 8 x Pushbutton
Switches — Reset 1 x Semi-recessed Pushbutton
Switches — Firmware Upgrade 1 x Slide Switch
LEDs — USB Link 8 (Green)
LEDs — Power 1 (Dark Green)
LEDs — On Line /Selected 8 (Orange)
Emulation — Keyboard / Mouse USB
Video 1920 x 1080 at 60 Hz (1080p)
Scan Interval 1 – 255 seconds (default: 5 secs.)
Power Consumption DC5V:5.8W:53BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental — Operating Temperature 0 – 50°C
Environmental — Storage Temperature -20 – 60°C
Environmental — Humidity 0 – 80% RH, Non-condensing
Physical Properties — Housing Metal
Physical Properties — Weight 3.49 kg ( 7.69 lb )
Physical Properties — Dimensions (L x W x H) 43.24 x 25.72 x 4.40 cm ; (17.02 x 10.13 x 1.73 in.)
Supplied accessories 1x 8-Port USB HDMI KVM Switch with Rack Mounting Kit; 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft); 1x Firmware Upgrade Cable; 1x Power Adapter; 1x Foot Pad Set (4 pcs); 1x User Instructions
Store warranty 3 YEARS WARRANTY

Key Features

  • Operate 8 HDMI computers from one console.
  • Share USB 2.0 peripherals without repeatedly moving cables.
  • Keep audio or USB peripherals independently assigned where supported.
  • Choose computers by OSD, hotkeys or front-panel buttons.
  • Build a larger compatible cascade of up to 512 computers.

Product Information

Consolidate 8 HDMI computers into one rack-mounted console and share USB peripherals across the active installation. The OSD gives operators a named selection menu, while hotkeys and front-panel controls offer alternative switching methods. Compatible cascading can extend control to 512 computers, with expansion hardware and cables chosen for the required topology.

Set source video to 1920 x 1080 at 60 Hz or below. The USB hub is available at the first level of a cascade. The included cable count is listed below; extra computer and cascade cables are separate.

Included: 1x 8-Port USB HDMI KVM Switch with Rack Mounting Kit; 2x KVM Cable (HDMI, USB, Audio; 1.8m/6ft); 1x Firmware Upgrade Cable; 1x Power Adapter; 1x Foot Pad Set (4 pcs); 1x User Instructions.

Explore KVM Switches in Sri Lanka: Buying Guide.

Weight 3.49 kg
