ATEN (Taiwan) Single-Port VGA KVM over IP Switch with Power Control - KN1000A price in srilanka

Key features

10/100/1000 Mbps

Port speed

1 x DC Jack

Power connector

100–240 V~; 50-60 Hz; 9A

Output rating

3 years

Warranty

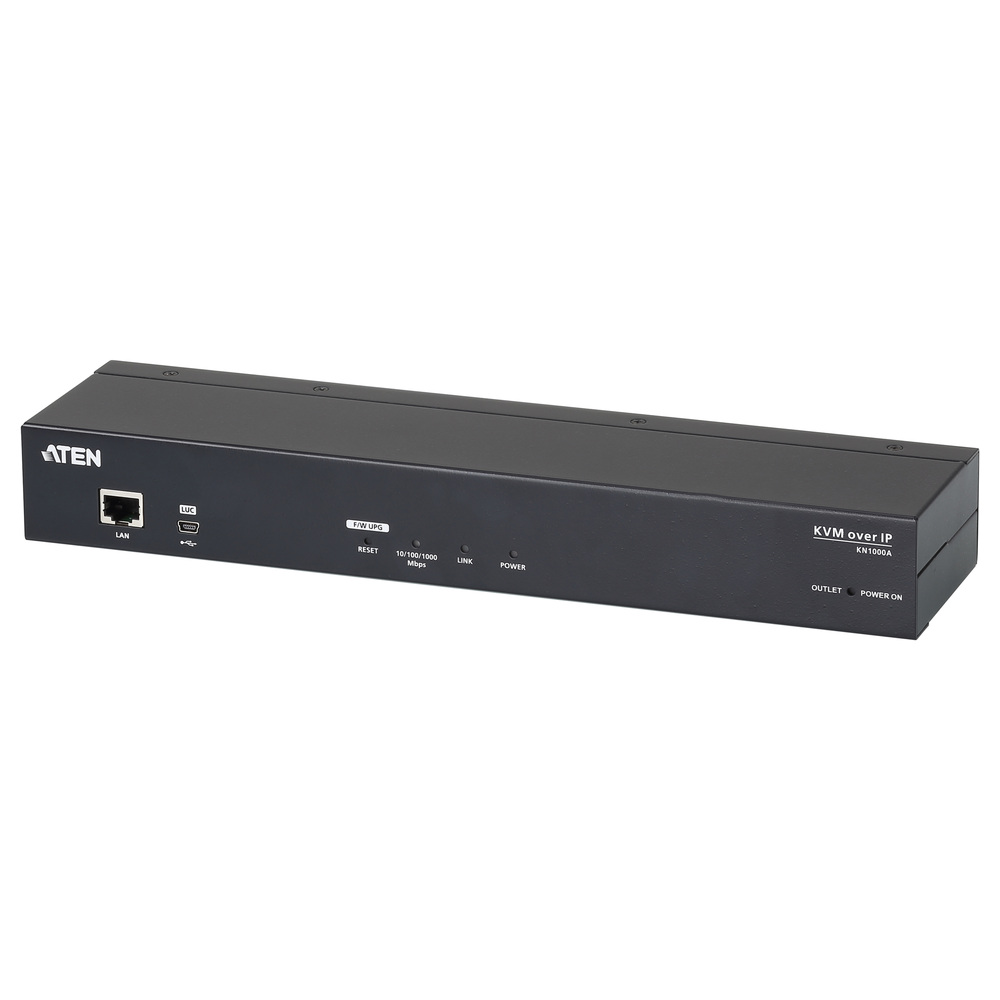

ATEN (Taiwan) Single-Port VGA KVM over IP Switch with Power Control – KN1000A (3Y)

The ATEN (Taiwan) KN1000A is a Single-Port VGA KVM over IP Switch with Power Control offering 1920 x 1200 at 60 Hz local and remote video. It provides PS/2/USB support, laptop USB console access, virtual media and BIOS-level control, plus a switched power outlet.

3 YEARS WARRANTY

රු 525,000.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Brand headquarters ATEN — Taiwan
Model KN1000A
Connectors — Console Ports 1 x SPHD Male (Yellow)
Connectors — KVM (Computer) Ports 1 x SPHD Female (Yellow)
Connectors — Laptop USB Console (LUC) Port 1 x USB Mini-B Female
Connectors — PON 1 x DB-9 Male
Connectors — RS-232 1 x DB-9 Male
Connectors — LAN Ports 1 x RJ-45 Female
Connectors — Power Inlets 1 x IEC60320/C14
Connectors — Power Outlets 1 x IEC60320/C13
Connectors — Power 1 x DC Jack
Switches — Reset 1 x Semi-recessed Pushbutton
LEDs — Power 1 (Orange)
LEDs — Power Outlets 1 (Orange)
LEDs — Link 1 (Green)
LEDs — 10/100/1000 Mbps 1 (Orange/ Orange+Green /Green)
Emulation — Keyboard / Mouse USB; PS/2
Video 1920 x 1200 @ 60 Hz; DDC2B
Maximum Input Power Rating 100–240 V~; 50-60 Hz; 10A
Output 100–240 V~; 50-60 Hz; 9A
Power Consumption DC5.3V:4.48W:30BTU/h; Note:; ● The measurement in Watts indicates the typical power consumption of the device with no external loading.; ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental — Operating Temperature 0-40°C
Environmental — Storage Temperature -20-60°C
Environmental — Humidity 0 – 80% RH, Non-condensing
Physical Properties — Housing Metal
Physical Properties — Weight 0.88 kg ( 1.94 lb )
Physical Properties — Dimensions (L x W x H) 31.00 x 8.39 x 4.20 cm ; (12.2 x 3.3 x 1.65 in.)
Supplied accessories 1 x KN1000A Single Port KVM over IP Switch; 1 x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft); 1 x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft); 1 x USB Cable (USB-A to USB Mini-B; 1.8m/6ft); 1 x Power Adapter; 1 x Outlet Power Cord; 1 x Mounting Kit; 1 x User Instructions
Store warranty 3 YEARS WARRANTY

Key Features

  • Add remote console access to compatible existing equipment.
  • Reach supported BIOS-level functions during recovery work.
  • Use virtual media for supported installation and diagnostic tasks.
  • Connect a service laptop through the dedicated USB console port.
  • Control the attached power outlet with scheduling and Auto-Ping actions.

Product Information

Add IP console access to a compatible server or supported KVM switch that lacks its own network console. Authorized operators can view and control the system remotely, including BIOS-level tasks. Virtual media can present supported USB storage or ISO images for maintenance. The local console and laptop USB console provide practical options for service at the equipment itself.

Check the ATEN compatibility list for the connected server or KVM. Remote power integration is provided through one C13 outlet rated 9 A maximum; the input rating is 10 A. Observe the stated electrical limits. Concurrent logins share the available console session.

Included: 1 x KN1000A Single Port KVM over IP Switch; 1 x Custom KVM Cable (VGA, USB, PS/2; 1.2m/4ft); 1 x Custom Console Cable (VGA, USB, PS/2; 27cm/0.88ft); 1 x USB Cable (USB-A to USB Mini-B; 1.8m/6ft); 1 x Power Adapter; 1 x Outlet Power Cord; 1 x Mounting Kit; 1 x User Instructions.

Explore KVM Switches in Sri Lanka: Buying Guide.

Weight 0.88 kg
