ATEN (Taiwan) VGA/Audio Cat 5 Receiver (1024 x 768@300m) - VE170R price in srilanka

Key features

1 x DC Jack (Black)

Power connector

1 x HDB-15 Female (Blue)

Video outputs

1.8 m

Output cable distance

3 years

Warranty

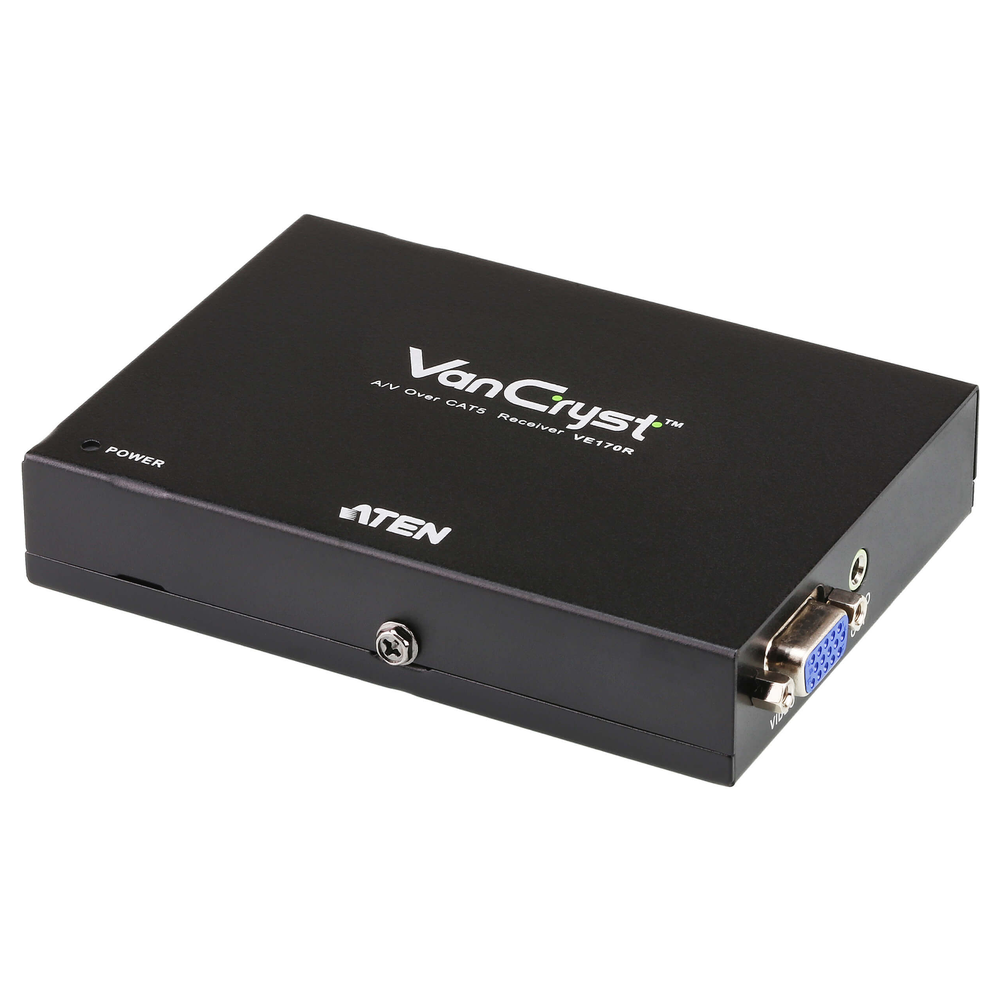

ATEN (Taiwan) VGA/Audio Cat 5 Receiver (1024 x 768@300m) – VE170R (3Y)

The ATEN (Taiwan) VE170R is a VGA/Audio Cat 5 Receiver (1024 x 768@300m) with video output: 1 x HDB-15 Female (Blue). With documented performance of 300 MHz, it helps you use 1920 × 1200 at shorter runs of up to 30 m and tune picture strength with gain and compensation controls.

3 YEARS WARRANTY

රු 89,500.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Video Output / Interfaces1 x HDB-15 Female (Blue)
Video Output / Impedance75 Ω
Video Output / Max. Distance1.8 m
Video / Max. Bandwidth300 MHz
Video / Max. Resolutions / DistanceUp to 1920 x 1200@30m; 1600 x 1200@150m; 1024 x 768@300m
Audio / Output1 x Mini Stereo Jack Female (Green)
Connectors / Power1 x DC Jack (Black)
Connectors / Power ConsumptionDC5.3V:3.32W:16BTU/hNote:● The measurement in Watts indicates the typical power consumption of the device with no external loading.● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental / Operating Temperature0-50°C
Environmental / Storage Temperature-20 – 60°C
Environmental / Humidity0 – 80% RH, Non-Condensing
Physical Properties / HousingMetal
Physical Properties / Weight0.24 kg ( 0.53 lb )
Physical Properties / Dimensions (L x W x H)12.77 x 9.04 x 2.26 cm (5.03 x 3.56 x 0.89 in.)
Physical Properties / Carton Lot01 pcs
Physical Properties / NoteFor some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Brand headquartersTaiwan (ATEN International; headquarters country, not a claim of manufacturing origin)
Store warranty3 YEARS WARRANTY
Included accessories1x VE170R A/V Over Cat 5 Receiver; 1x Power Adapter; 1x Mounting Kit (1 pc); 1x User Instructions

Key Features

  • Position a remote display up to 300 m away at 1024 × 768.
  • Use 1920 × 1200 at shorter runs of up to 30 m.
  • Tune picture strength with gain and compensation controls.
  • Carry mono audio with the video connection.
  • Use the included mounting kit for a tidy installation.

Product Information

Receive remote VGA video and mono audio over Cat 5e for a display positioned away from the source equipment. The compact receiver completes a compatible ATEN distribution or point-to-point extender installation.

This is a receiver only. It requires a compatible VE170T, VS1204T or VS1208T transmitter; the transmitter and Cat 5e link are not listed as included accessories. Confirm the source, display, cable type and supported signal timing before installation. Use the power arrangement and operating environment stated in the specifications.

Included in the manufacturer package: 1x VE170R A/V Over Cat 5 Receiver; 1x Power Adapter; 1x Mounting Kit (1 pc); 1x User Instructions.

Explore Video Extenders in Sri Lanka: Buying Guide; KVM Switches in Sri Lanka: Buying Guide.

Weight0.24 kg
