Specifications
| Brand | AVer |
|---|---|
| Model | VC520+ |
| System type | USB camera and speakerphone conferencing kit |
| Video resolution | Up to 1080p Full HD |
| Zoom | 18× total; 12× optical |
| Camera movement | 260° pan; 115° tilt |
| Field of view | 82° diagonal |
| Focus and presets | Autofocus; 10 camera presets |
| USB video | USB 2.0 UVC; YUV, MJPEG and H.264 |
| Camera control | VISCA via RS-232; supported command subset |
| Microphones | 3 unidirectional microphones; 360° coverage; 9m pickup diameter |
| Speaker output | 10W; up to 95dB SPL |
| Audio processing | Full-duplex; echo cancellation and noise suppression |
| Expansion | Supports up to two daisy-chained speakerphones; second speakerphone optional |
| Auxiliary audio | 3.5mm connection |
| Power | 110–220V AC input; 12V DC, 4A output |
| Camera dimensions / weight | 180 × 144 × 184 mm / 1.5kg |
| Speakerphone dimensions / weight | 210 × 209 × 59 mm / 1.0kg |
| Remote dimensions / weight | 200 × 50 × 20 mm / 0.091kg |
| Package contents | Camera, speakerphone, remote, 10m speakerphone RJ45 cable, 5m USB 2.0 mini-B cable, 0.9m 3.5mm cable, power supply, quick-start guide, mounting hardware, Velcro and USB cable clip |
Key Features
- Frame speakers and presentation areas using pan, tilt and optical zoom.
- Deliver Full HD video through a USB-connected meeting computer.
- Cover group discussions with three microphones and full-duplex audio.
- Recall up to ten camera positions to move between meeting views.
- Expand audio coverage with an optional second speakerphone.
Product Information

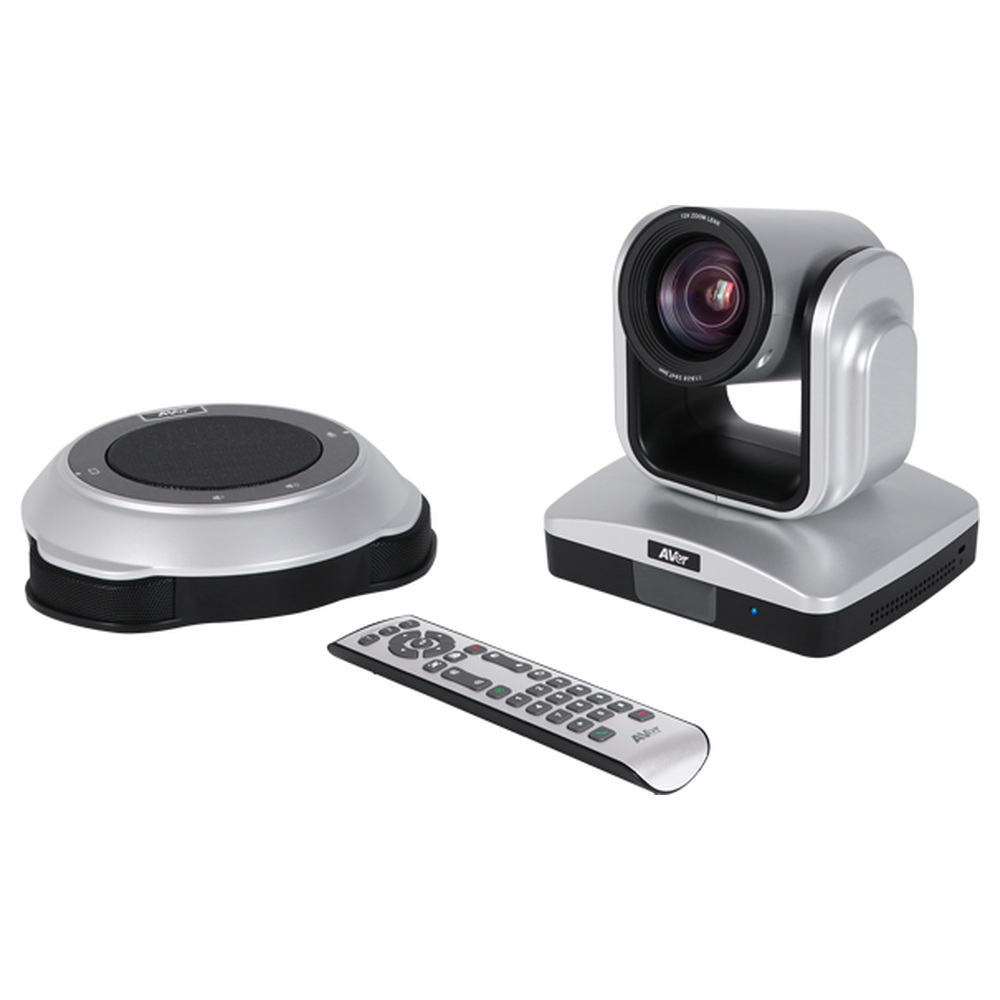

The AVer VC520+ brings a PTZ camera and separate speakerphone to meeting rooms that use a computer-based conferencing application. Full HD video, 12× optical zoom and camera presets help frame participants without repositioning the entire system.
The speakerphone combines three microphones with echo cancellation and noise suppression. A second compatible speakerphone may be added separately through the supported daisy-chain arrangement. The listed kit includes the camera, primary speakerphone, remote, power supply and connection/mounting accessories described above.
Connect the system to a compatible host computer and conferencing application through USB. It is not a standalone SIP PBX or conference telephone. Confirm current operating-system and application compatibility for the intended host. Individual component weights are documented, but a complete kit net weight has not been verified.
