IKCOM (Canada) 12C Outdoor Single Mode 9/125 Armoured Fiber Optic Cable PE Per Meter - IK-FOC-GYXTW-12-09P price in srilanka

Key features

12

Fibre count

Single-mode

Fibre mode

9/125 µm

Fibre size

Outdoor

Environment

IKCOM (Canada) 12C Outdoor Single Mode 9/125 Armoured Fiber Optic Cable PE Per Meter – IK-FOC-GYXTW-12-09P

The IKCOM (Canada) IK-FOC-GYXTW-12-09P is a 12-core outdoor fibre optic cable with Single Mode 9/125 µm fibres and a PE outer jacket. Its armoured construction supports outdoor optical cabling; select compatible termination components and optical equipment for the intended link.

Price shown is per meter.

රු 1,000.00

Need help completing your online order?We’re here to help you, step by step.

Not sure what to do next? Whether you need help choosing the right product, entering your delivery details or completing payment, our team is ready to help. Follow the steps below, or message us on WhatsApp and tell us where you’re stuck.

  1. Choose & add to cartCheck the model, specifications and warranty. Choose your options and quantity, then select Add to cart.
  2. Review your cartCheck items and quantities. Select Update cart after changes, then Proceed to checkout.
  3. Enter your detailsAdd your name, full address, town/city, postcode, phone and email. Untick Ship to a different address? if delivery is to your billing address.
  4. Review & payCheck delivery charges and your final total. Select Direct Pay, choose Place order and follow the payment instructions.
  5. Save your confirmationReturn to Richcom after payment. Keep your order number and check your confirmation email, including spam or junk. We will WhatsApp you the courier tracking code after your order has been dispatched.

Payment: Visa, MasterCard, Amex, Frimi, Ipay and Lanka-QR are listed via DirectPay. Options may vary on the payment screen. Cash on Delivery is not available.

If payment was deducted but confirmation is missing, contact us before retrying. Need installation? Use the separate appointment option on eligible products; fixing charges may apply.

Show me the checkout screens

These are real Richcom checkout screenshots, shown in black and white for easy reading and printing. Your product and total will be different.

1. Review your cartCheck your totals, then choose Proceed to checkout.
Real Richcom cart screen for online checkout
2. Add your delivery detailsComplete the required fields. Untick Ship to a different address? if we should deliver to your billing address.
Real Richcom billing screen for online checkout
3. Review and start paymentReview the total, then select Place order and follow DirectPay.
Real Richcom payment screen for online checkout
Download PDF guideHelp me complete my order

Specifications

Specification Details
Brand IKCOM
Brand origin / headquarters Canada
Model IK-FOC-GYXTW-12-09P
Supplier item number 31304
Fibre count 12
Fibre type Single Mode
Nominal fibre size 9/125 µm
Intended environment Outdoor
Outer jacket PE
Cable construction Central loose tube, corrugated steel tape and two parallel steel wires
Outer diameter 8 ± 0.3 mm
Nominal cable mass 70 kg/km
Operating temperature −40°C to +60°C
Tensile load (short / long term) 1500 / 600 N
Crush load (short / long term) 1000 / 300 N
Minimum bend radius (short / long term) 20 × D / 10 × D, where D is the cable diameter
Net cable weight per meter 0.070 kg (packaging excluded)
Price basis Per meter

Key Features

  • 12 optical fibres: provides separate fibre paths for a structured cabling installation.
  • Single Mode compatibility: choose matching 9/125 µm termination components and optical equipment.
  • PE outer sheath: covers the cable assembly for its specified outdoor application.
  • Armoured construction: adds mechanical protection around the optical fibre assembly.
  • Per-meter pricing: makes the cable cost basis clear when planning a run.

Product Information

The IKCOM IK-FOC-GYXTW-12-09P is a 12-fibre single mode cable for outdoor optical cabling. Its 9/125 µm fibre format should be matched to compatible pigtails, connectors and transceivers. Fibre count describes the individual optical paths inside the cable; it does not represent a choice of cable lengths.

The armoured construction is intended for outdoor cable routing where the optical assembly needs added physical protection. Select ducts, supports and termination enclosures to suit the installation. Armour alone does not establish suitability for every direct-burial or self-supporting aerial application.

This listing is for bulk cable. Pre-fitted connectors, optical modules, patch panels and installation hardware are not listed as included. Link speed and usable distance depend on the complete optical link, including the transceivers, terminations, splices and loss budget.

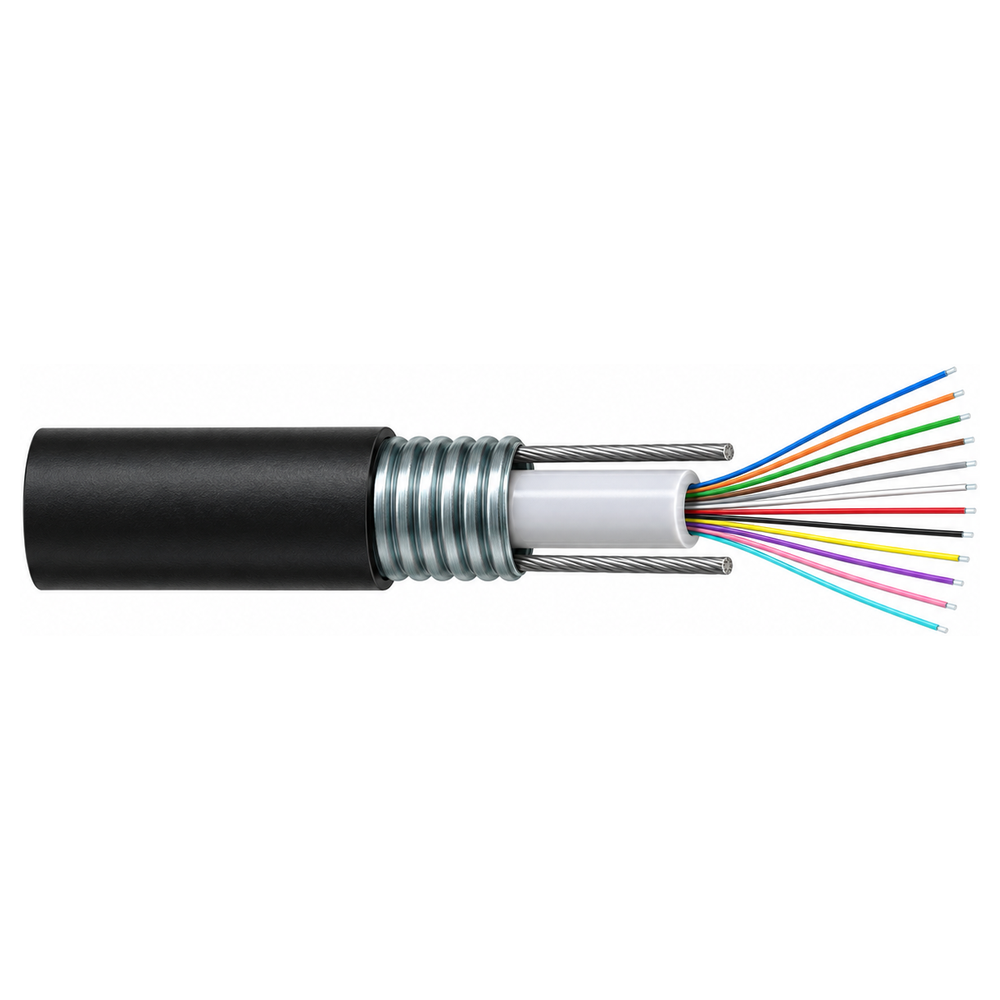

The displayed price is for one meter of cable. The illustration shows cable construction and does not indicate a supplied cut length.

Delivery: Island wide Ultra Delivery.

Explore The Definitive Guide to Fiber Optic Cables in Sri Lanka: Powering the Nation’s Digital Backbone.

Weight 0.07 kg
