Specifications
| Specification | Details |
|---|---|
| Brand | IKCOM |
| Brand origin / headquarters | Canada |
| Model | IK-FOC-GYXTW-08-MM |
| Supplier item number | 31383 |
| Fibre count | 8 |
| Fibre type | Multimode OM4 |
| Nominal fibre size | 50/125 µm |
| Intended environment | Outdoor |
| Outer jacket | PE |
| Matching manufacturer ordering code | IK-FOC-GYXTW-08-M4P |
| Cable construction | Central loose tube, corrugated steel tape and two parallel steel wires |
| Outer diameter | 8 ± 0.3 mm |
| Nominal cable mass | 70 kg/km |
| Operating temperature | −40°C to +60°C |
| Tensile load (short / long term) | 1500 / 600 N |
| Crush load (short / long term) | 1000 / 300 N |
| Minimum bend radius (short / long term) | 20 × D / 10 × D, where D is the cable diameter |
| Net cable weight per meter | 0.070 kg (packaging excluded) |
| Price basis | Per meter |
Key Features
- 8 optical fibres: provides separate fibre paths for a structured cabling installation.
- Multimode OM4 compatibility: choose matching 50/125 µm termination components and optical equipment.
- PE outer sheath: covers the cable assembly for its specified outdoor application.
- Armoured construction: adds mechanical protection around the optical fibre assembly.
- Per-meter pricing: makes the cable cost basis clear when planning a run.
Product Information
The IKCOM IK-FOC-GYXTW-08-MM is a 8-fibre multimode om4 cable for outdoor optical cabling. Its 50/125 µm fibre format should be matched to compatible pigtails, connectors and transceivers. Fibre count describes the individual optical paths inside the cable; it does not represent a choice of cable lengths.
The armoured construction is intended for outdoor cable routing where the optical assembly needs added physical protection. Select ducts, supports and termination enclosures to suit the installation. Armour alone does not establish suitability for every direct-burial or self-supporting aerial application.
This listing is for bulk cable. Pre-fitted connectors, optical modules, patch panels and installation hardware are not listed as included. Link speed and usable distance depend on the complete optical link, including the transceivers, terminations, splices and loss budget.

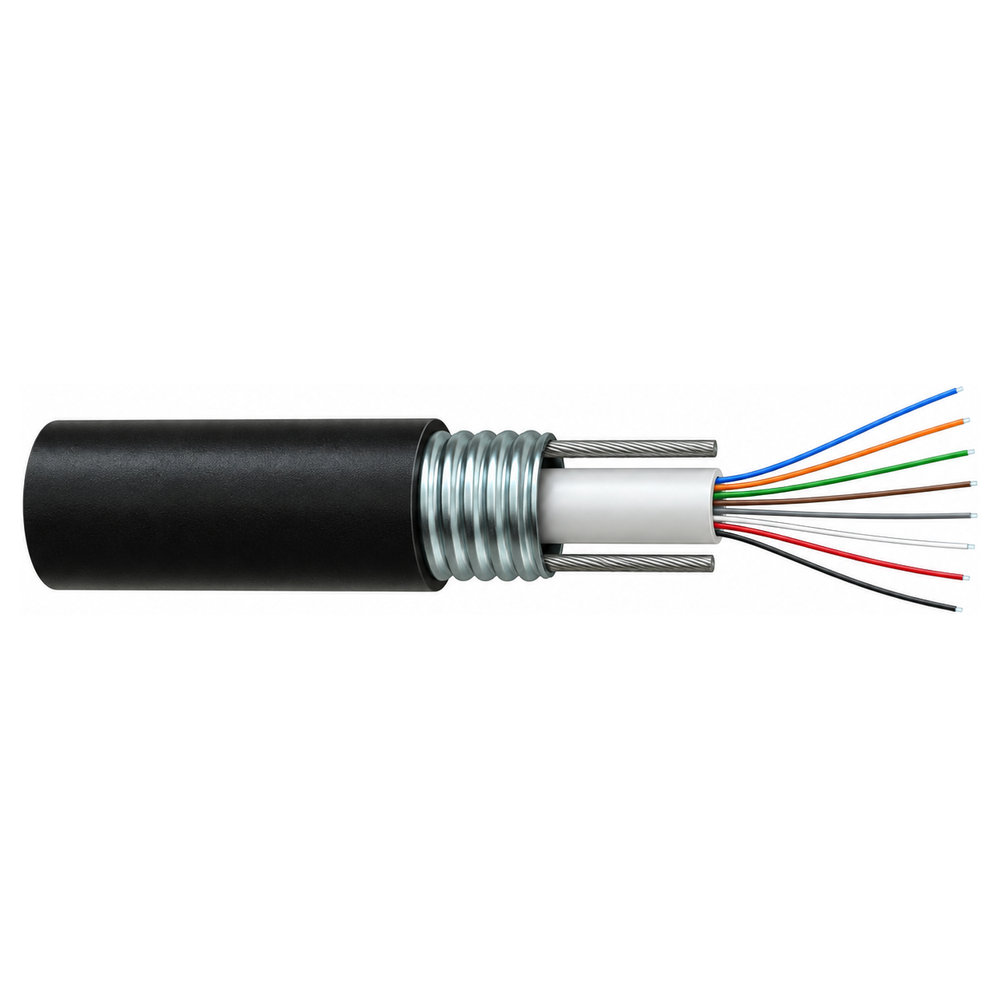

The displayed price is for one meter of cable. The illustration shows cable construction and does not indicate a supplied cut length.
Delivery: Island wide Ultra Delivery.
